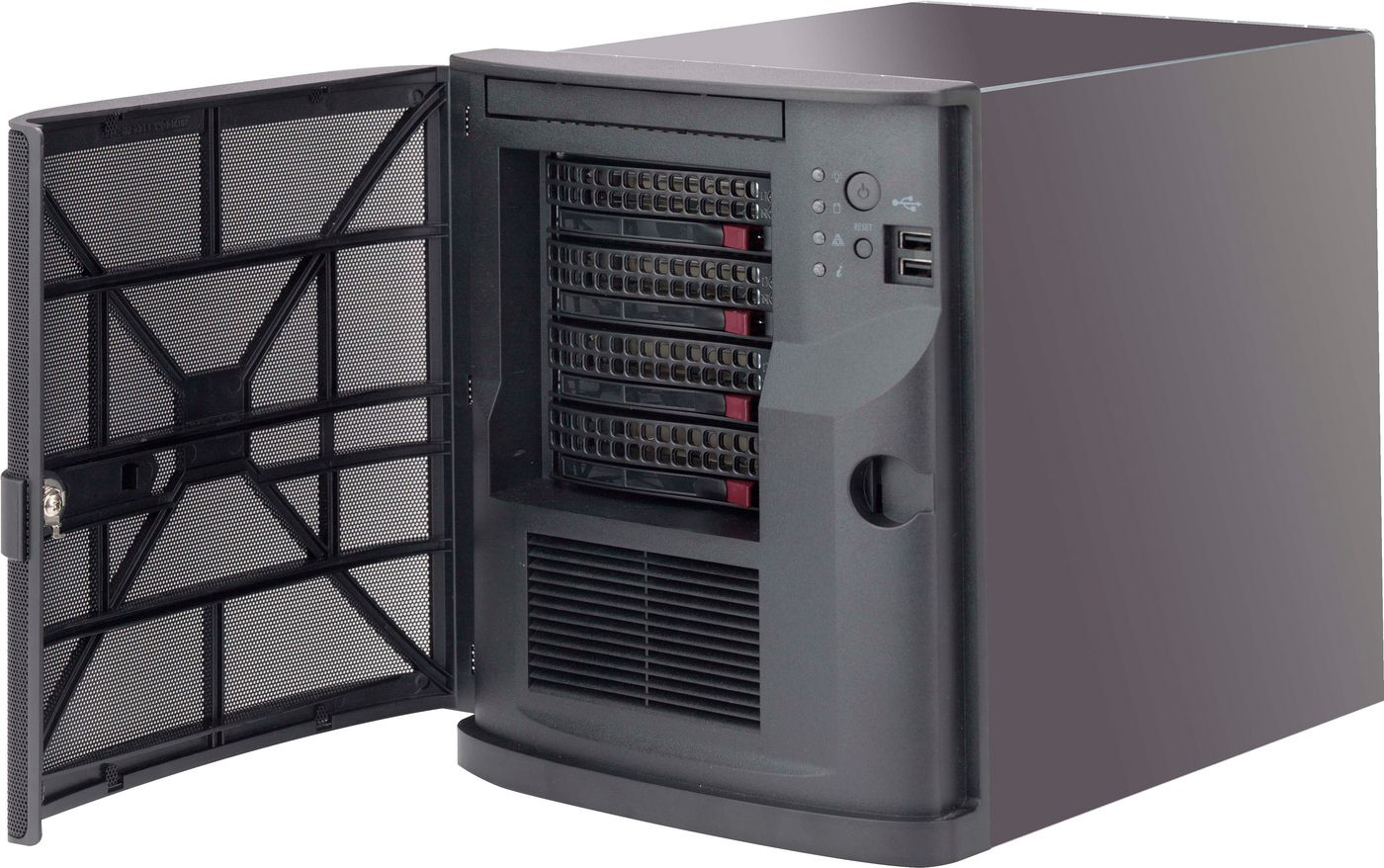

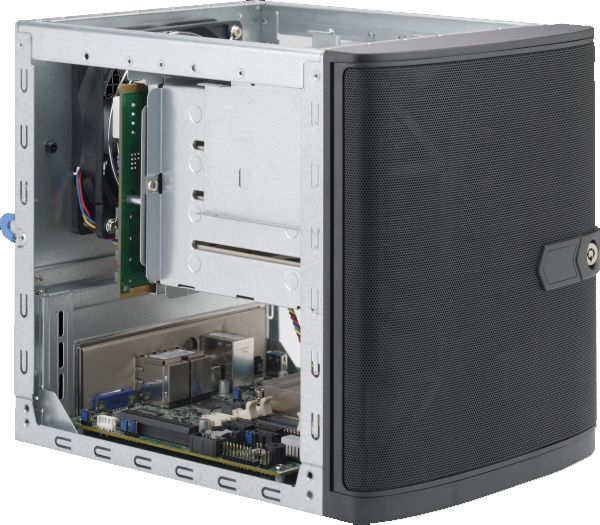

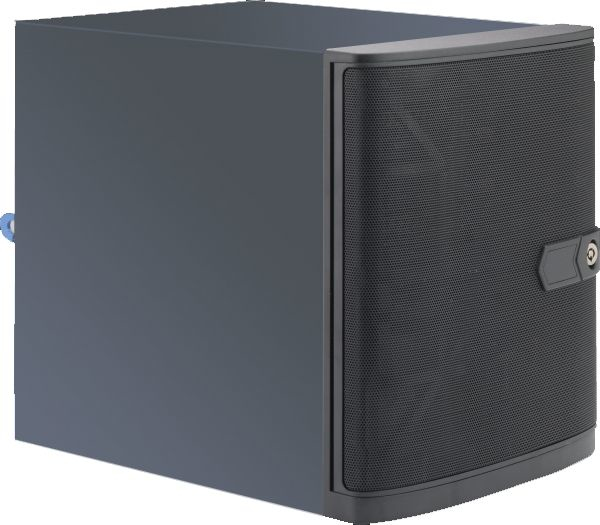

-BX-I5-16-C4 server Cube Intel® Core™ i5
4.4 GHz 16 GB 350 W
Model SERVER-BX-I5-16-C4EAN 5715063279779
46 specifications
- ProcessorIntel® Core™ i5
- Memory16 GB
- Storage500 GB
- TypeCube
- Weight8 kg
- Processor manufacturerIntel
Overview
- Processor
- Intel® Core™ i5
- Memory
- 16 GB
- Storage
- 500 GB
- Type
- Cube
- Weight
- 8 kg
- Processor manufacturer
- Intel
- Brand
- Ernitec
- Category
- Server
- Model
- SERVER-BX-I5-16-C4
- Part number
- SERVER-BX-I5-16-C4
- EAN / UPC
- 5715063279779
- Also known as
- Ernitec -BX-I5-16-C4 server Cube Intel® Core™ i5 4.4 GHz 16 GB 350 W
Specifications
46 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor frequency | 4.4 GHz |
| Processor cores | 6 |
| Thermal Design Power (TDP) | 65 W |
| Processor socket | LGA 1700 |
| Processor threads | 12 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Buffered memory type | Unregistered (unbuffered) |
| Memory clock speed | 4400 MHz |
| Memory layout (slots x size) | 2 x 8 GB |
Storage
| Specification | Value |
|---|---|
| Number of HDDs supported | 4 |
| Supported HDD sizes | 3.5" |
| SSD capacity | 500 GB |
| RAID levels | 0 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Intel UHD Graphics 730 |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel I225-LM |

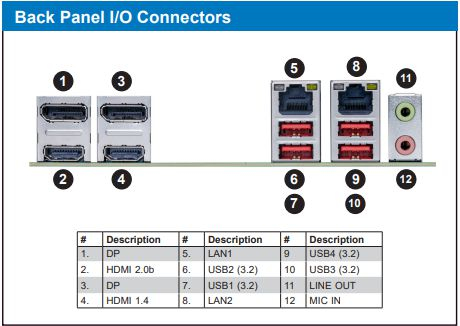

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Cube |
Performance
| Specification | Value |
|---|---|
| BIOS type | UEFI |
| Trusted Platform Module (TPM) version | 2.0 |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 10/11, Windows Server 2022 |
Power
| Specification | Value |
|---|---|
| Number of power supply units | 1 |
| Power supply | 350 W |
| Number of main power supplies | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 210 mm |
| Depth | 280 mm |
| Height | 240 mm |
| Weight | 8 kg |
| Package width | 320 mm |
| Package depth | 410 mm |
| Package height | 350 mm |
| Package weight | 9 kg |
Technical details
| Specification | Value |
|---|---|
| Number of 3.5" bays | 4 |
| Number of storage drives supported | 4 |
| 2.5" HDD support | 2 |
| 3.5" HDD support | 4 |
Other features
| Specification | Value |
|---|---|
| Form factor | Cube |
| Number of DIMM slots | 2 |
| Number of SATA connectors | 5 |
| Number of drive bays | 4 |
| RAID controller type | Software RAID |
| Warranty period | 5 year(s) |
