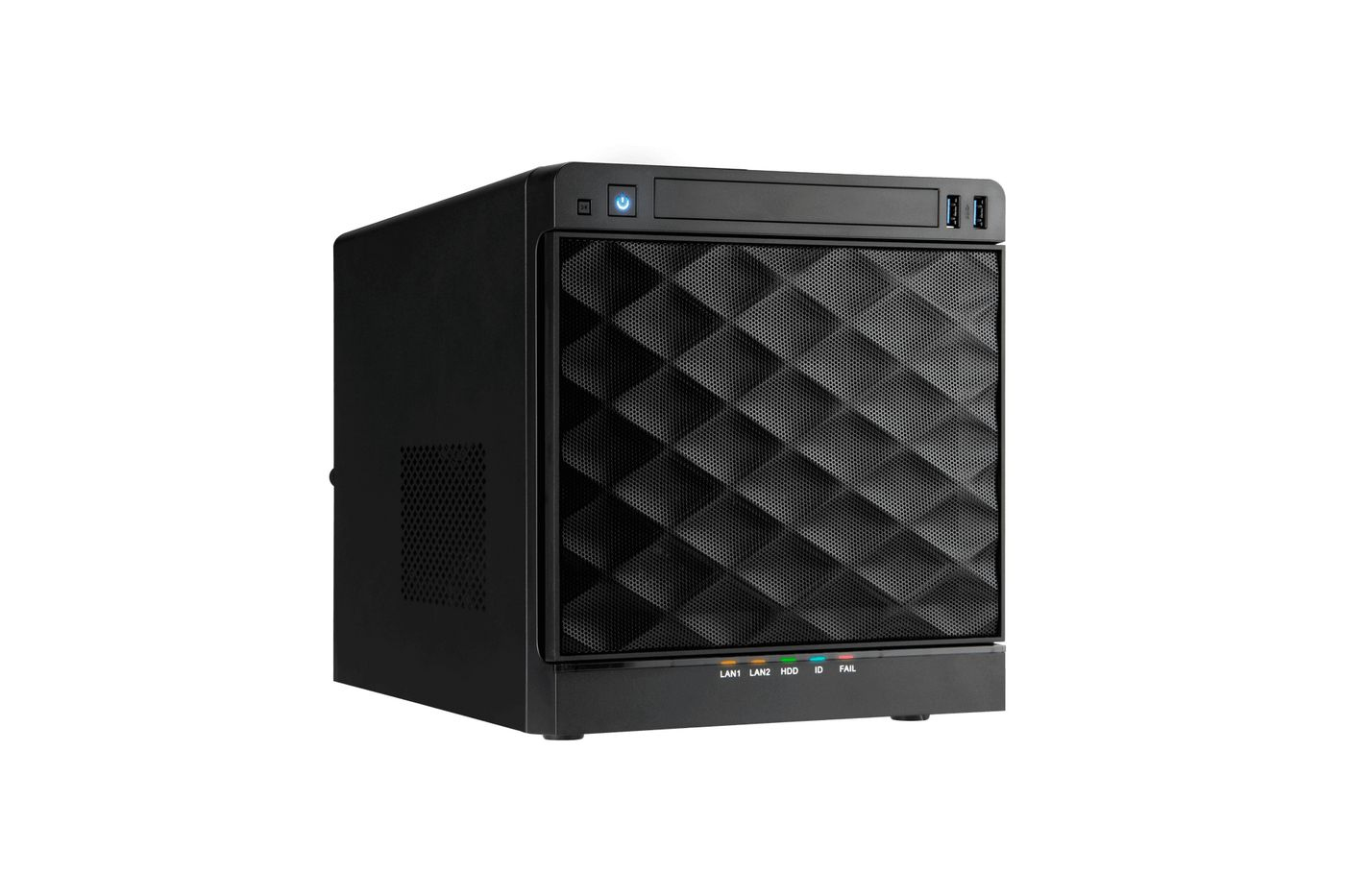

SC-I74R-HW server Cube Intel® Core™ i7 i7-12700
4.9 GHz 16 GB 350 W Windows 11 Pro
Model SC-I74R-HWEAN 5715328320512
84 specifications
- ProcessorIntel® Core™ i7
- Memory16 GB
- Storage500 GB
- OSWindows 11 Pro
- Weight8 kg
- Processor manufacturerIntel
Overview
- Processor
- Intel® Core™ i7
- Memory
- 16 GB
- Storage
- 500 GB
- OS
- Windows 11 Pro
- Weight
- 8 kg
- Processor manufacturer
- Intel
- Brand
- Ernitec
- Category
- Server
- Model
- SC-I74R-HW
- Part number
- SC-I74R-HW
- EAN / UPC
- 5715328320512
- Also known as
- Ernitec SC-I74R-HW server Cube Intel® Core™ i7 i7-12700 4.9 GHz 16 GB 350 W Windows 11 Pro
Specifications
84 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 12th gen Intel® Core™ i7 |
| Processor model | i7-12700 |
| Processor frequency | 4.9 GHz |
| Performance-core base frequency | 2.1 GHz |
| Performance cores | 8 |
| Processor cores | 12 |
| Thermal Design Power (TDP) | 65 W |
| Processor cache type | Smart Cache |
| Processor socket | LGA 1700 |
| Processor threads | 20 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Buffered memory type | Unregistered (unbuffered) |
| ECC | No |
| Memory clock speed | 4400 MHz |
| Memory layout (slots x size) | 2 x 8 GB |
Storage
| Specification | Value |
|---|---|
| HDD capacity | 500 GB |
| Number of HDDs supported | 4 |
| Supported HDD sizes | 3.5" |
| SSD capacity | 500 GB |
| NVMe | Yes |
| SSD interface | PCI Express |
| SSD size | M.2 |
| RAID support | Yes |
| RAID levels | 0 |
| RAID controller cache | 1 GB |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card model | Intel UHD Graphics 770 |
| On-board graphics card 4K support | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel I225-LM |
| Wake-on-LAN ready | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Cube |
| Rack mounting | No |
| Rack rails | No |
Performance
| Specification | Value |
|---|---|
| Remote administration | NO |
| BIOS type | UEFI |
| On-site support | No |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
| Compatible operating systems | Windows 10/11, Windows Server 2022 |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Active Management Technology (Intel® AMT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Smart Cache | Yes |
| Processor ARK ID | 134591 |
Power
| Specification | Value |
|---|---|
| Power supply | 350 W |
| Number of main power supplies | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 320 mm |
| Depth | 410 mm |
| Height | 350 mm |
| Weight | 8 kg |
| Package width | 320 mm |
| Package depth | 410 mm |
| Package height | 350 mm |
| Package weight | 9 kg |
Packaging content
| Specification | Value |
|---|---|
| Keyboard included | No |
| Mouse included | No |
Technical details
| Specification | Value |
|---|---|
| Number of 3.5" bays | 4 |
| Number of storage drives supported | 4 |
| 2.5" HDD support | 2 |
| 3.5" HDD support | 4 |
| Supported RAID configuration | RAID0, RAID1, RAID5, RAID6, RAID10 & HS |
Other features
| Specification | Value |
|---|---|
| Controller type | Broadcom 9361 HW RAID Controller |
| Hot-swap HDD bays | Yes |
| Integrated BMC with IPMI | No |
| Memory slots (available) | 0 |
| Number of DIMM slots | 2 |
| Number of SATA connectors | 5 |
| S.M.A.R.T. support | Yes |
| Number of drive bays | 4 |
| RAID controller type | Hardware RAID |
| Warranty period | 5 year(s) |
