SC-I7-16-HW-W11P server
512 GB Cube i7-12700 16 GB 265 W Windows 11 Pro
Model SC-I7-16-HW-W11PEAN 5715328377011
65 specifications
- Processori7-12700
- Memory16 GB
- Storage512 GB
- OSWindows 11 Pro
- Weight5.43 kg
- Discrete graphics cardNo
Overview
- Processor
- i7-12700
- Memory
- 16 GB
- Storage
- 512 GB
- OS
- Windows 11 Pro
- Weight
- 5.43 kg
- Discrete graphics card
- No
- Brand
- Ernitec
- Category
- Server
- Model
- SC-I7-16-HW-W11P
- Part number
- SC-I7-16-HW-W11P
- EAN / UPC
- 5715328377011
- Also known as
- Ernitec SC-I7-16-HW-W11P server 512 GB Cube i7-12700 16 GB 265 W Windows 11 Pro
Specifications
65 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor model | i7-12700 |
| Efficient-core base frequency | 1.6 GHz |
| Performance-core base frequency | 2.1 GHz |
| Efficient-core Max Turbo Frequency | 3.6 GHz |
| Performance-core Max Turbo Frequency | 4.9 GHz |
| Performance cores | 8 |
| Efficient cores | 4 |
| Processor cores | 12 |
| Processor cache | 25 MB |
| Processor cache type | Smart Cache |
| Processor socket | LGA 1700 |
| Processor threads | 20 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Buffered memory type | Unregistered (unbuffered) |
| ECC | No |
| Memory layout (slots x size) | 2 x 8 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| HDD capacity | 512 GB |
| Supported HDD sizes | 2.5" |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| NVMe | Yes |
| SSD interface | PCI Express |
| SSD size | M.2 |
| RAID support | Yes |
| RAID levels | 0 |
| Supported storage drive interfaces | Serial ATA III |
| RAID controller cache | 1 GB |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card family | Intel® Graphics |
| On-board graphics card model | Intel® Graphics |
| Number of displays supported (on-board graphics) | 2 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Ethernet interface type | Gigabit Ethernet |

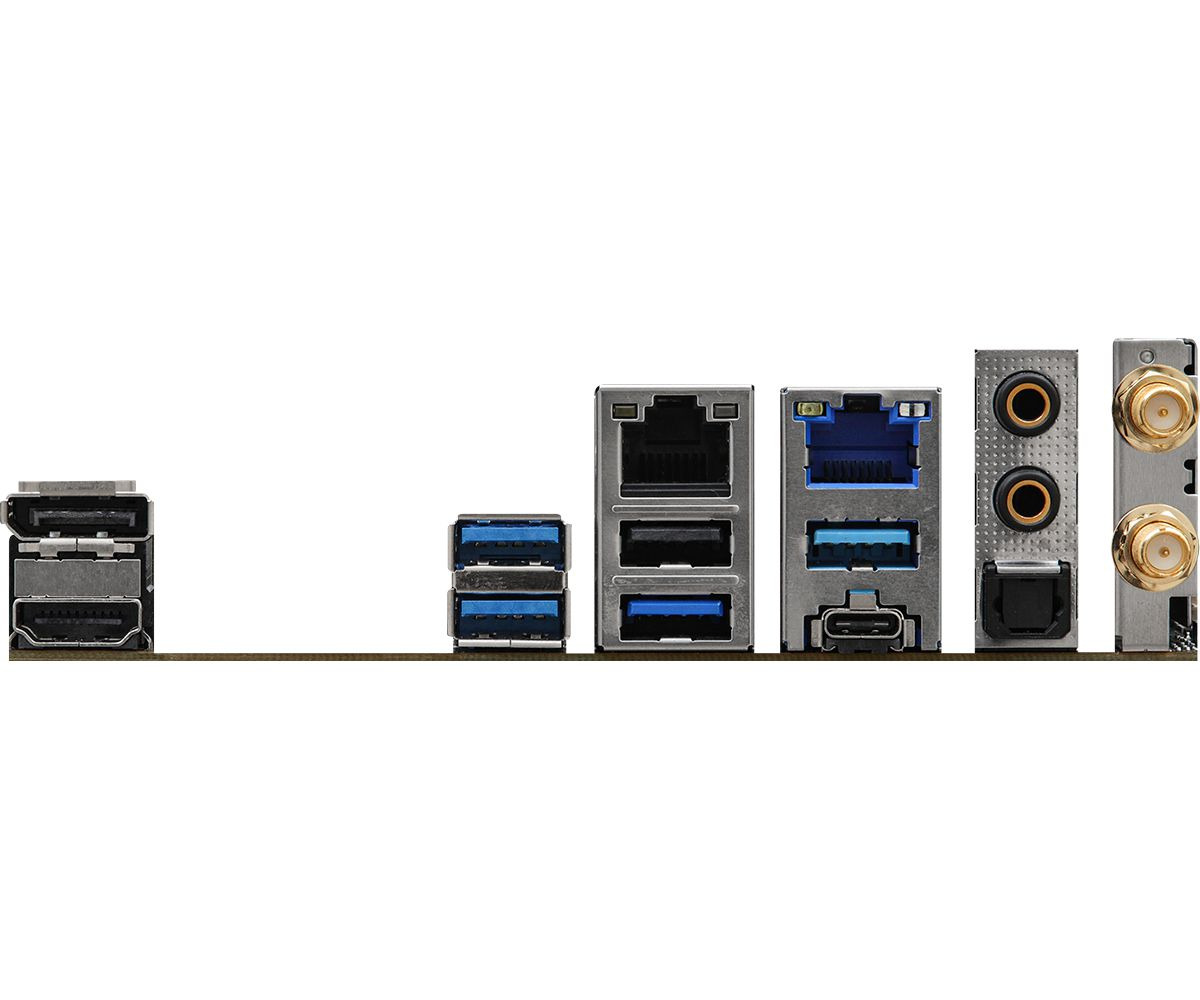

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 5.x) slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Cube |
| Cooling type | Active |
| Motherboard form factor | mini ITX |
| Rack mounting | No |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
| Compatible operating systems | Windows 11 Pro |
| Operating system language | English |
Power
| Specification | Value |
|---|---|
| Power supply | 265 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 290 mm |
| Depth | 330 mm |
| Height | 390 mm |
| Weight | 5.43 kg |
| Package width | 290 mm |
| Package depth | 330 mm |
| Package height | 390 mm |
| Package weight | 6.52 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | Power |
| Mouse included | Yes |
Technical details
| Specification | Value |
|---|---|
| Number of 3.5" bays | 4 |
| Number of storage drives supported | 4 |
| 2.5" HDD support | 4 |
| 3.5" HDD support | 4 |
Other features
| Specification | Value |
|---|---|
| Hot-swap HDD bays | Yes |
| Number of drive bays | 4 |
| RAID controller type | Broadcom 9361-4I |
| Warranty period | 3 year(s) |
