Cube 4 Bay Workstation - WC-CU74R-HW
Model Cube 4 Bay Workstation - WC-CU74R-HWPart no. WC-CU74R-HWEAN 5715328362338
71 specifications
- Processor265
- Memory16 GB
- Storage500 GB
- OSWindows 11 Pro
- Weight6 kg
- Discrete graphics cardNo
Overview
- Processor
- 265
- Memory
- 16 GB
- Storage
- 500 GB
- OS
- Windows 11 Pro
- Weight
- 6 kg
- Discrete graphics card
- No
- Brand
- Ernitec
- Category
- Server
- Model
- Cube 4 Bay Workstation - WC-CU74R-HW
- Part number
- WC-CU74R-HW
- EAN / UPC
- 5715328362338
- Also known as
- Ernitec Cube 4 Bay Workstation - WC-CU74R-HW server 265 16 GB DDR5-SDRAM 315 W Windows 11 Pro
Specifications
71 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor model | 265 |
| Efficient-core base frequency | 1.8 GHz |
| Performance-core base frequency | 2.4 GHz |
| Efficient-core Max Turbo Frequency | 4.6 GHz |
| Performance-core Max Turbo Frequency | 5.2 GHz |
| Performance cores | 8 |
| Efficient cores | 12 |
| Performance-core boost frequency | 5.3 GHz |
| Processor cores | 20 |
| Processor cache | 36 MB |
| Motherboard chipset | Intel B860 |
| Processor cache type | Smart Cache |
| Processor socket | LGA 1851 (Socket V1) |
| Processor threads | 20 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR5-SDRAM |
| ECC | No |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory data transfer rate | 5600 MT/s |
| Maximum internal memory | 128 GB |
Storage
| Specification | Value |
|---|---|
| HDD capacity | 500 GB |
| Number of HDDs supported | 4 |
| Number of SSDs installed | 2 |
| SSD capacity | 500 GB |
| NVMe | Yes |
| SSD interface | PCI Express |
| RAID support | Yes |
| RAID levels | 0 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® Graphics |
| On-board graphics card model | Intel® Graphics |
| Number of displays supported (on-board graphics) | 2 |
| On-board graphics card 4K support | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Ethernet LAN | Yes |
| LAN controller | Dragon RTL8125BG |

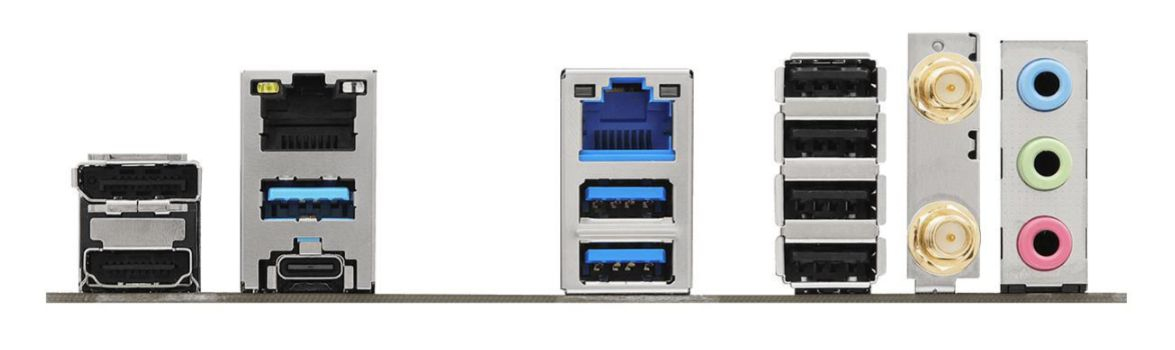

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 5.x) slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Cube |
| Cooling type | Active |
| Motherboard form factor | mini ITX |
| Rack mounting | No |
Performance
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
| Compatible operating systems | Windows 11 |
| Operating system language | Multilingual |
Processor special features
| Specification | Value |
|---|---|
| Processor ARK ID | 241068 |
Power
| Specification | Value |
|---|---|
| Power supply | 315 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 290 mm |
| Depth | 330 mm |
| Height | 390 mm |
| Weight | 6 kg |
| Package width | 290 mm |
| Package depth | 330 mm |
| Package height | 390 mm |
| Package weight | 8 kg |

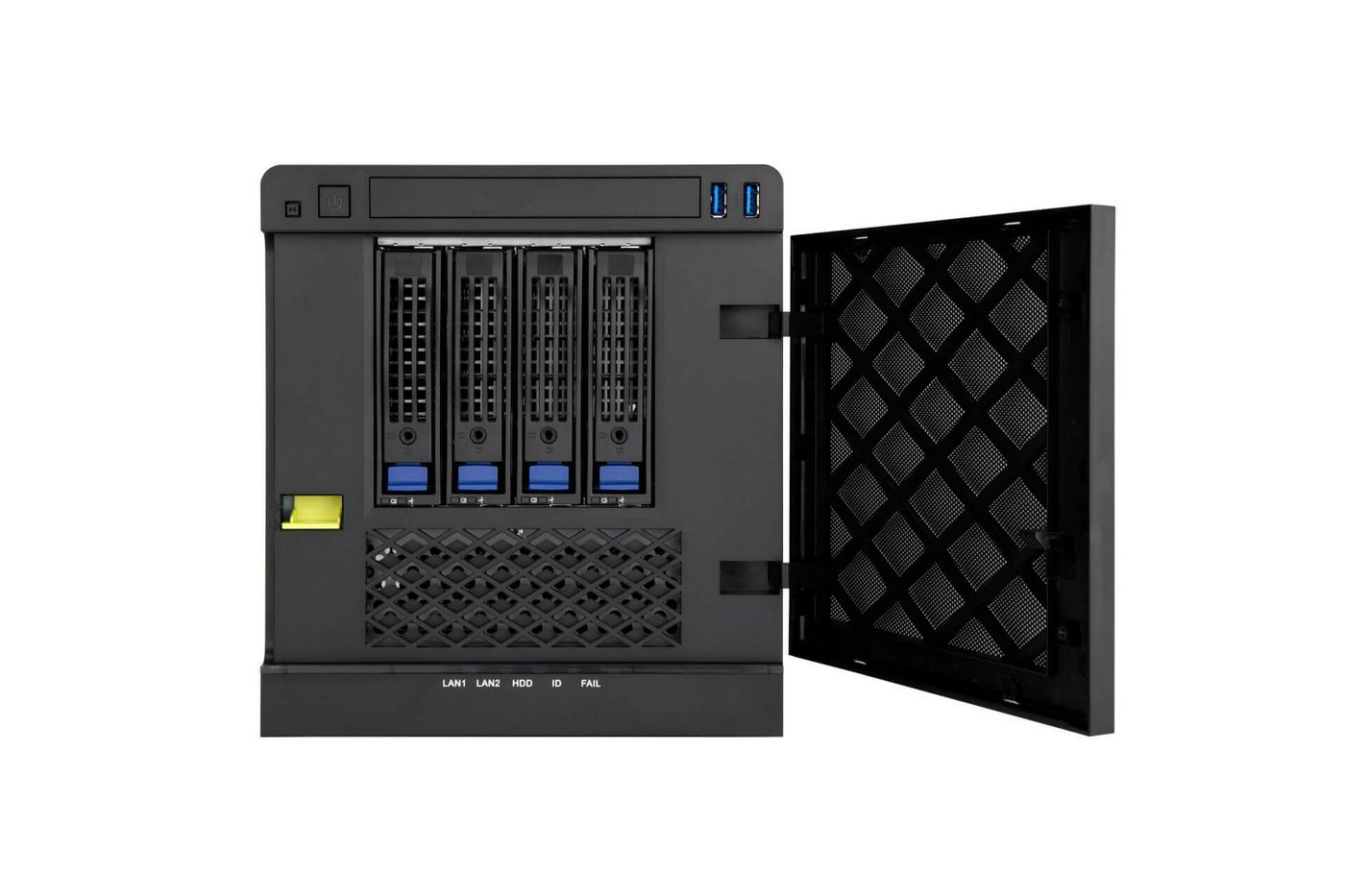

Technical details
| Specification | Value |
|---|---|
| Number of 3.5" bays | 4 |
Other features
| Specification | Value |
|---|---|
| Graphics card family | Intel |
| Number of drive bays | 4 |
| RAID controller type | Broadcom 9361-8i |
| Warranty period | 3 year(s) |
