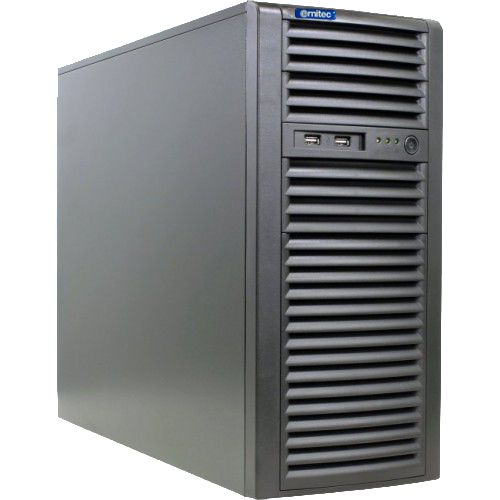

CORE-CLIENT-T1 server
480 GB Tower Intel® Core™ i5 2.9 GHz 16 GB DDR4-SDRAM 300 W Windows 10 Pro
Model CORE-CLIENT-T1EAN 5704174253563
86 specifications
- ProcessorIntel® Core™ i5
- Memory16 GB
- Storage480 GB
- GraphicsNVIDIA® GeForce® GT 1030
- OSWindows 10 Pro
- Weight10.9 kg
Overview
- Processor
- Intel® Core™ i5
- Memory
- 16 GB
- Storage
- 480 GB
- Graphics
- NVIDIA® GeForce® GT 1030
- OS
- Windows 10 Pro
- Weight
- 10.9 kg
- Brand
- Ernitec
- Category
- Server
- Model
- CORE-CLIENT-T1
- Part number
- CORE-CLIENT-T1
- EAN / UPC
- 5704174253563
- Also known as
- Ernitec CORE-CLIENT-T1 server 480 GB Tower Intel® Core™ i5 2.9 GHz 16 GB DDR4-SDRAM 300 W Windows 10 Pro
Specifications
86 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 9th gen Intel® Core™ i5 |
| Processor frequency | 2.9 GHz |
| Processor boost frequency | 4.1 GHz |
| Processor cores | 6 |
| Processor cache | 9 MB |
| Memory channels supported by processor | Dual |
| Number of processors installed | 1 |
| ECC supported by processor | No |
| Execute Disable Bit | Yes |
| Memory clock speeds supported by processor | 2667 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Scalability | 1S |
| Intelligent Platform Management Interface (IPMI) support | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | No |
| Memory clock speed | 2666 MHz |
| Memory layout (slots x size) | 2 x 8 GB |
| Maximum internal memory | 128 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 480 GB |
| Number of HDDs supported | 4 |
| Supported HDD sizes | 3.5" |
| Number of SSDs installed | 1 |
| SSD capacity | 500 GB |
| SSD interface | M.2, SATA, Serial Attached SCSI (SAS) |
| RAID support | Yes |
| Hot-swap | No |
| Internal drive bays | 4 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA® GeForce® GT 1030 |
| Discrete graphics card memory | 2 GB |
| On-board graphics card | Yes |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel® UHD Graphics 630 |
| Maximum graphics card memory | 64000 MB |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Wake-on-LAN ready | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| BIOS type | UEFI |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
| Operating system language | Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Norwegian |
| Bundled software | SuperDoctor 5 |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel HD Graphics | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Quick Sync Video Technology | Yes |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | No |
| Power supply | 300 W |
| Number of main power supplies | 1 |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 8 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 184 mm |
| Depth | 425 mm |
| Height | 362 mm |
| Weight | 10.9 kg |
| Package width | 279 mm |
| Package depth | 533 mm |
| Package height | 508 mm |
| Package weight | 11 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
Technical details
| Specification | Value |
|---|---|
| Number of storage drives supported | 4 |
| 3.5" HDD support | 4 |
Other features
| Specification | Value |
|---|---|
| Graphics card family | NVIDIA |
| Hot-swap HDD bays | No |
| Integrated BMC with IPMI | No |
| Integrated LAN | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-x |
| Number of DIMM slots | 4 |
| Number of SATA connectors | 6 |
| S.M.A.R.T. support | Yes |
| Number of drive bays | 4 |
| Warranty period | 3 year(s) |
