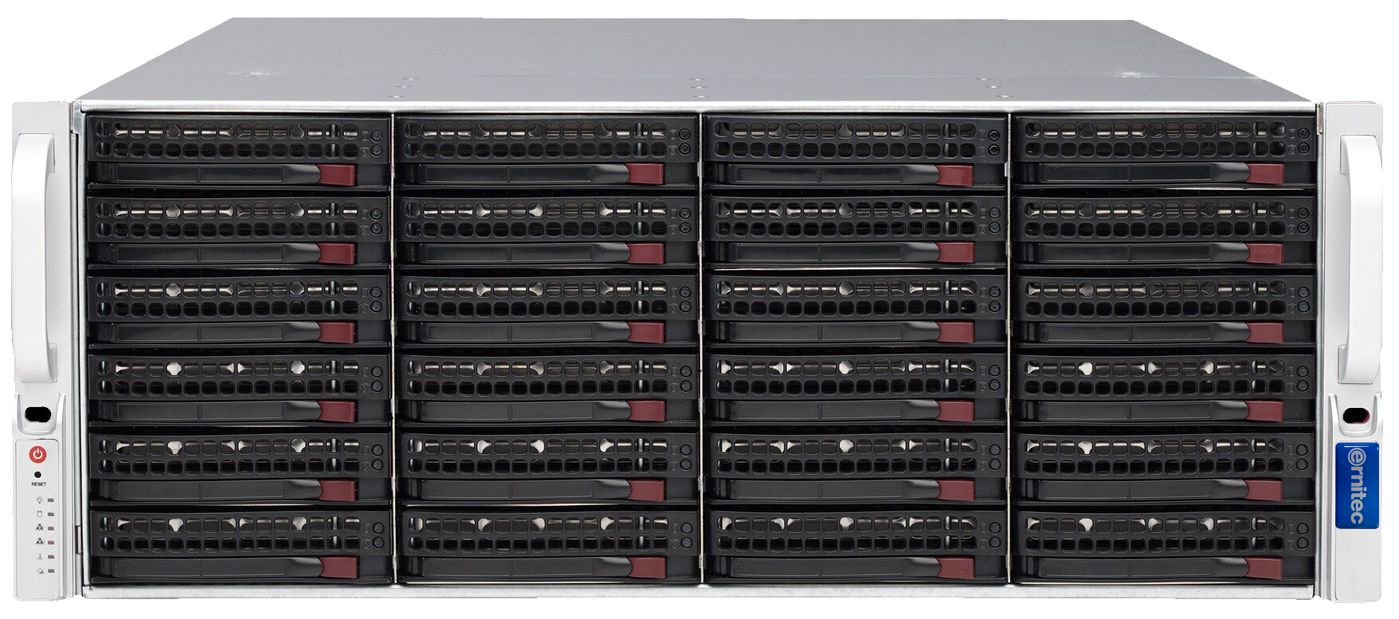

CORE-5424-V2 server
500 GB Rack (4U) Intel Xeon Silver 4210 2.2 GHz 16 GB DDR4-SDRAM 1200 W Windows 10 Pro
Model CORE-5424-V2EAN 5715063093887
90 specifications
- ProcessorIntel Xeon Silver
- Memory16 GB
- Storage500 GB
- OSWindows 10 Pro
- Weight36 kg
- ColourBlack
Overview
- Processor
- Intel Xeon Silver
- Memory
- 16 GB
- Storage
- 500 GB
- OS
- Windows 10 Pro
- Weight
- 36 kg
- Colour
- Black
- Brand
- Ernitec
- Category
- Server
- Model
- CORE-5424-V2
- Part number
- CORE-5424-V2
- EAN / UPC
- 5715063093887
- Also known as
- Ernitec CORE-5424-V2 server 500 GB Rack (4U) Intel Xeon Silver 4210 2.2 GHz 16 GB DDR4-SDRAM 1200 W Windows 10 Pro
Specifications
90 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Silver |
| Processor generation | 2nd Generation Intel® Xeon® Scalable |
| Processor model | 4210 |
| Processor frequency | 2.2 GHz |
| Processor boost frequency | 3.2 GHz |
| Processor cores | 10 |
| Processor cache | 13.75 MB |
| Motherboard chipset | Intel® C621 |
| Number of processors installed | 1 |
| ECC supported by processor | Yes |
| Execute Disable Bit | Yes |
| Processor socket | LGA 3647 (Socket P) |
| Scalability | 2S |
| Intelligent Platform Management Interface (IPMI) support | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Buffered memory type | Registered (buffered) |
| ECC | Yes |
| Maximum internal memory | 2048 MB |
| Memory clock speed | 2666 MHz |
| Memory layout (slots x size) | 2 x 8 GB |
| Maximum internal memory | 2 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| HDD interface | SATA III, Serial Attached SCSI (SAS) |
| Number of HDDs supported | 24 |
| Number of SSDs installed | 1 |
| SSD capacity | 500 GB |
| NVMe | Yes |
| SSD interface | M.2 |
| Number of SSDs supported | 1 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10 |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Internal drive bays | 24 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card 4K support | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® X722, Marvell 88E1512 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Number of SATA III connectors | 10 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 slots | 1 |
| PCI Express x8 slots | 3 |
| PCI Express x16 slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (4U) |
| Product colour | Black |
| Rack mounting | Yes |
| Rack rails | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
| Operating system language | Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Norwegian |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel HD Graphics | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Quick Sync Video Technology | No |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 1200 W |
| Number of redundant power supplies installed | 2 |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 437 mm |
| Depth | 660 mm |
| Height | 178 mm |
| Weight | 36 kg |
| Package weight | 38 kg |
Technical details
| Specification | Value |
|---|---|
| Number of 3.5" bays | 24 |
| Number of storage drives supported | 24 |
| Extended warranty available for purchase (select countries) | Yes |
Other features
| Specification | Value |
|---|---|
| Graphics card family | Aspeed |
| Hot-swap HDD bays | Yes |
| Integrated BMC with IPMI | Yes |
| Integrated LAN | Yes |
| Number of DIMM slots | 8 |
| Number of SATA connectors | 10 |
| Number of processors supported | 2 |
| S.M.A.R.T. support | Yes |
| Storage drive controller | Supermicro / Avago 3108 |
| Number of drive bays | 24 |
| RAID controller type | HWRAID S3108 |
| Warranty period | 3 year(s) |
