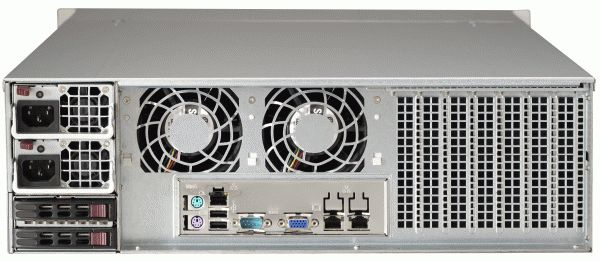

CORE-3200R-16R-V4 server Rack (3U) Intel Xeon E E-2174G
3.8 GHz 16 GB DDR4-SDRAM 1000 W Windows 10 Pro
Model CORE-3200R-16R-V4EAN 5706998899286
87 specifications
- ProcessorIntel Xeon E
- Memory16 GB
- Storage250 GB
- OSWindows 10 Pro
- Weight32.6 kg
- ColourBlack
Overview
- Processor
- Intel Xeon E
- Memory
- 16 GB
- Storage
- 250 GB
- OS
- Windows 10 Pro
- Weight
- 32.6 kg
- Colour
- Black
- Brand
- Ernitec
- Category
- Server
- Model
- CORE-3200R-16R-V4
- Part number
- CORE-3200R-16R-V4
- EAN / UPC
- 5706998899286
- Also known as
- Ernitec CORE-3200R-16R-V4 server Rack (3U) Intel Xeon E E-2174G 3.8 GHz 16 GB DDR4-SDRAM 1000 W Windows 10 Pro
Specifications
87 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon E |
| Processor model | E-2174G |
| Processor frequency | 3.8 GHz |
| Processor boost frequency | 4.7 GHz |
| Processor cores | 4 |
| Processor cache | 8 MB |
| Motherboard chipset | Intel C246 |
| Memory channels supported by processor | Dual |
| Number of processors installed | 1 |
| ECC supported by processor | No |
| Execute Disable Bit | Yes |
| Memory clock speeds supported by processor | 2667 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Scalability | 1S |
| Intelligent Platform Management Interface (IPMI) support | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | No |
| Memory clock speed | 2400 MHz |
| Memory layout (slots x size) | 2 x 8 GB |
| Maximum internal memory | 64 GB |
Storage
| Specification | Value |
|---|---|
| Number of HDDs supported | 16 |
| Supported HDD sizes | 3.5" |
| Number of SSDs installed | 1 |
| SSD capacity | 250 GB |
| NVMe | Yes |
| SSD interface | M.2 |
| RAID support | Yes |
| Hot-swap | Yes |
| Internal drive bays | 16 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics P630 |
| Maximum graphics card memory | 128000 MB |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I210-AT, Intel® I219-LM |
| Wake-on-LAN ready | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (3U) |
| Product colour | Black |
| Rack mounting | Yes |
| Rack rails | Yes |
Performance
| Specification | Value |
|---|---|
| BIOS type | UEFI |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
| Operating system language | Danish, German, Dutch, English, Spanish, Finnish, French, Italian |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel HD Graphics | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Quick Sync Video Technology | Yes |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 1000 W |
| Number of redundant power supplies installed | 2 |
| Number of main power supplies | 2 |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
| Power consumption (typical) | 920 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 8 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 437 mm |
| Depth | 647 mm |
| Height | 132 mm |
| Weight | 32.6 kg |
| Package width | 676 mm |
| Package depth | 1013 mm |
| Package height | 330 mm |
| Package weight | 32.7 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
Technical details
| Specification | Value |
|---|---|
| Number of storage drives supported | 16 |
Other features
| Specification | Value |
|---|---|
| Hot-swap HDD bays | Yes |
| Integrated BMC with IPMI | Yes |
| Integrated LAN | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-x |
| Number of DIMM slots | 4 |
| Number of SATA connectors | 8 |
| S.M.A.R.T. support | Yes |
| Number of drive bays | 16 |
| Warranty period | 3 year(s) |
