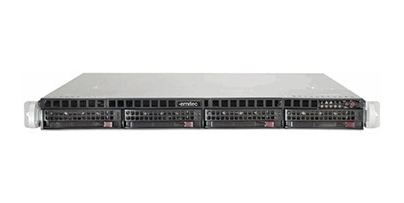

BUILD-EASY-VIEW-1 server
6.5 TB Rack Intel® Core™ i7 i7-7700 3.6 GHz 16 GB DDR4 400 W Windows 10 IoT Enterprise
Model BUILD-EASY-VIEW-1EAN 5706998781239
125 specifications
- ProcessorIntel® Core™ i7
- Memory16 GB
- Storage6.5 TB
- OSWindows 10 IoT Enterprise
- Weight21.2 kg
- ColourBlack, Silver
Overview
- Processor
- Intel® Core™ i7
- Memory
- 16 GB
- Storage
- 6.5 TB
- OS
- Windows 10 IoT Enterprise
- Weight
- 21.2 kg
- Colour
- Black, Silver
- Brand
- Ernitec
- Category
- Server
- Model
- BUILD-EASY-VIEW-1
- Part number
- BUILD-EASY-VIEW-1
- EAN / UPC
- 5706998781239
- Also known as
- Ernitec BUILD-EASY-VIEW-1 server 6.5 TB Rack Intel® Core™ i7 i7-7700 3.6 GHz 16 GB DDR4 400 W Windows 10 IoT Enterprise
Specifications
125 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 7th gen Intel® Core™ i7 |
| Processor model | i7-7700 |
| Processor frequency | 3.6 GHz |
| Processor boost frequency | 4.2 GHz |
| Processor cores | 4 |
| Processor cache | 8 MB |
| Motherboard chipset | Intel® C236 |
| Memory channels supported by processor | Dual |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 65 W |
| Processor cache type | Smart Cache |
| System bus rate | 8 GT/s |
| Bus type | DMI3 |
| ECC supported by processor | No |
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Maximum internal memory supported by processor | 64 GB |
| Maximum number of PCI Express lanes | 16 |
| Memory clock speeds supported by processor | 1333,1600,2133,2400 MHz |
| Memory types supported by processor | DDR3L, DDR4-SDRAM |
| Memory voltage supported by processor | 1.35 V |
| PCI Express configurations | 1x16, 1x8+2x4, 2x8 |
| Processor code | SR338 |
| Processor codename | Kaby Lake |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor socket | LGA 1151 (Socket H4) |
| Processor threads | 8 |
| Scalability | 1S |
| Stepping | B0 |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Thermal solution specification | PCG 2015C |
| Tjunction | 100 °C |
| Conflict-Free processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4 |
| Memory clock speed | 2133 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 6.5 TB |
| Number of HDDs installed | 2 |
| HDD interface | Serial ATA III, Serial Attached SCSI (SAS) |
| HDD size | 3.5" |
| Number of HDDs supported | 4 |
| Number of SSDs installed | 1 |
| SSD capacity | 500 GB |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Optical drive type | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics 630 |
| Maximum on-board graphics card memory | 64 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card ID | 0x5912 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| DisplayPorts quantity | 0 |
| Dual Link DVI | Yes |
| Firewire (IEEE 1394) ports | 0 |
| Integrated SAS ports | 0 |
| Internal FireWire ports quantity | 0 |
| Mini DisplayPorts quantity | 0 |
| PS/2 ports quantity | 0 |
| Parallel ports quantity | 0 |
| Serial ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack |
| Product colour | Black, Silver |
| Rack mounting | Yes |
| Rack rails | Yes |
| Redundant fans support | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 IoT Enterprise |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 97128 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 400 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 8 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 437 mm |
| Depth | 503 mm |
| Height | 43 mm |
| Weight | 21.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, LAN (RJ-45) |
| Mouse included | Yes |
