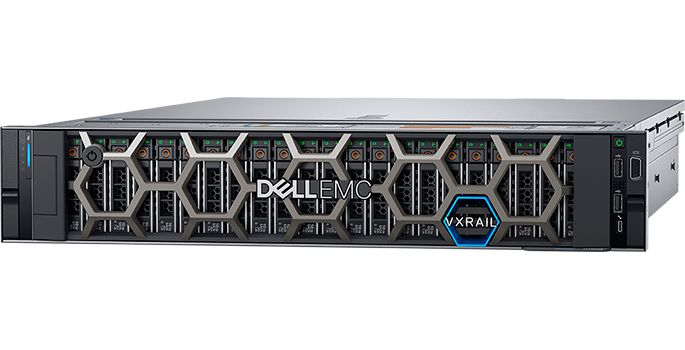

VxRail E560F
Model VxRail E560FPart no. VXRAILE560F_1
74 specifications
- ProcessorIntel Xeon Silver
- Memory384 GB
- Storage6.16 TB
- Weight21.9 kg
- ColourBlack
- Processor manufacturerIntel
Overview
- Processor
- Intel Xeon Silver
- Memory
- 384 GB
- Storage
- 6.16 TB
- Weight
- 21.9 kg
- Colour
- Black
- Processor manufacturer
- Intel
- Brand
- Dell
- Category
- Server
- Model
- VxRail E560F
- Part numbers
- VXRAILE560F_1, VXRAILE560F_2, VXRAILE560F_3, VXRAILE560_3
- Also known as
- DELL VxRail E560F server 6.16 TB Rack (1U) Intel Xeon Silver 4116 2.1 GHz 384 GB 1100 W
Specifications
74 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Silver |
| Processor generation | 1st Generation Intel® Xeon® Scalable |
| Processor model | 4116 |
| Processor frequency | 2.1 GHz |
| Processor boost frequency | 3 GHz |
| Processor cores | 12 |
| Processor cache | 16.5 MB |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 85 W |
| Processor cache type | L3 |
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| Maximum internal memory supported by processor | 768 GB |
| Maximum number of PCI Express lanes | 48 |
| Memory clock speeds supported by processor | 2400 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Processor code | SR3HQ |
| Processor codename | Skylake |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 76.0 x 56.5 mm |
| Processor socket | LGA 3647 (Socket P) |
| Processor threads | 24 |
| Scalability | 2S |
| Stepping | M0 |
| Supported instruction sets | AVX, AVX 2.0, AVX-512, SSE4.2 |
| Tcase | 76 °C |
| Conflict-Free processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 384 GB |
| Memory layout (slots x size) | 12 x 32 GB |
| Memory slots | 24 |
| Memory data transfer rate | 2666 MT/s |
| Maximum internal memory | 3 TB |
Storage
| Specification | Value |
|---|---|
| Maximum storage capacity | 30.7 TB |
| Total storage capacity | 6.16 TB |
| Number of HDDs installed | 0 |
| SSD capacity | 6.16 TB |
| SSD interface | Serial Attached SCSI (SAS) |
| RAID support | No |
| Internal drive bays | 10 |
| Optical drive type | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| LAN controller | Intel® X710 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Remote administration | iDRAC9 Enterprise |
| Performance management | OpenManage Enterprise Advanced |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 120481 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 1100 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 30 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Operating altitude | 0 - 3048 m |
Certificates
| Specification | Value |
|---|---|
| Certification | UL, CE, EMC, FCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 434 mm |
| Depth | 733.8 mm |
| Height | 42.8 mm |
| Weight | 21.9 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
