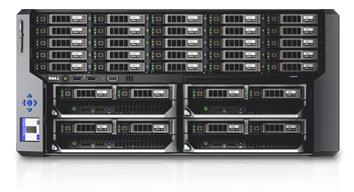

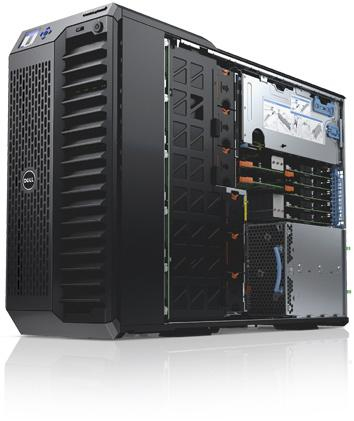

Dell PowerEdge VRTX server

4.59 TB Tower (5U) Intel® Xeon® E5 Family E5-2420 1.9 GHz 32 GB DDR3-SDRAM 1100 W Windows Server 2012 Standard

Model VRTXPart no. 10511100

95 specifications

Overview

Brand: Dell
Category: Server
Model: VRTX
Part number: 10511100
Also known as: DELL PowerEdge VRTX server 4.59 TB Tower (5U) Intel® Xeon® E5 Family E5-2420 1.9 GHz 32 GB DDR3-SDRAM 1100 W Windows Server 2012 Standard

95 specifications in 11 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 Family
Processor model	E5-2420
Processor frequency	1.9 GHz
Processor boost frequency	2.4 GHz
Processor cores	6
Processor cache	15 MB
Memory channels supported by processor	Triple
Number of processors installed	2
Thermal Design Power (TDP)	95 W
Processor cache type	Smart Cache
System bus rate	7.2 GT/s
Bus type	QPI
ECC supported by processor	Yes
Embedded options available	No
Execute Disable Bit	Yes
FSB Parity	No
Idle States	Yes
Maximum internal memory supported by processor	375 GB
Maximum number of PCI Express lanes	24
Memory bandwidth supported by processor (max)	32 GB/s
Memory clock speeds supported by processor	800,1066,1333 MHz
Memory types supported by processor	DDR3-SDRAM
Number of QPI links	1
Processor code	SR0LN
Processor codename	Sandy Bridge EN
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	45 x 42.5 mm
Processor series	Intel Xeon E5-2400
Processor socket	LGA 1356 (Socket B2)
Processor threads	12
Scalability	2S
Stepping	C2
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Specification	Value
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet, Gigabit Ethernet

Specification	Value
PCI Express slots version	3.0
PCI slots	8

Specification	Value
Chassis type	Tower (5U)

Specification	Value
Operating system installed	Windows Server 2012 Standard
Compatible operating systems	Windows 7 Windows Server 2008 Windows Server 2008 R2 Windows 8 Windows 8 Pro Windows Pro Enterprise Windows Server 2012 Standard Windows Server 2012 Datacenter Windows Server 2012 Essentials Windows Server 2012 Foundation RedHat Enterprise Linux (6.3, 6.4) CentOS (6.3, 6.4) Ubuntu (12.04 LTS, 13.04)

Specification	Value
CPU configuration (max)	2
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	1.0
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	64617

Specification	Value
Redundant power supply (RPS) support	Yes
Power supply	1100 W
Number of main power supplies	4
