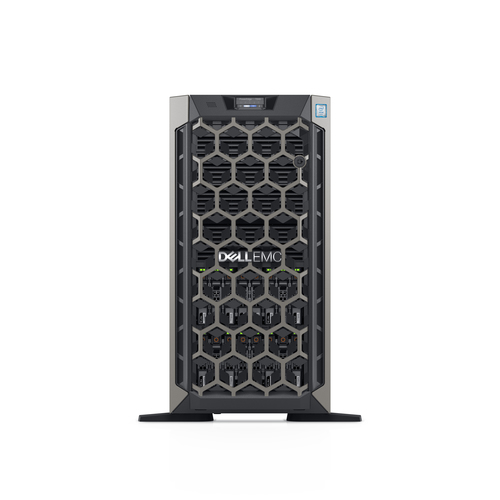

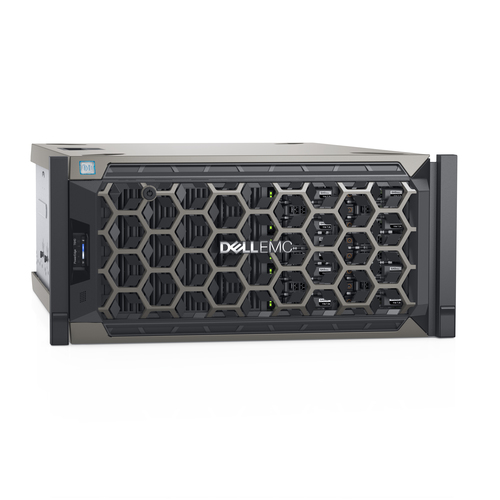

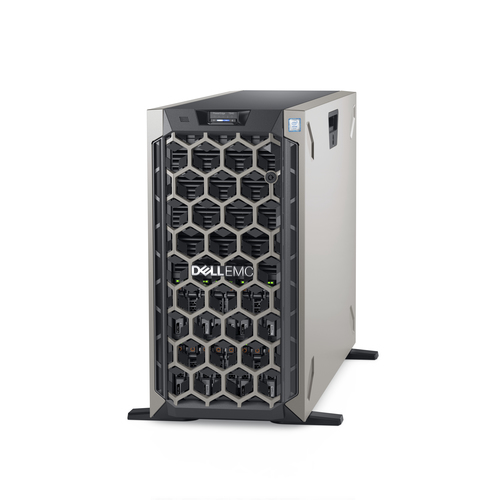

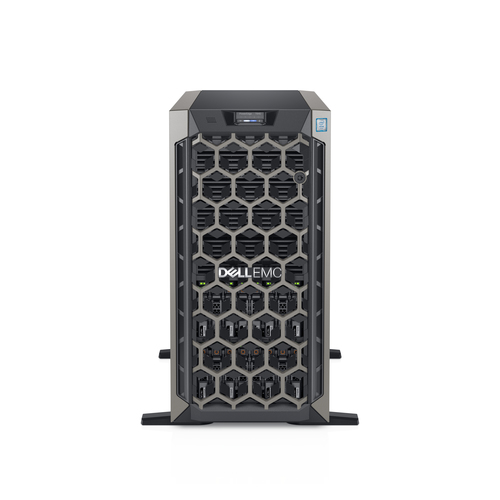

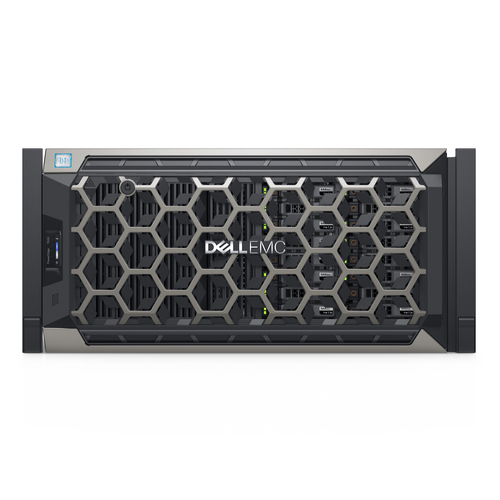

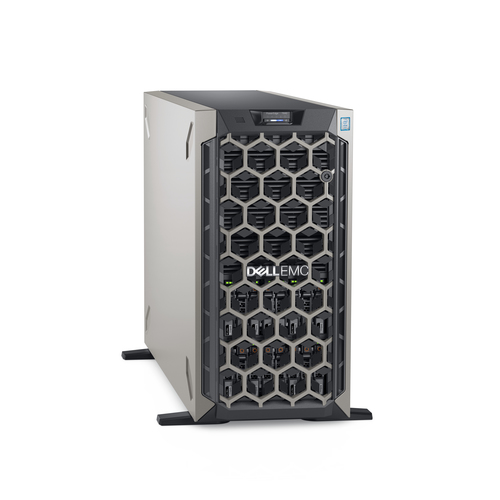

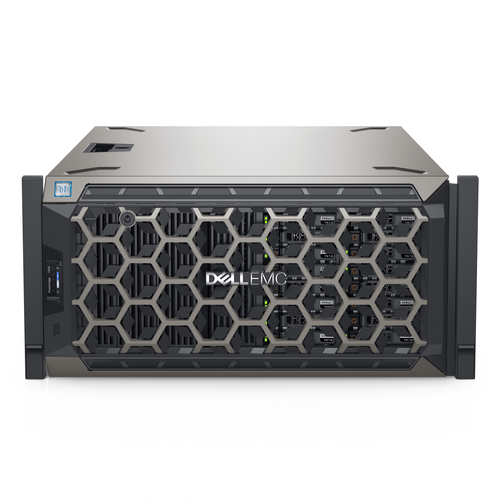

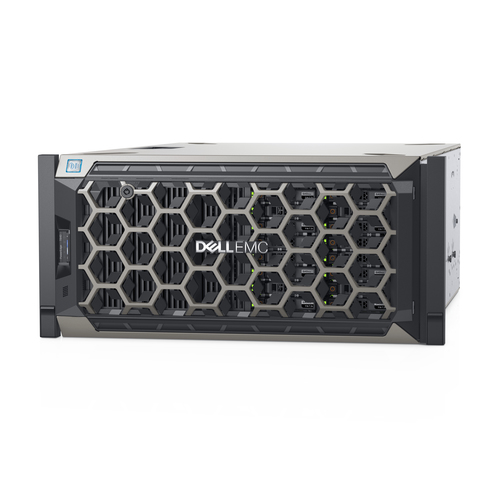

T640 + 623-BBCY
Model T640 + 623-BBCYPart no. 7CX5T?KIT4
58 specifications
- ProcessorIntel Xeon Silver
- Memory32 GB
- Storage480 GB
- OSNo
- ColourBlack
- Processor manufacturerIntel
Overview
- Processor
- Intel Xeon Silver
- Memory
- 32 GB
- Storage
- 480 GB
- OS
- No
- Colour
- Black
- Processor manufacturer
- Intel
- Brand
- Dell
- Category
- Server
- Model
- T640 + 623-BBCY
- Part number
- 7CX5T?KIT4
- Also known as
- DELL PowerEdge T640 + 623-BBCY server 480 GB Rack (1U) Intel Xeon Silver 4214R 2.4 GHz 32 GB DDR4-SDRAM 750 W
Specifications
58 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Silver |
| Processor generation | 2nd Generation Intel® Xeon® Scalable |
| Processor model | 4214R |
| Processor frequency | 2.4 GHz |
| Processor boost frequency | 3.5 GHz |
| Processor cache | 16.5 MB |
| Number of processors installed | 1 |
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Buffered memory type | Registered (buffered) |
| Memory ranking | 2 |
| Memory clock speed | 3200 MHz |
| Memory layout (slots x size) | 1 x 32 GB |
| Memory slots | 24x DIMM |
| Memory data transfer rate | 3200 MT/s |
| Maximum internal memory | 384 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 480 GB |
| Number of HDDs supported | 16 |
| Supported HDD sizes | 2.5" |
| Number of SSDs installed | 1 |
| SSD capacity | 480 GB |
| SSD interface | SATA III |
| Supported RAID controllers | PERC H730P 2GB |
| Hot-Plug support | Yes |
| Optical drive type | DVD±RW |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |

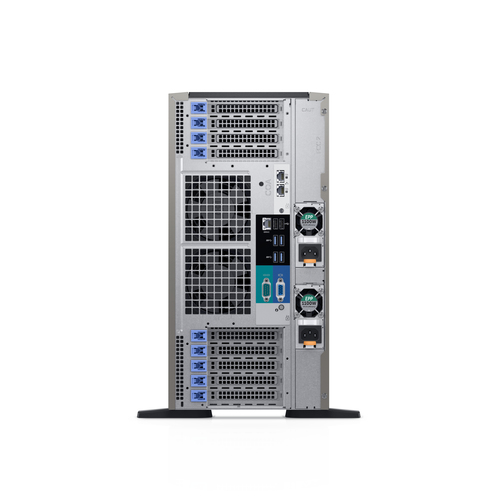

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black |
| Bezel | Yes |
| Rack mounting | Yes |
Performance
| Specification | Value |
|---|---|
| Remote administration | iDRAC9 Enterprise |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | - Canonical Ubuntu LTS - Citrix XenServer - Microsoft Windows Server with Hyper-V - Red Hat Enterprise Linux - SUSE Linux Enterprise Server - VMware ESXi |
| Bundled software | Microsoft Windows Server 2019 |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | No |
| Power supply | 750 W |
| Number of main power supplies | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 42.8 mm |
