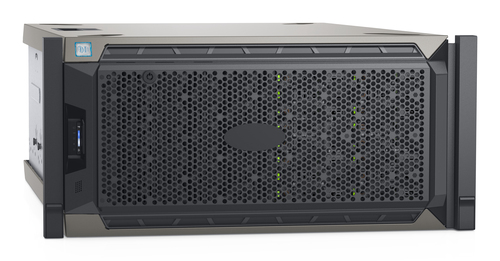

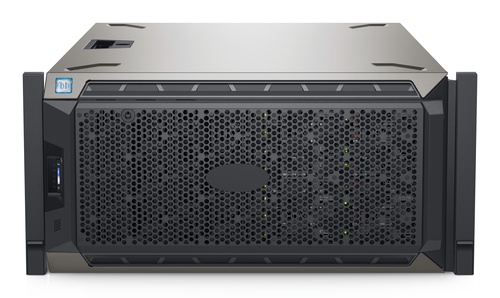

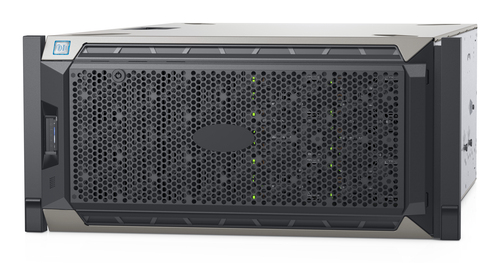

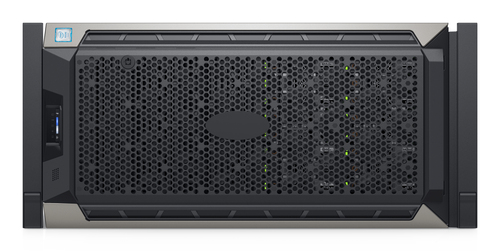

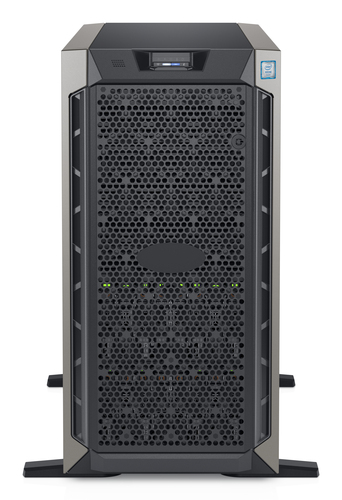

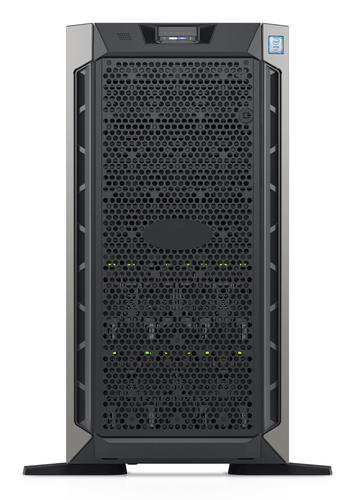

Dell PowerEdge T640 server
300 GB Tower Intel® Xeon® 3104 1.7 GHz 8 GB DDR4-SDRAM 495 W
Model T640Part no. KVNC7+634-BSFXEAN 5397184384619
101 specifications
- ProcessorIntel® Xeon®
- Memory8 GB
- Storage300 GB
- Weight49.6 kg
- Processor manufacturerIntel
- Maximum storage capacity180 TB
Overview
- Processor
- Intel® Xeon®
- Memory
- 8 GB
- Storage
- 300 GB
- Weight
- 49.6 kg
- Processor manufacturer
- Intel
- Maximum storage capacity
- 180 TB
- Brand
- Dell
- Category
- Server
- Model
- T640
- Part numbers
- KVNC7+634-BSFX, KVNC7+634-BRMW+623-BBBW, D24XR+634-BSFZ, D24XR+634-BSFX, F0DYP+634-BSFZ, F0DYP+634-BSFX +34 more
- EAN / UPC
- 5397184384619, 5397184384602, 884116359531, 884116359524 +19 more
- Also known as
- DELL PowerEdge T640 server 300 GB Tower Intel® Xeon® 3104 1.7 GHz 8 GB DDR4-SDRAM 495 W
Specifications
101 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Processor generation | 1st Generation Intel® Xeon® Scalable |
| Processor model | 3104 |
| Processor frequency | 1.7 GHz |
| Processor cores | 6 |
| Processor cache | 8.25 MB |
| Memory channels supported by processor | Hexa |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 85 W |
| Processor cache type | L3 |
| Compatible processor series | Intel® Xeon® |
| ECC supported by processor | Yes |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Maximum internal memory supported by processor | 768 GB |
| Maximum number of PCI Express lanes | 48 |
| Maximum number of SMP processors | 2 |
| Memory clock speeds supported by processor | 2133 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Processor code | SR3GM |
| Processor codename | Skylake |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 76.0 x 56.5 mm |
| Processor socket | LGA 3647 (Socket P) |
| Processor threads | 6 |
| Scalability | 2S |
| Stepping | U0 |
| Supported instruction sets | AVX, AVX 2.0, AVX-512, SSE4.2 |
| Supported processor sockets | LGA 3647 (Socket P) |
| Tcase | 78 °C |
| Conflict-Free processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Memory clock speed | 2667 MHz |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 24x DIMM |
| Maximum internal memory | 3 TB |
Storage
| Specification | Value |
|---|---|
| Maximum storage capacity | 180 TB |
| Total storage capacity | 300 GB |
| Number of HDDs installed | 1 |
| HDD capacity | 300 GB |
| HDD interface | Serial Attached SCSI (SAS) |
| HDD speed | 15000 RPM |
| HDD size | 2.5" |
| Supported HDD sizes | 3.5" |
| RAID support | Yes |
| Supported RAID controllers | PERC H330+ |
| Hot-Plug support | Yes |
| Internal drive bays | 8 |
| Optical drive type | No |
| Supported storage drive interfaces | SAS, Serial ATA |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Matrox G200eW3 |
| On-board graphics card memory | 0.016 GB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 (Gen 3.x) slots | 1 |
| PCI Express x8 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
Performance
| Specification | Value |
|---|---|
| Remote administration | iDRAC9 Enterprise |
| Performance management | OpenManage Essentials |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Canonical Ubuntu LTS Citrix XenServer Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | No |
| Processor ARK ID | 123546 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 495 W |
| Number of main power supplies | 1 |
| Power supply input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 304.5 mm |
| Depth | 692.8 mm |
| Height | 471.5 mm |
| Weight | 49.6 kg |
Other features
| Specification | Value |
|---|---|
| Dell E-Value Code | PET6401 |
