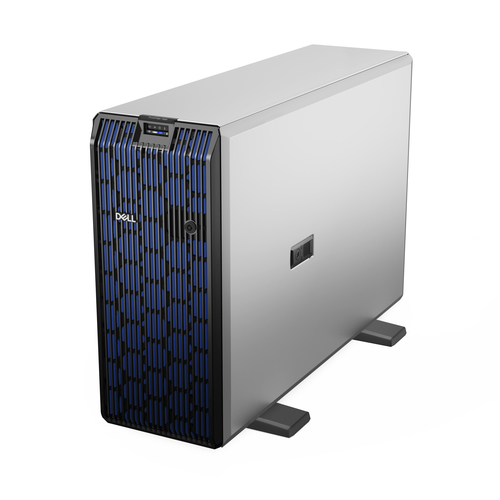

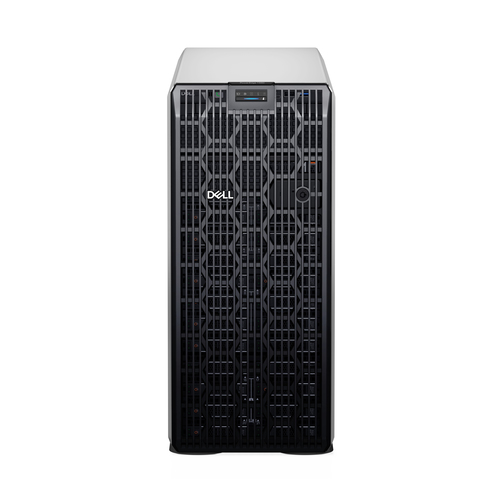

PowerEdge T560 server
960 GB Tower (4.5U) Intel Xeon Silver 4410Y 2 GHz 32 GB DDR5-SDRAM 800 W
Model T560Part no. EMEA_PET5604AEAN 5397184851937
71 specifications
- ProcessorIntel Xeon Silver
- Memory32 GB
- Storage960 GB
- OSNo
- ColourBlack
- Processor manufacturerIntel
Overview
- Processor
- Intel Xeon Silver
- Memory
- 32 GB
- Storage
- 960 GB
- OS
- No
- Colour
- Black
- Processor manufacturer
- Intel
- Brand
- Dell
- Category
- Server
- Model
- T560
- Part numbers
- EMEA_PET5604A, EMEA_PET5605A, EMEA_PET5606A, EMEA_PET560SPL2, EMEA_PET560SPL1, T560-FY25Q1 +33 more
- EAN / UPC
- 5397184851937, 5397184851944, 5397184851951, 884116461593 +5 more
- Also known as
- DELL PowerEdge T560 server 960 GB Tower (4.5U) Intel Xeon Silver 4410Y 2 GHz 32 GB DDR5-SDRAM 800 W
Specifications
71 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Silver |
| Processor generation | Intel Xeon Scalable 4th Gen |
| Processor model | 4410Y |
| Processor frequency | 2 GHz |
| Processor boost frequency | 3.9 GHz |
| Processor cores | 12 |
| Processor cache | 30 MB |
| Motherboard chipset | Intel C741 |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 150 W |
| System bus rate | 16 GT/s |
| Memory clock speeds supported by processor | 4000 MHz |
| Memory types supported by processor | DDR5-SDRAM |
| Processor threads | 24 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Buffered memory type | Registered (buffered) |
| Memory ranking | 2 |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 16x DIMM |
| Memory data transfer rate | 5600 MT/s |
| Maximum internal memory | 1 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 960 GB |
| Number of SSDs installed | 2 |
| SSD capacity | 480 GB |
| SSD interface | SATA III |
| SSD size | 2.5" |
| Supported SSD sizes | 3.5" |
| Number of SSDs supported | 8 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| Supported RAID controllers | PERC H755 |
| Hot-Plug support | Yes |
| Drive writes per day (DWPD) | 1 |
| Optical drive type | DVD±RW |
| Storage drive adapter included | Yes |
| Storage drive adapter type | 2.5" - 3.5" |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Broadcom 57416 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower (4.5U) |
| Product colour | Black |
| Bezel | Yes |
Performance
| Specification | Value |
|---|---|
| Remote administration | iDRAC9 Enterprise |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Canonical® Ubuntu® Server LTS Microsoft® Windows Server® with Hyper-V RedHat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi® |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 800 W |
| Number of redundant power supplies supported | 2 |
| Number of redundant power supplies installed | 2 |
| Power supply input voltage | 200 - 240 V |
Carbon footprint
| Specification | Value |
|---|---|
| Carbon emissions, end-of-life (kg of CO2e) | 59.89 |
| Carbon emissions, energy usage (kg of CO2e) | 5210.43 |
| Carbon emissions, logistics (kg of CO2e) | 299.45 |
| Carbon emissions, manufacturing (kg of CO2e) | 419.23 |
| PAIA version | 1.3.2, 2022 |
| Total carbon emissions, standard deviation (kg of CO2e) | 3189 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 778.57 |
| Total carbon footprint (kg of CO2e) | 5989 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200 mm |
Other features
| Specification | Value |
|---|---|
| Bytes per sector | 512 |
| Data transfer rate | 6 Gbit/s |
| I/O ports | Riser Config0, No PCIe Riser, 1 CPU - 1 slot x16 PCIe (FHHL) e 1 slot x16 (with x8 links, FHHL) |
