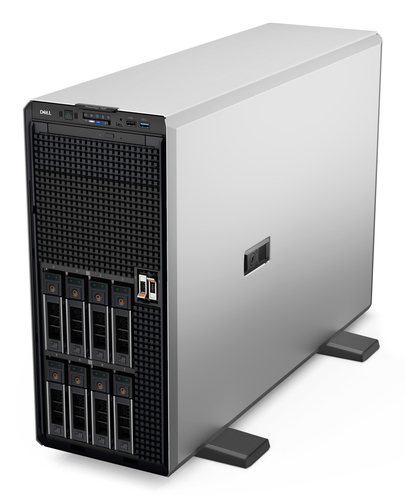

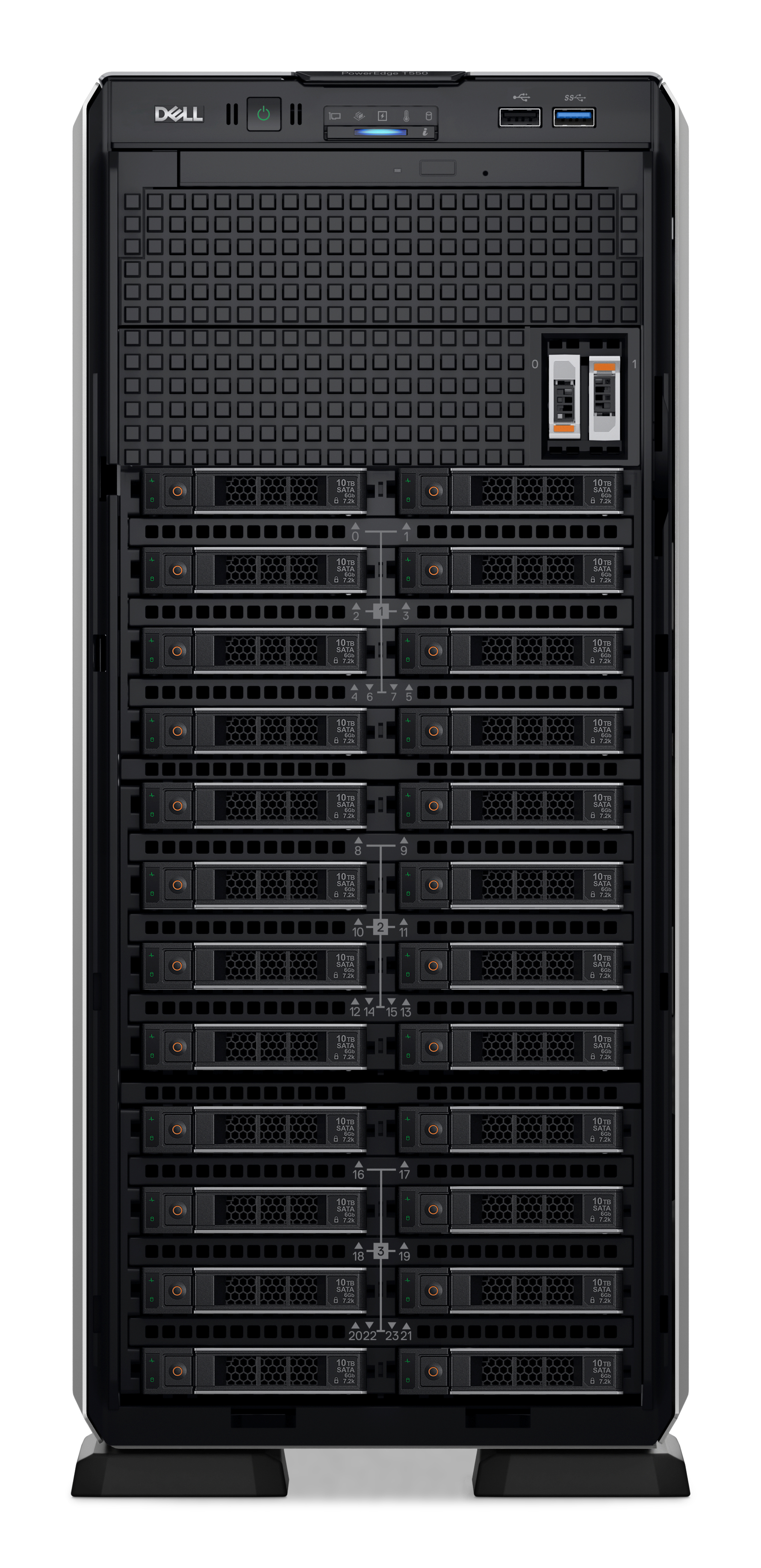

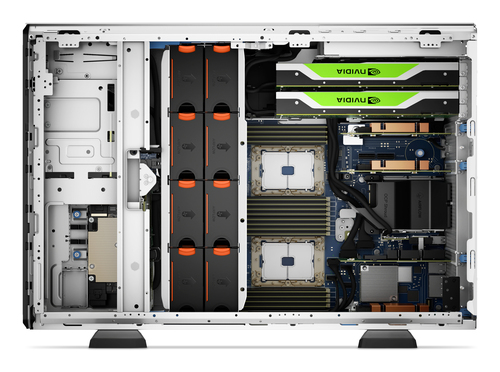

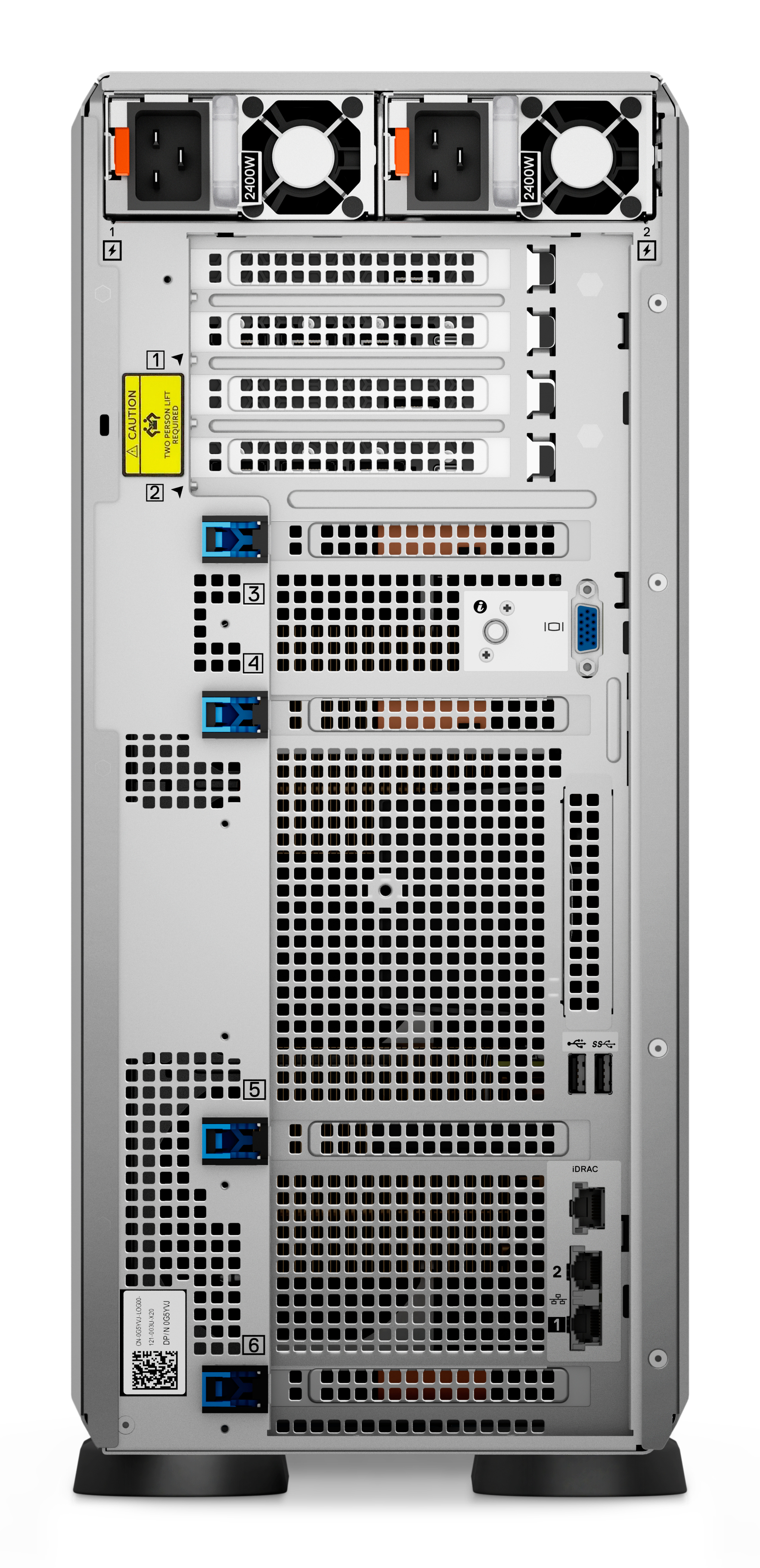

PowerEdge T550 server
480 GB Tower Intel Xeon Silver 4310 2.1 GHz 16 GB DDR4-SDRAM 800 W
Model T550Part no. Y5FTR+634-BYKREAN 5397184760451
70 specifications
- ProcessorIntel Xeon Silver
- Memory16 GB
- Storage480 GB
- OSNo
- Weight44.5 kg
- ColourBlack
Overview
- Processor
- Intel Xeon Silver
- Memory
- 16 GB
- Storage
- 480 GB
- OS
- No
- Weight
- 44.5 kg
- Colour
- Black
- Brand
- Dell
- Category
- Server
- Model
- T550
- Part numbers
- Y5FTR+634-BYKR, Y5FTR+634-BYLC, Y5FTR+634-BYLI, MXTM8+634-BYLI, Y5FTR + WIN SERVER 2022 STANDARD, Y5FTR + WIN SERVER 2022 ESSENTIALS +34 more
- EAN / UPC
- 5397184760451, 884116423126, 5397184678510, 5397184678527 +6 more
- Also known as
- DELL PowerEdge T550 server 480 GB Tower Intel Xeon Silver 4310 2.1 GHz 16 GB DDR4-SDRAM 800 W
Specifications
70 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Silver |
| Processor generation | 3rd Generation Intel® Xeon® Scalable |
| Processor model | 4310 |
| Processor frequency | 2.1 GHz |
| Processor boost frequency | 3.3 GHz |
| Processor cores | 12 |
| Processor cache | 18 MB |
| Number of processors installed | 2 |
| Thermal Design Power (TDP) | 120 W |
| System bus rate | 10.4 GT/s |
| Maximum internal memory supported by processor | 32 GB |
| Memory clock speeds supported by processor | 2666 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Processor threads | 24 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Buffered memory type | Registered (buffered) |
| Memory ranking | 1 |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 16x DIMM |
| Memory data transfer rate | 3200 MT/s |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 480 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 480 GB |
| SSD interface | SATA III |
| SSD size | 2.5" |
| Supported SSD sizes | 3.5" |
| Number of SSDs supported | 8 |
| RAID support | Yes |
| Supported RAID controllers | Front PERC H355 Front Load |
| Hot-Plug support | Yes |
| Drive writes per day (DWPD) | 3 |
| Optical drive type | No |
| Storage drive adapter included | Yes |
| Storage drive adapter type | 2.5" - 3.5" |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| LAN controller | Broadcom 5720 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| SFP/SFP+ slots quantity | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Remote administration | iDRAC9, Enterprise 15G |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 800 W |
| Number of redundant power supplies supported | 2 |
| Number of redundant power supplies installed | 2 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200 mm |
| Depth | 663.5 mm |
| Height | 464 mm |
| Weight | 44.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Packaging content | Riser Config1 2X NEMA 5-15P to C13 Wall Plug, 125 Volt, 15 AMP, 10 Feet (3m), Power Cord |
Other features
| Specification | Value |
|---|---|
| Bytes per sector | 512 |
| Data transfer rate | 6 Gbit/s |
| Target workload | Mixed Use (MU) |
