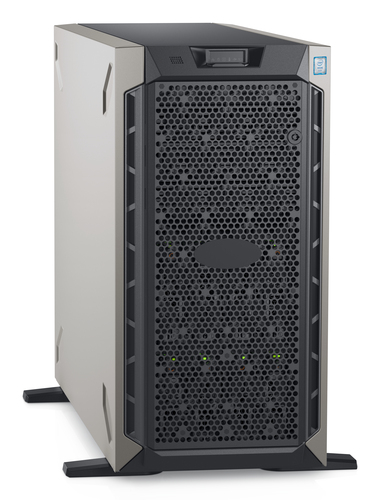

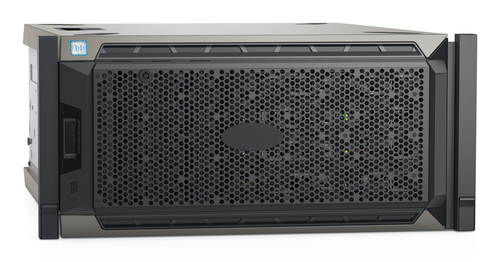

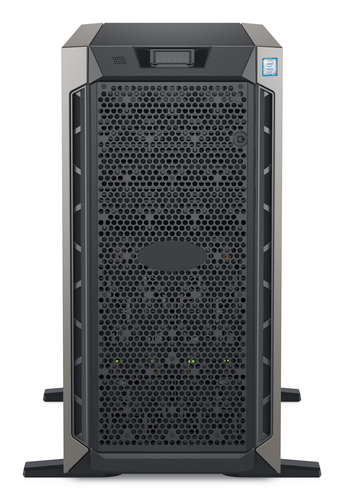

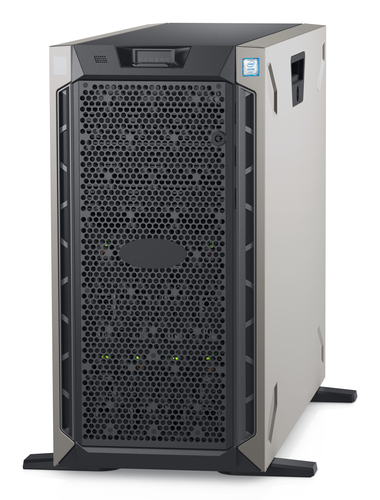

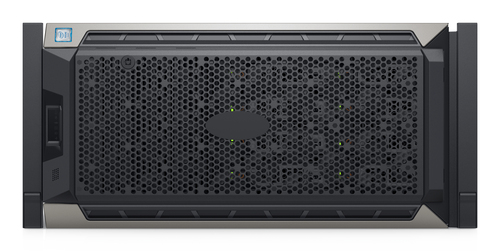

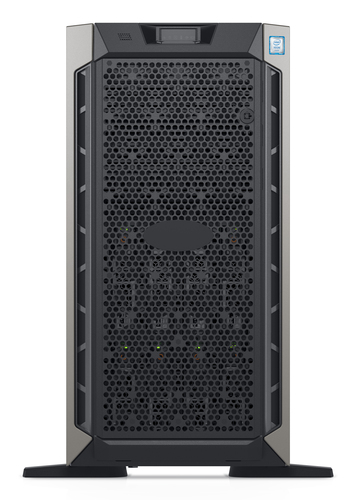

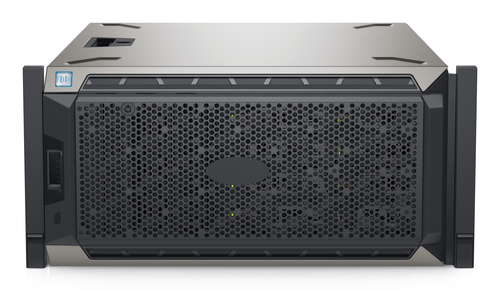

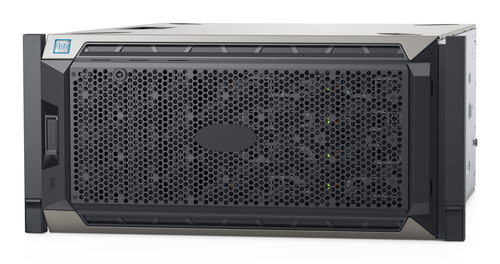

T440 + Windows Server Essentials
Model T440 + Windows Server EssentialsPart no. R88K4-KIT-2019ESS
91 specifications
- ProcessorIntel Xeon Silver
- Memory16 GB
- Storage480 GB
- OSWindows Server 2019 Essentials
- ColourBlack
- Processor manufacturerIntel
Overview
- Processor
- Intel Xeon Silver
- Memory
- 16 GB
- Storage
- 480 GB
- OS
- Windows Server 2019 Essentials
- Colour
- Black
- Processor manufacturer
- Intel
- Brand
- Dell
- Category
- Server
- Model
- T440 + Windows Server Essentials
- Part number
- R88K4-KIT-2019ESS
- Also known as
- DELL PowerEdge T440 + Windows Essentials server 480 GB Tower (5U) Intel Xeon Silver 4208 2.1 GHz 16 GB DDR4-SDRAM 495 W Windows Server 2019 Essentials
Specifications
91 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Silver |
| Processor generation | 2nd Generation Intel® Xeon® Scalable |
| Processor model | 4208 |
| Processor frequency | 2.1 GHz |
| Processor boost frequency | 3.2 GHz |
| Processor cores | 8 |
| Processor cache | 11 MB |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 85 W |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Maximum internal memory supported by processor | 1 TB |
| Maximum number of PCI Express lanes | 48 |
| Memory clock speeds supported by processor | 2400 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Processor codename | Cascade Lake |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 76.0 x 56.5 mm |
| Processor socket | LGA 3647 (Socket P) |
| Processor threads | 16 |
| Scalability | 2S |
| Supported instruction sets | AVX-512 |
| Tcase | 78 °C |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Buffered memory type | Registered (buffered) |
| Memory ranking | 2 |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 16 |
| Memory data transfer rate | 3200 MT/s |
| Maximum internal memory | 160 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 480 GB |
| Number of HDDs installed | 0 |
| Number of HDDs supported | 8 |
| Supported HDD sizes | 3.5" |
| Number of SSDs installed | 1 |
| SSD capacity | 480 GB |
| SSD interface | SATA III |
| SSD size | 2.5", 3.5" |
| Supported RAID controllers | PERC H330 |
| Hot-Plug support | Yes |
| Optical drive type | DVD-RW |
| Supported storage drive interfaces | SAS, Serial ATA |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Not available |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |

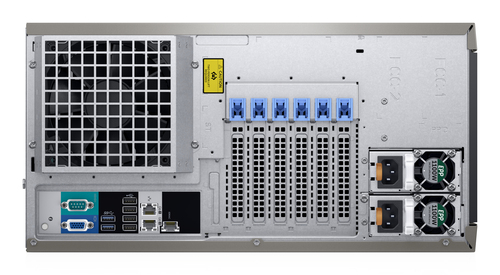

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower (5U) |
| Product colour | Black |
| Bezel | Yes |
| Rack rails | No |
Performance
| Specification | Value |
|---|---|
| Remote administration | iDRAC9 Enterprise |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Server 2019 Essentials |
| Compatible operating systems | - Canonical Ubuntu LTS - Citrix XenServer - Microsoft Windows Server with Hyper-V - Red Hat Enterprise Linux - SUSE Linux Enterprise Server - VMware ESXi |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 193390 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | No |
| Power supply | 495 W |
| Number of main power supplies | 1 |
| Power supply input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 218 mm |
| Depth | 573.6 mm |
| Height | 443.3 mm |
| Package width | 789 mm |
| Package depth | 616 mm |
| Package height | 454 mm |
| Package weight | 33.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
