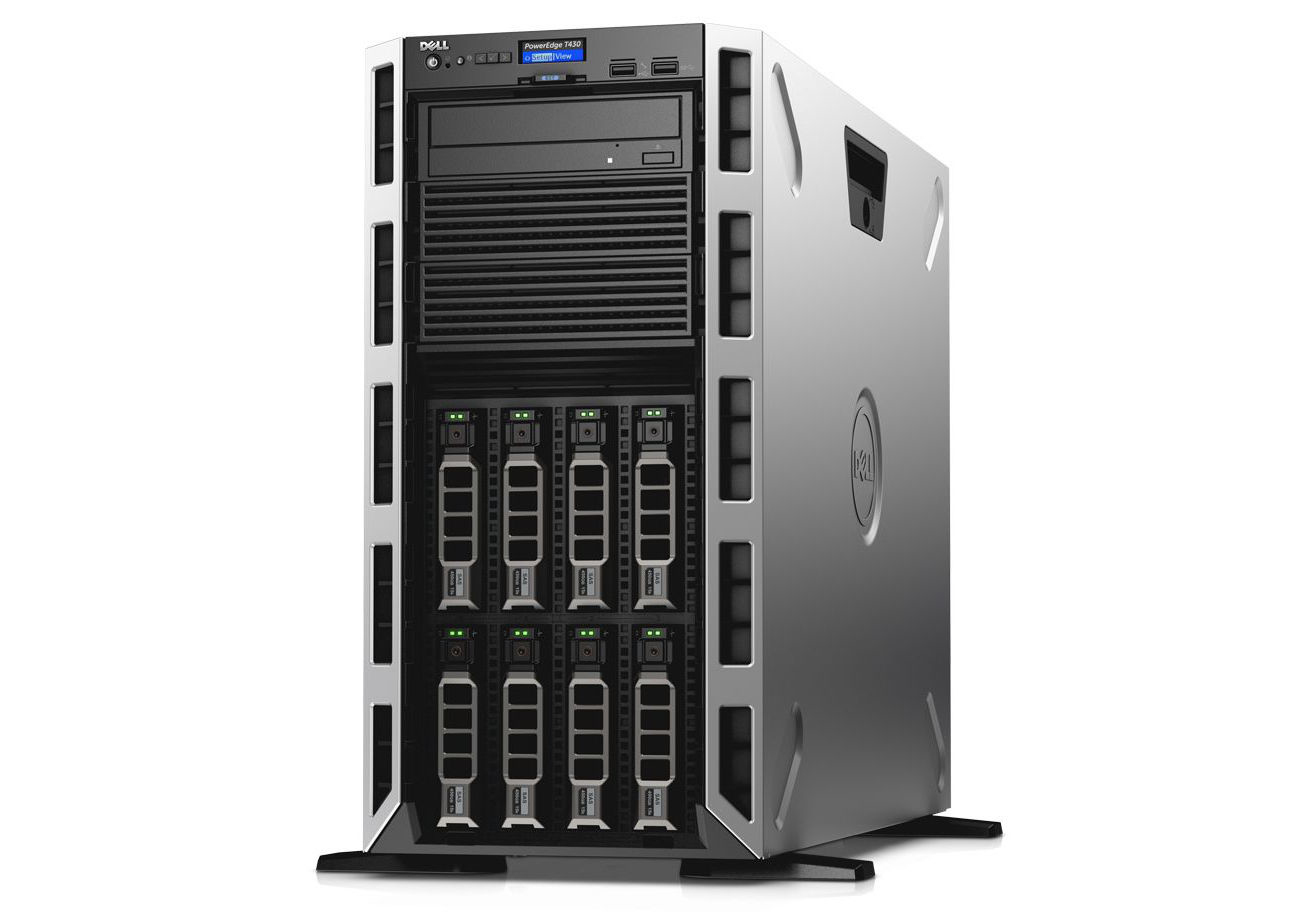

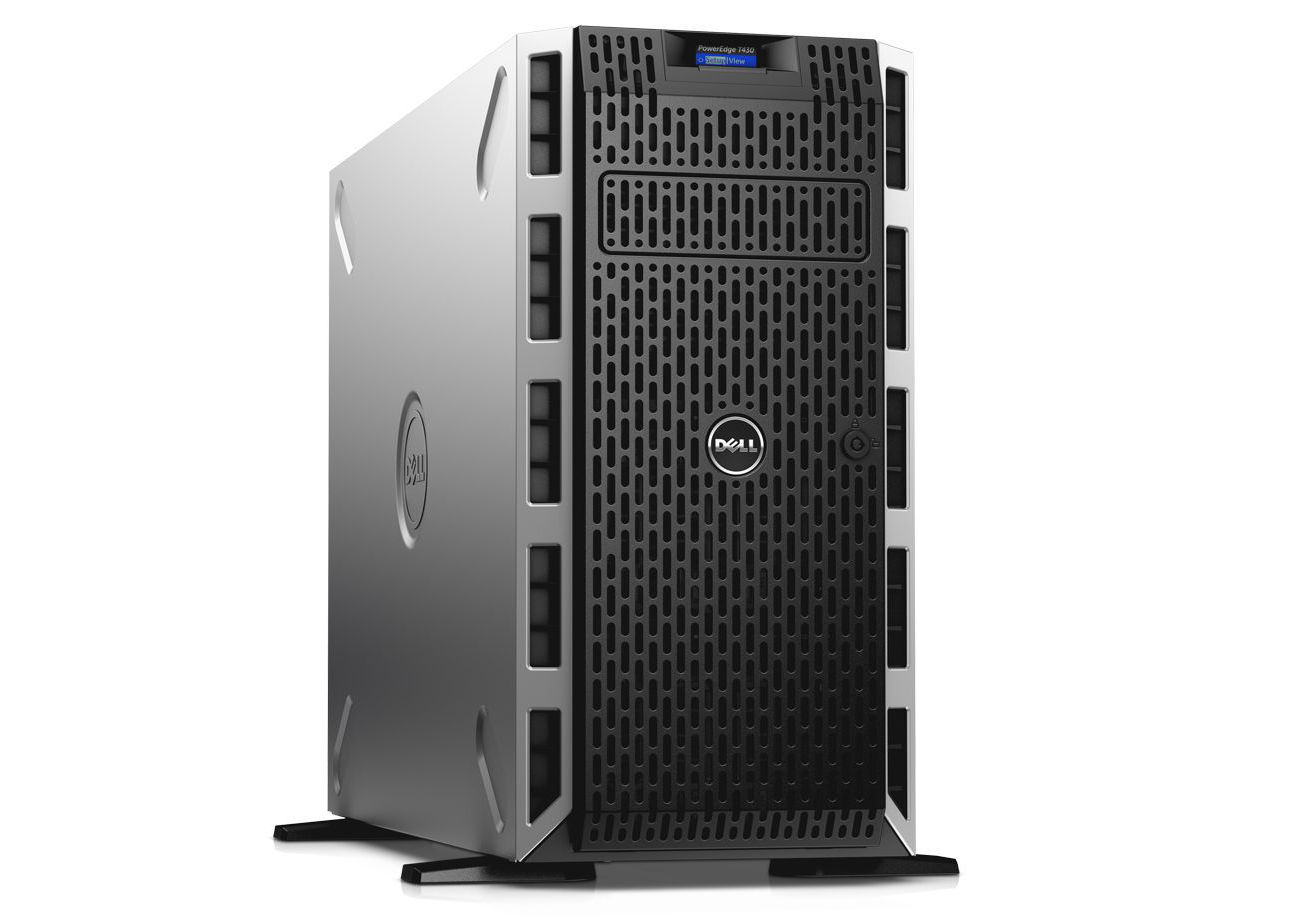

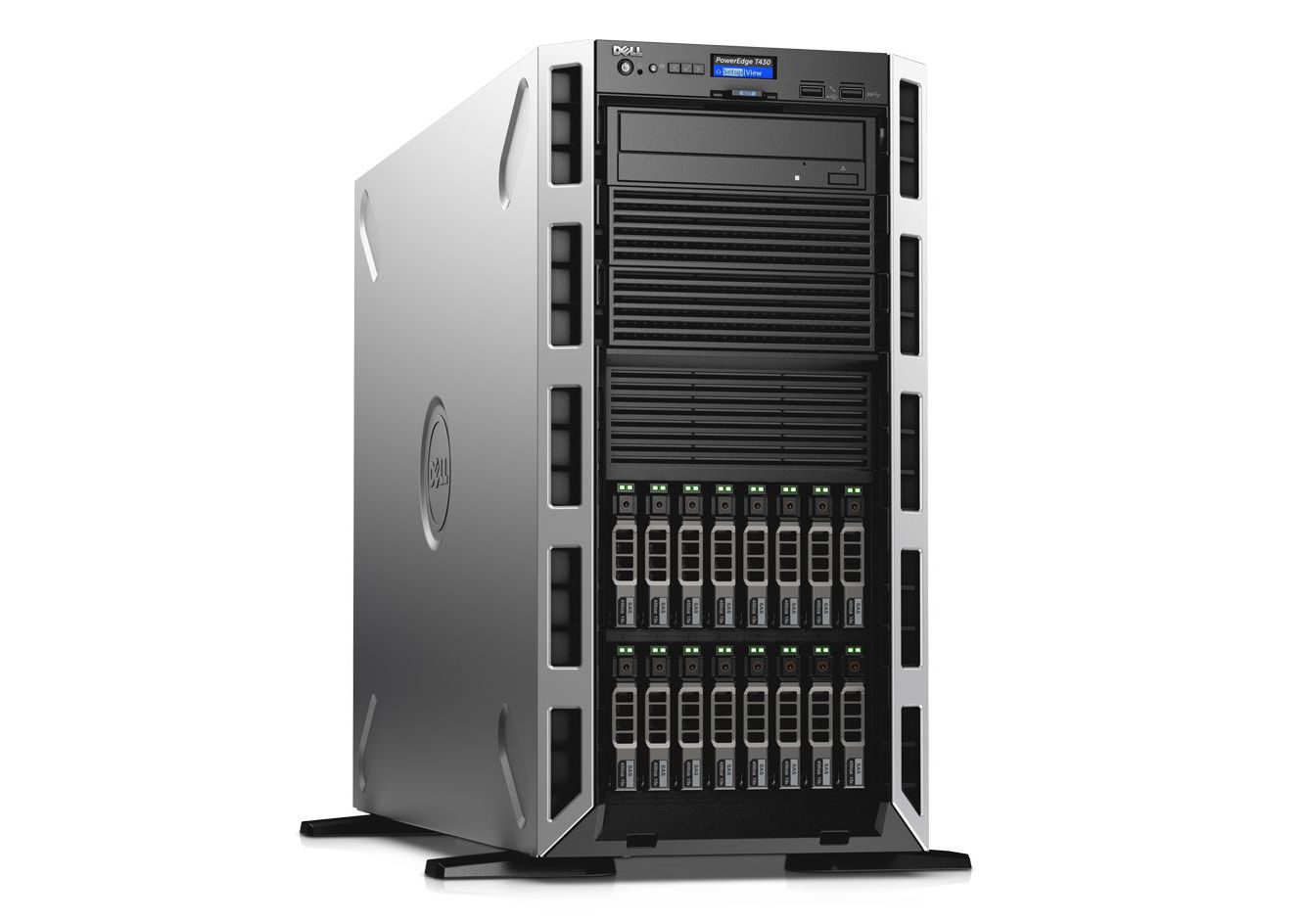

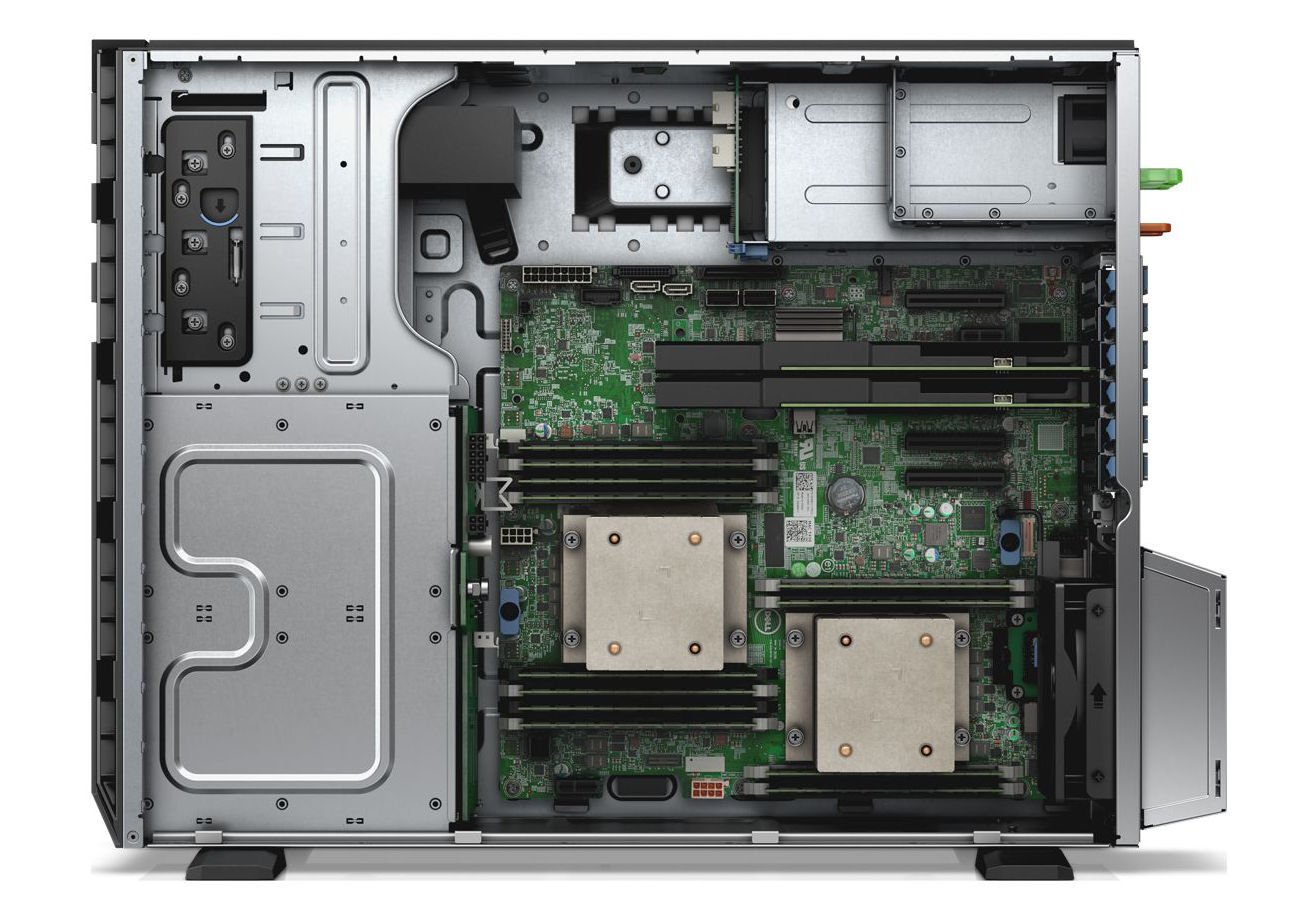

Dell T430+Windows Server 2016 Standard

Model T430+Windows Server 2016 StandardPart no. T430-0848?STANDARDKIT

104 specifications

Overview

Brand: Dell
Category: Server
Model: T430+Windows Server 2016 Standard
Part number: T430-0848?STANDARDKIT
Also known as: DELL PowerEdge T430+Windows 2016 Standard server 1 TB Tower (5U) Intel® Xeon® E5 v4 E5-2609V4 1.7 GHz 8 GB DDR4-SDRAM Windows Server 2016 Standard

104 specifications in 13 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 v4
Processor model	E5-2609V4
Processor frequency	1.7 GHz
Processor cores	8
Processor cache	20 MB
Motherboard chipset	Intel C610
Memory channels supported by processor	Quad
Number of processors installed	1
Thermal Design Power (TDP)	85 W
Processor cache type	Smart Cache
System bus rate	6.4 GT/s
Bus type	QPI
ECC supported by processor	Yes
Embedded options available	Yes
Execute Disable Bit	Yes
Idle States	Yes
Maximum internal memory supported by processor	1.53 TB
Maximum number of PCI Express lanes	40
Memory bandwidth supported by processor (max)	59.7 GB/s
Memory clock speeds supported by processor	1600,1866 MHz
Memory types supported by processor	DDR4-SDRAM
Number of QPI links	2
PCI Express configurations	1x4, 1x8, 1x16
Physical Address Extension (PAE)	46 bit
Physical Address Extension (PAE)	Yes
Processor code	SR2P1
Processor codename	Broadwell
Processor lithography	14 nm
Processor operating modes	64-bit
Processor package size	45 x 52.5 mm
Processor series	Intel Xeon E5-2600 v4
Processor socket	LGA 2011-v3
Processor threads	8
Scalability	2S
Stepping	R0
Supported instruction sets	AVX 2.0
Tcase	74 °C
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Specification	Value
On-board graphics card model	Not available

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Serial ports quantity	1
VGA (D-Sub) ports quantity	1

Specification	Value
Chassis type	Tower (5U)

Specification	Value
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	1.2

Specification	Value
Operating system installed	Windows Server 2016 Standard
Compatible operating systems	Windows Server 2008 SP2 (x86/x64) Windows Server 2012 SP2 (x86/x64) Windows Server 2008 R2 (x64) Windows Server 2012 R2 (x64) Novell SUSE Linux Enterprise Server Red Hat Enterprise Linux VMware vSphere

Specification	Value
CPU configuration (max)	2
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Demand Based Switching	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Secure Key Technology version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	No
Processor ARK ID	92990

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12000 m
