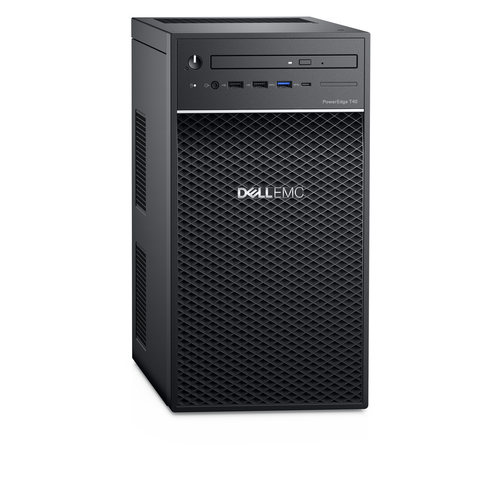

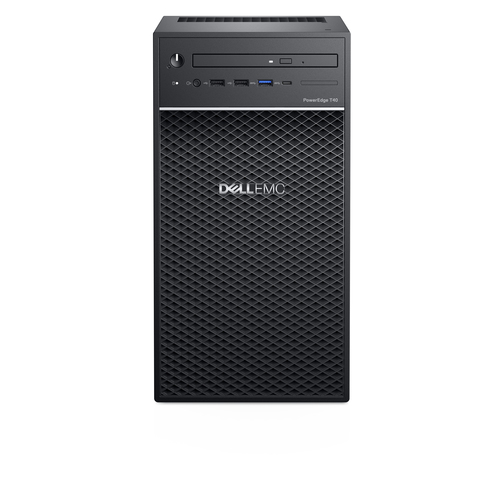

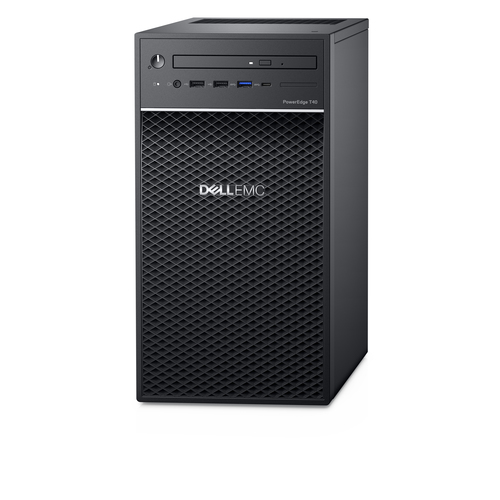

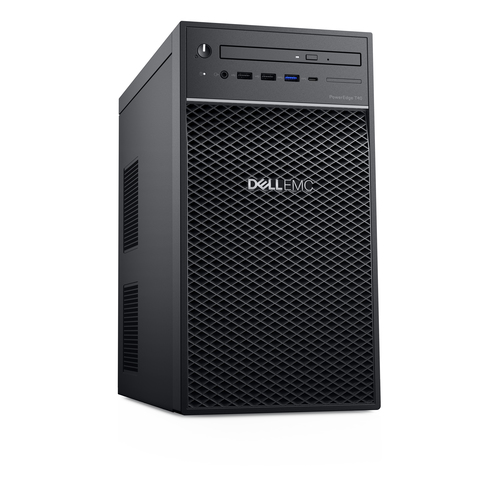

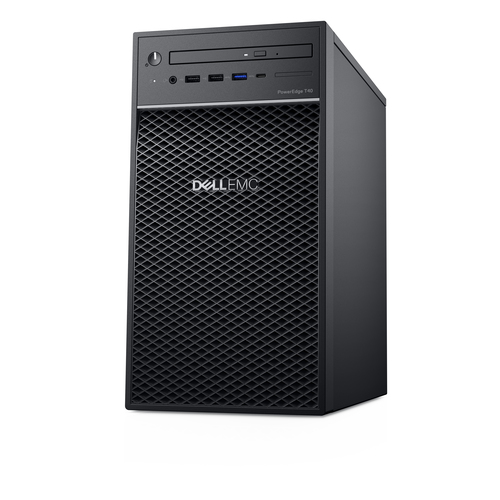

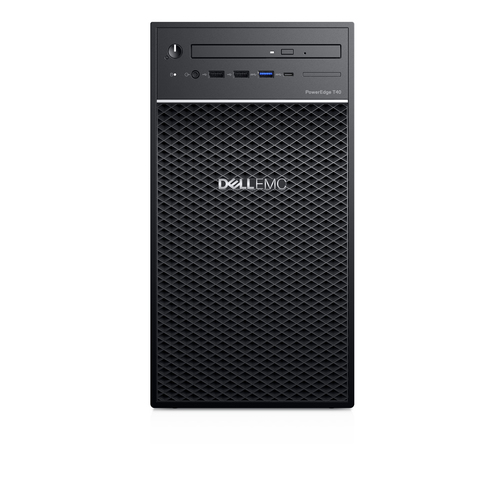

PowerEdge T40+634-BSGB server
1 TB Mini Tower Intel Xeon E E-2224G 3.5 GHz 8 GB DDR4-SDRAM Windows Server 2019 Datacenter
Model T40+634-BSGBPart no. 550HK/634-BSGB
68 specifications
- ProcessorIntel Xeon E
- Memory8 GB
- Storage1 TB
- OSWindows Server 2019 Datacenter
- Weight8.4 kg
- ColourBlack
Overview
- Processor
- Intel Xeon E
- Memory
- 8 GB
- Storage
- 1 TB
- OS
- Windows Server 2019 Datacenter
- Weight
- 8.4 kg
- Colour
- Black
- Brand
- Dell
- Category
- Server
- Model
- T40+634-BSGB
- Part number
- 550HK/634-BSGB
- Also known as
- DELL PowerEdge T40+634-BSGB server 1 TB Mini Tower Intel Xeon E E-2224G 3.5 GHz 8 GB DDR4-SDRAM Windows Server 2019 Datacenter
Specifications
68 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon E |
| Processor model | E-2224G |
| Processor frequency | 3.5 GHz |
| Processor boost frequency | 4.7 GHz |
| Processor cache | 8 MB |
| Number of processors installed | 1 |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Idle States | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Buffered memory type | Unregistered (unbuffered) |
| ECC | Yes |
| Memory clock speed | 3200 MHz |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 4x DIMM |
| Maximum internal memory | 64 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Number of HDDs supported | 3 |
| Supported HDD sizes | 3.5" |
| RAID support | No |
| Optical drive type | DVD±RW |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel UHD Graphics P630 |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |

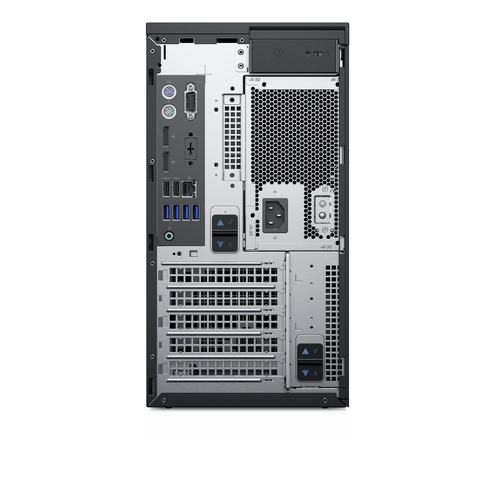

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| DisplayPorts quantity | 2 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini Tower |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Server 2019 Datacenter |
| Compatible operating systems | - Canonical Ubuntu Server LTS - Microsoft Windows Server LTSC + Hyper-V |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Power
| Specification | Value |
|---|---|
| Power supply input voltage | 220 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 1200 m |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84714100 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 176.6 mm |
| Depth | 359.5 mm |
| Height | 335 mm |
| Weight | 8.4 kg |
