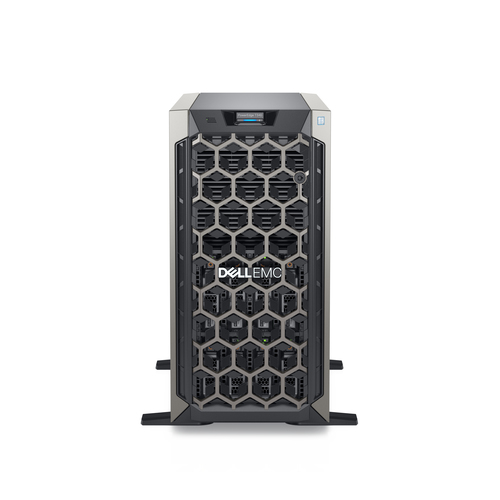

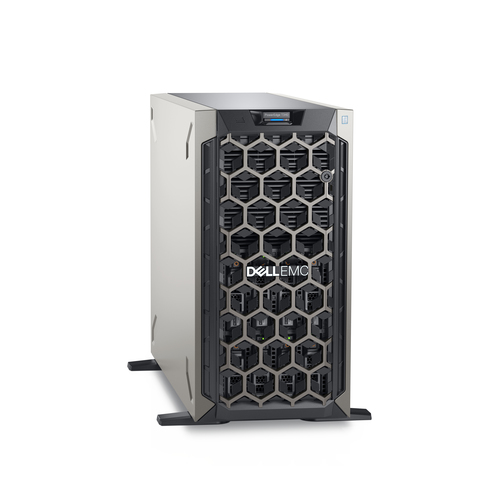

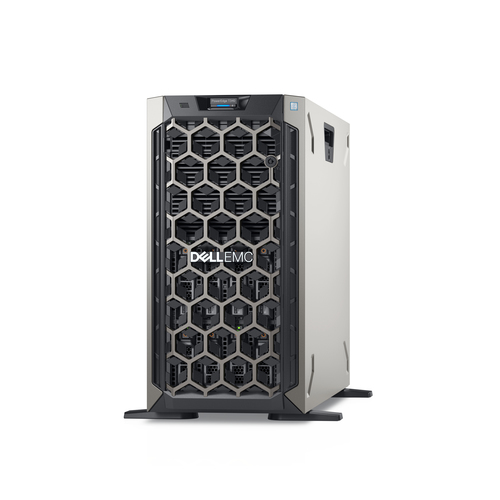

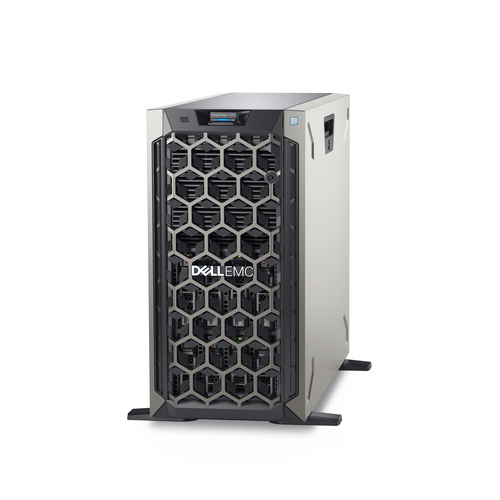

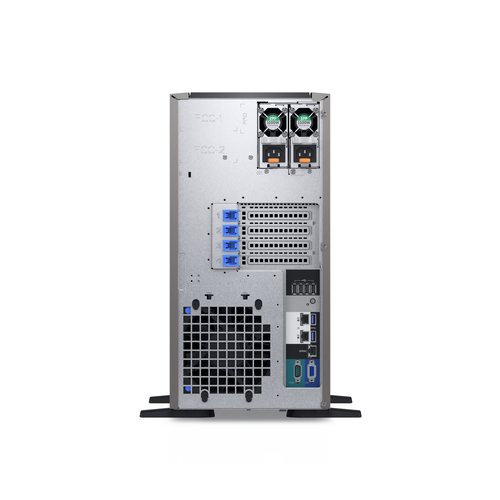

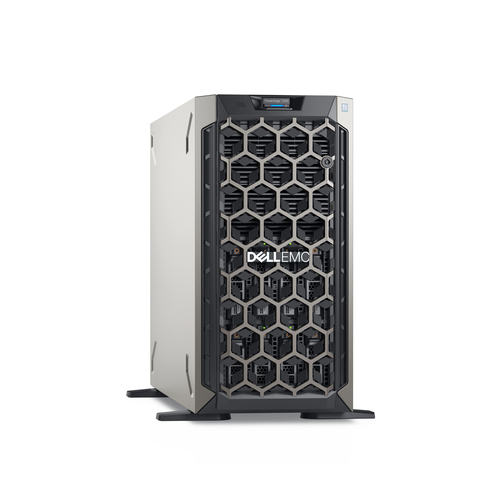

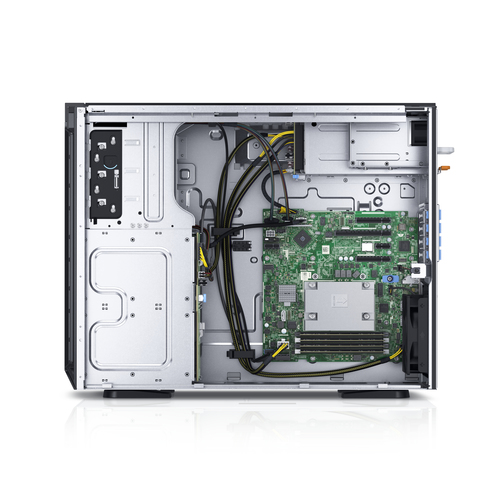

PowerEdge T340+210-AOYR server
1 TB Tower Intel Xeon E E-2224G 3.5 GHz 16 GB DDR4-SDRAM 495 W
Model T340+210-AOYRPart no. 2NGPW+210-AOYR
109 specifications
- ProcessorIntel Xeon E
- Memory16 GB
- Storage1 TB
- OSNo
- ColourBlack
- Processor manufacturerIntel
Overview
- Processor
- Intel Xeon E
- Memory
- 16 GB
- Storage
- 1 TB
- OS
- No
- Colour
- Black
- Processor manufacturer
- Intel
- Brand
- Dell
- Category
- Server
- Model
- T340+210-AOYR
- Part number
- 2NGPW+210-AOYR
- Also known as
- DELL PowerEdge T340+210-AOYR server 1 TB Tower Intel Xeon E E-2224G 3.5 GHz 16 GB DDR4-SDRAM 495 W
Specifications
109 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon E |
| Processor model | E-2224G |
| Processor frequency | 3.5 GHz |
| Processor boost frequency | 4.7 GHz |
| Processor cores | 4 |
| Processor cache | 8 MB |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 71 W |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Maximum internal memory supported by processor | 128 GB |
| Maximum number of PCI Express lanes | 16 |
| Memory clock speeds supported by processor | 2666 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| Processor codename | Coffee Lake |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor socket | LGA 1151 (Socket H4) |
| Processor threads | 4 |
| Scalability | 1S |
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0 |
| Tcase | 69.3 °C |
| Thermal Monitoring Technologies | Yes |
| Tjunction | 100 °C |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Memory clock speed | 2666 MHz |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 4x DIMM |
| Maximum internal memory | 64 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| HDD interface | Serial ATA |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Number of HDDs supported | 8 |
| Supported HDD sizes | 3.5" |
| RAID support | No |
| Supported RAID controllers | PERC H330 |
| Optical drive type | DVD-RW |
| Supported storage drive interfaces | SAS, Serial ATA |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel UHD Graphics P630 |
| Maximum on-board graphics card memory | 128 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card ID | 0x3E96 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1200 MHz |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x8 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Remote administration | iDRAC9 Express |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | - Microsoft Windows Server with Hyper-V - Red Hat Enterprise Linux - SUSE Linux Enterprise Server - VMware ESXi - Citrix XenServer - Ubuntu Server - Certify XenServer |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 191037 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 495 W |
| Number of main power supplies | 2 |
| Power supply input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 218 mm |
| Depth | 603 mm |
| Height | 430.3 mm |
| Package width | 789 mm |
| Package depth | 616 mm |
| Package height | 454 mm |
| Package weight | 29.6 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
