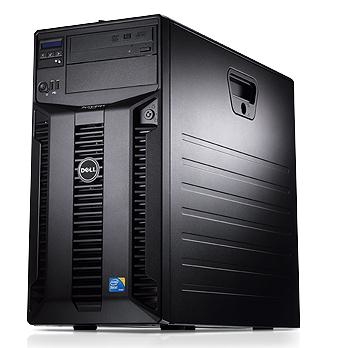

Dell PowerEdge T310 server

500 GB Tower Intel® Core™ i3 i3-540 3.06 GHz 4 GB DDR3-SDRAM

Model T310Part no. SV4T310EAN 5397063358885

93 specifications

Overview

Brand: Dell
Category: Server
Model: T310
Part numbers: SV4T310, PE4T310R, PE4T310EA, PE4T310_SOL, PE4T310E, T310-8885 +1 more
EAN / UPC: 5397063358885
Also known as: DELL PowerEdge T310 server 500 GB Tower Intel® Core™ i3 i3-540 3.06 GHz 4 GB DDR3-SDRAM

93 specifications in 11 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	Intel® Core™ i3
Processor model	i3-540
Processor frequency	3.06 GHz
Processor cores	2
Processor cache	4 MB
Memory channels supported by processor	Dual
Number of processors installed	1
Thermal Design Power (TDP)	73 W
Processor cache type	Smart Cache
System bus rate	2.5 GT/s
Bus type	DMI
CPU multiplier (bus/core ratio)	23
ECC supported by processor	No
Embedded options available	Yes
Execute Disable Bit	Yes
FSB Parity	No
Graphics & IMC lithography	45 nm
Idle States	Yes
Maximum internal memory supported by processor	16 GB
Maximum number of PCI Express lanes	16
Memory bandwidth supported by processor (max)	21 GB/s
Memory clock speeds supported by processor	1066,1333 MHz
Memory types supported by processor	DDR3 1066/1333
Number of Processing Die Transistors	382 M
PCI Express configurations	1x16, 2x8
Physical Address Extension (PAE)	36 bit
Physical Address Extension (PAE)	Yes
Processing Die size	81 mm²
Processor codename	Clarkdale
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor series	Intel Core i3-500 Desktop Series
Processor socket	LGA 1156 (Socket H)
Processor threads	4
Stepping	C2
Supported instruction sets	SSE4.2
Tcase	72.6 °C
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	733 MHz

Specification	Value
Ethernet LAN	Yes

Specification	Value
Ethernet LAN (RJ-45) ports	2

Specification	Value
PCI Express slots version	2.0

Specification	Value
Chassis type	Tower

Specification	Value
CPU configuration (max)	1
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	46473

Specification	Value
Redundant power supply (RPS) support	Yes

Specification	Value
Graphics card	HD Graphics
Graphics card family	Intel
