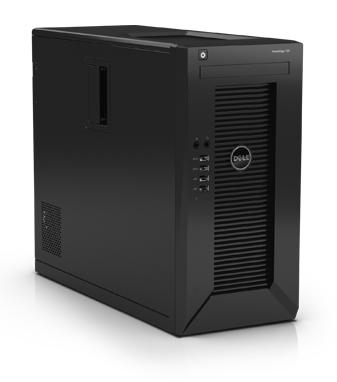

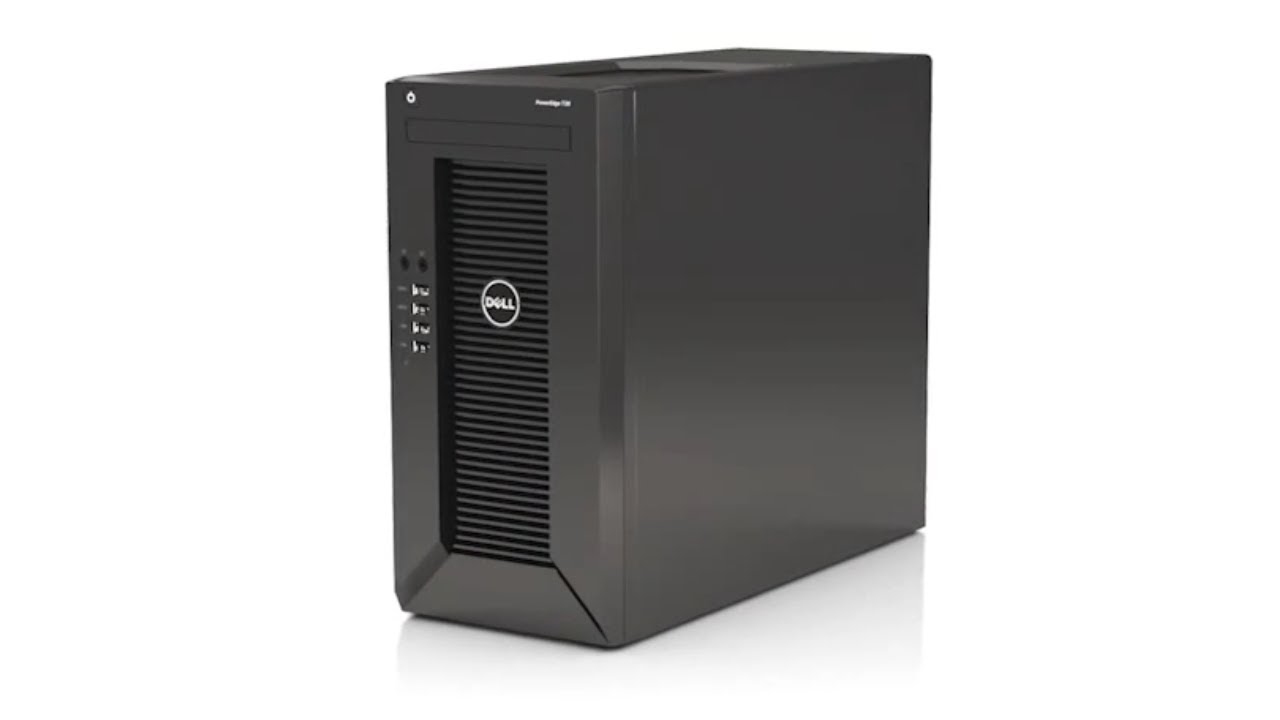

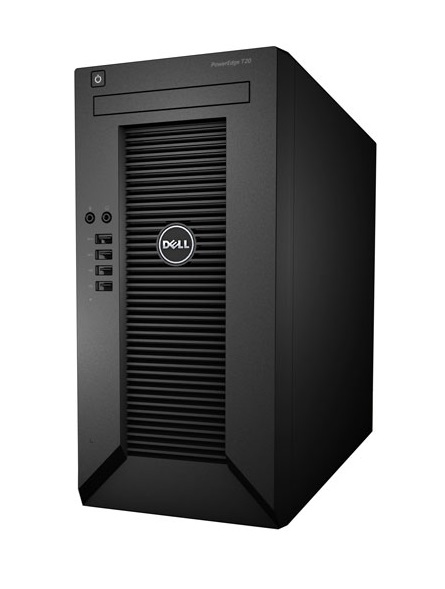

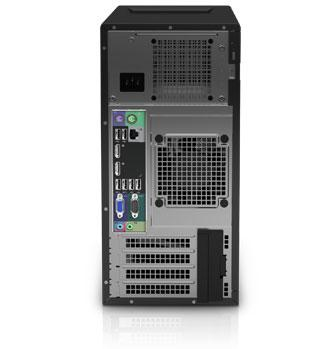

Dell PowerEdge T20-3692 server
500 GB Mini Tower Intel Pentium G G3220 3 GHz 4 GB DDR3-SDRAM 290 W
Model T20-3692Part no. 20-3692EAN 5397063563692
126 specifications
- ProcessorIntel Pentium G
- Memory4 GB
- Storage500 GB
- Weight8.49 kg
- Processor manufacturerIntel
- Maximum storage capacity13 TB
Overview
- Processor
- Intel Pentium G
- Memory
- 4 GB
- Storage
- 500 GB
- Weight
- 8.49 kg
- Processor manufacturer
- Intel
- Maximum storage capacity
- 13 TB
- Brand
- Dell
- Category
- Server
- Model
- T20-3692
- Part number
- 20-3692
- EAN / UPC
- 5397063563692
- Also known as
- DELL PowerEdge T20-3692 server 500 GB Mini Tower Intel Pentium G G3220 3 GHz 4 GB DDR3-SDRAM 290 W
Specifications
126 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Pentium G |
| Processor model | G3220 |
| Processor frequency | 3 GHz |
| Processor cores | 2 |
| Processor cache | 3 MB |
| Motherboard chipset | Intel® C226 |
| Memory channels supported by processor | Dual |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 54, 53 |
| Processor cache type | Smart Cache |
| System bus rate | 5 GT/s |
| Bus type | QPI |
| ECC supported by processor | Yes |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Graphics & IMC lithography | 22 nm |
| Idle States | Yes |
| Maximum internal memory supported by processor | 32 GB |
| Maximum number of PCI Express lanes | 16 |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| Memory clock speeds supported by processor | 1333 MHz |
| Memory types supported by processor | DDR3-SDRAM |
| Number of QPI links | 0 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| Processor code | SR1CG |
| Processor codename | Haswell |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Pentium G3000 series for Desktop |
| Processor socket | LGA 1150 (Socket H3) |
| Processor threads | 2 |
| Scalability | 1S |
| Stepping | C0 |
| Supported instruction sets | SSE4.1, SSE4.2 |
| Tcase | 72 °C |
| Thermal Monitoring Technologies | Yes |
| Thermal solution specification | PCG 2013C |
| Conflict-Free processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR3-SDRAM |
| Buffered memory type | Unregistered (unbuffered) |
| ECC | Yes |
| Memory clock speed | 1600 MHz |
| Memory layout (slots x size) | 1 x 4 GB |
| Memory slots | 4x DIMM |
| Maximum internal memory | 32 GB |
Storage
| Specification | Value |
|---|---|
| Maximum storage capacity | 13 TB |
| Total storage capacity | 500 GB |
| Number of HDDs installed | 1 |
| HDD capacity | 500 GB |
| HDD interface | Serial ATA |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| Optical drive type | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics |
| Maximum on-board graphics card memory | 1.74 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card DirectX version | 11.1 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® 82579 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 2.x) slots | 1 |
| PCI Express x16 (Gen 2.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express slots version | 3.0 |
| PCI slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini Tower |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Window Server 2012 R2 RedHat |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 77773 |
Power
| Specification | Value |
|---|---|
| Power supply | 290 W |
| Number of main power supplies | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 175 mm |
| Depth | 435.7 mm |
| Height | 360 mm |
| Weight | 8.49 kg |
Other features
| Specification | Value |
|---|---|
| Graphics card | HD Graphics |
| Graphics card family | Intel |
