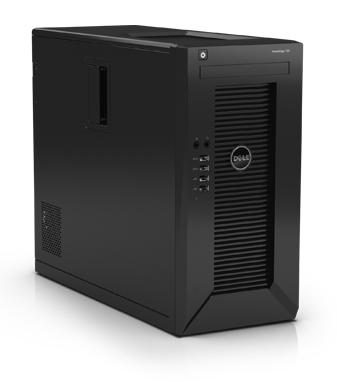

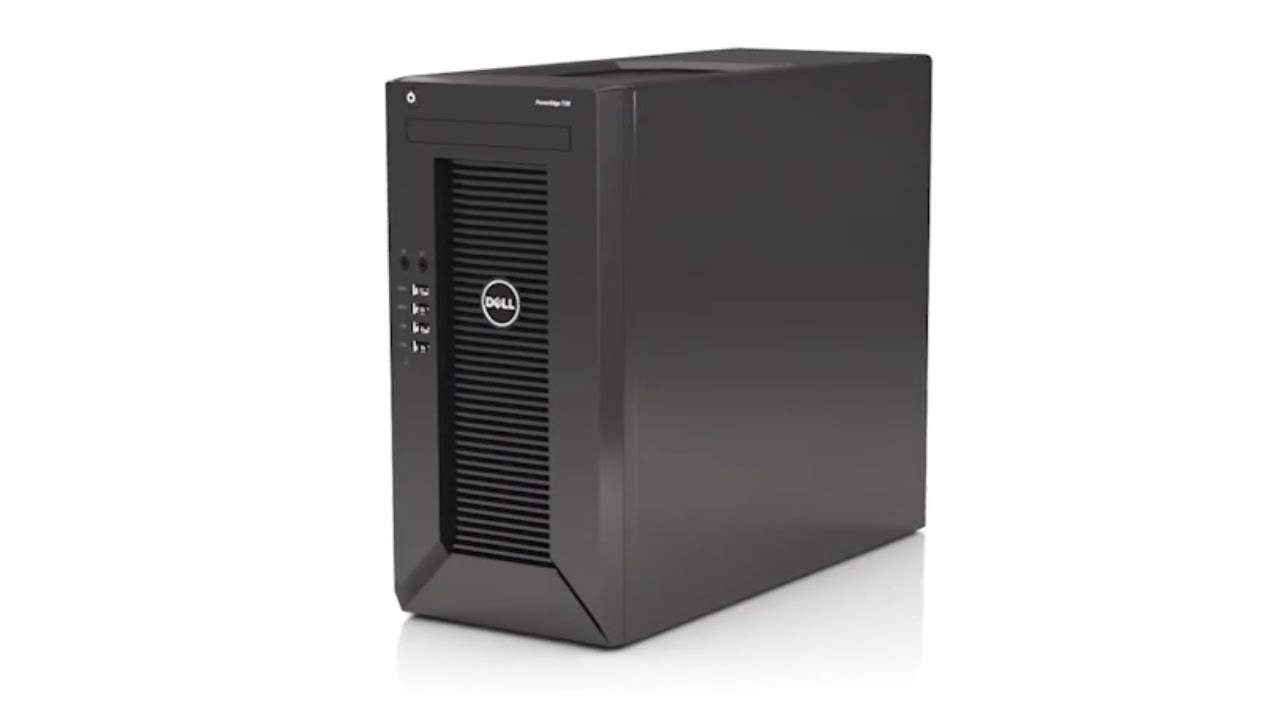

Dell PowerEdge T20 server

0 GB Mini Tower Intel Pentium G G3220 3 GHz 4 GB DDR3-SDRAM 290 W

Model T20Part no. 60742023EAN 4053162873001

114 specifications

Overview

Brand: Dell
Category: Server
Model: T20
Part numbers: 60742023, 60991455, T20-0326, T20-9186, T20-9179, 62009841 +25 more
EAN / UPC: 4053162873001, 5397063563708, 7612392305590, 5397063733729 +10 more
Also known as: DELL PowerEdge T20 server 0 GB Mini Tower Intel Pentium G G3220 3 GHz 4 GB DDR3-SDRAM 290 W

114 specifications in 12 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Pentium G
Processor model	G3220
Processor frequency	3 GHz
Processor cores	2
Processor cache	3 MB
Motherboard chipset	Intel® C226
Memory channels supported by processor	Dual
Number of processors installed	1
Thermal Design Power (TDP)	54, 53
Processor cache type	Smart Cache
System bus rate	5 GT/s
Bus type	QPI
ECC supported by processor	Yes
Embedded options available	No
Execute Disable Bit	Yes
FSB Parity	No
Graphics & IMC lithography	22 nm
Idle States	Yes
Maximum internal memory supported by processor	32 GB
Maximum number of PCI Express lanes	16
Memory bandwidth supported by processor (max)	25.6 GB/s
Memory clock speeds supported by processor	1333 MHz
Memory types supported by processor	DDR3-SDRAM
Number of QPI links	0
PCI Express configurations	1x16, 2x8, 1x8+2x4
Processor code	SR1CG
Processor codename	Haswell
Processor lithography	22 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor series	Intel Pentium G3000 series for Desktop
Processor socket	LGA 1150 (Socket H3)
Processor threads	2
Scalability	1S
Stepping	C0
Supported instruction sets	SSE4.1, SSE4.2
Tcase	72 °C
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2013C
Conflict-Free processor	Yes

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Maximum on-board graphics card memory	1.74 GB
Number of displays supported (on-board graphics)	3
On-board graphics card DirectX version	11.1
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1100 MHz

Specification	Value
Chassis type	Mini Tower

Specification	Value
Compatible operating systems	Window Server 2012 R2 Linux RedHat

Specification	Value
CPU configuration (max)	1
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	Yes
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	77773

Specification	Value
Power supply	290 W
Number of main power supplies	1
