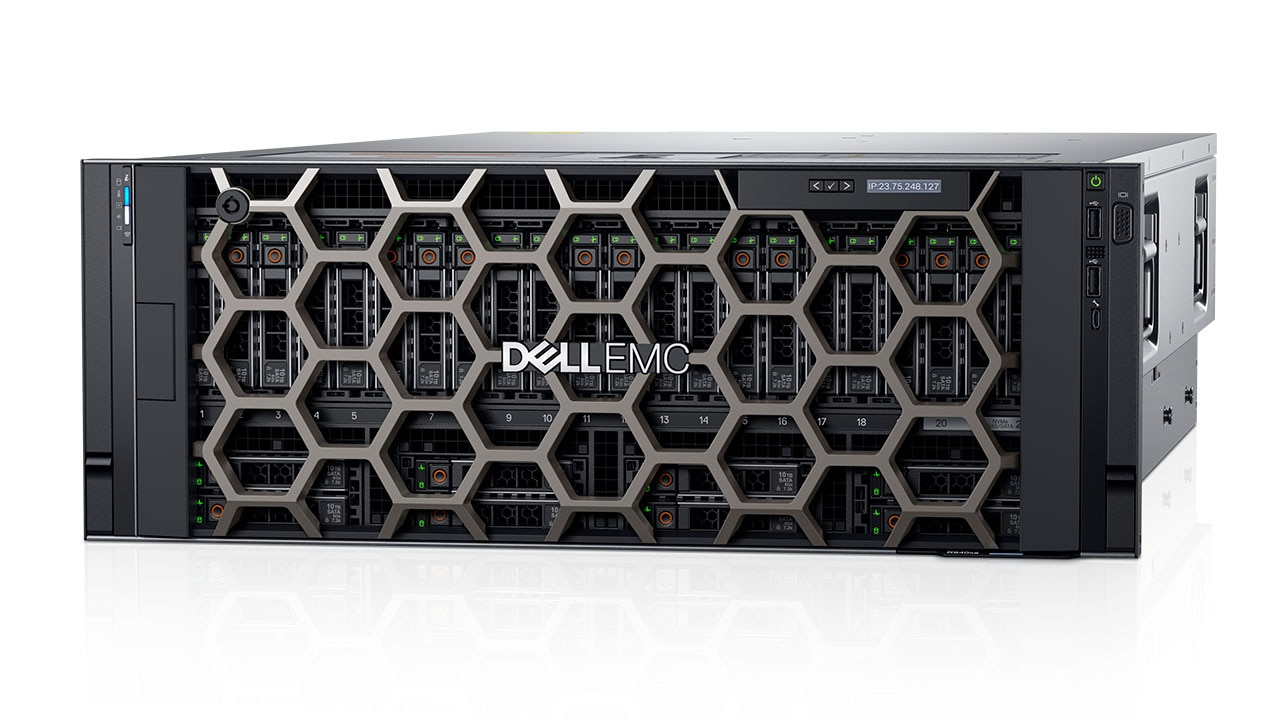

PowerEdge R940xa server
480 GB Rack Intel® Xeon® Gold 5222 3.8 GHz 8 GB DDR4-SDRAM 1600 W
Model R940xaPart no. PE_R940XA_12870
62 specifications
- ProcessorIntel® Xeon® Gold
- Memory8 GB
- Storage480 GB
- OSNo
- ColourBlack, Grey
- Processor manufacturerIntel
Overview
- Processor
- Intel® Xeon® Gold
- Memory
- 8 GB
- Storage
- 480 GB
- OS
- No
- Colour
- Black, Grey
- Processor manufacturer
- Intel
- Brand
- Dell
- Category
- Server
- Model
- R940xa
- Part numbers
- PE_R940XA_12870, 940XAV9201JP_VI_VP
- Also known as
- DELL PowerEdge R940xa server 480 GB Rack Intel® Xeon® Gold 5222 3.8 GHz 8 GB DDR4-SDRAM 1600 W
Specifications
62 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® Gold |
| Processor generation | 2nd Generation Intel® Xeon® Scalable |
| Processor model | 5222 |
| Processor frequency | 3.8 GHz |
| Processor boost frequency | 3.9 GHz |
| Processor cores | 4 |
| Processor cache | 16.5 MB |
| Number of processors installed | 2 |
| Thermal Design Power (TDP) | 105 W |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Maximum internal memory supported by processor | 1 TB |
| Maximum number of PCI Express lanes | 48 |
| Memory clock speeds supported by processor | 2933 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Processor codename | Cascade Lake |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 76.0 x 56.5 mm |
| Processor socket | LGA 3647 (Socket P) |
| Processor threads | 8 |
| Scalability | 4S |
| Supported instruction sets | AVX-512 |
| Tcase | 72 °C |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2933 MHz |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory data transfer rate | 2666 MT/s |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 480 GB |
| Number of HDDs installed | 0 |
| Supported HDD sizes | 2.5" |
| Number of SSDs installed | 1 |
| SSD capacity | 480 GB |
| SSD interface | SATA III |
| Optical drive type | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
| On-board graphics card model | Not available |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
| LAN controller | Broadcom 5720, Broadcom 57416 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack |
| Product colour | Black, Grey |
| Rack mounting | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Windows Server 2016 and 2012 R2 |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 192445 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 1600 W |
