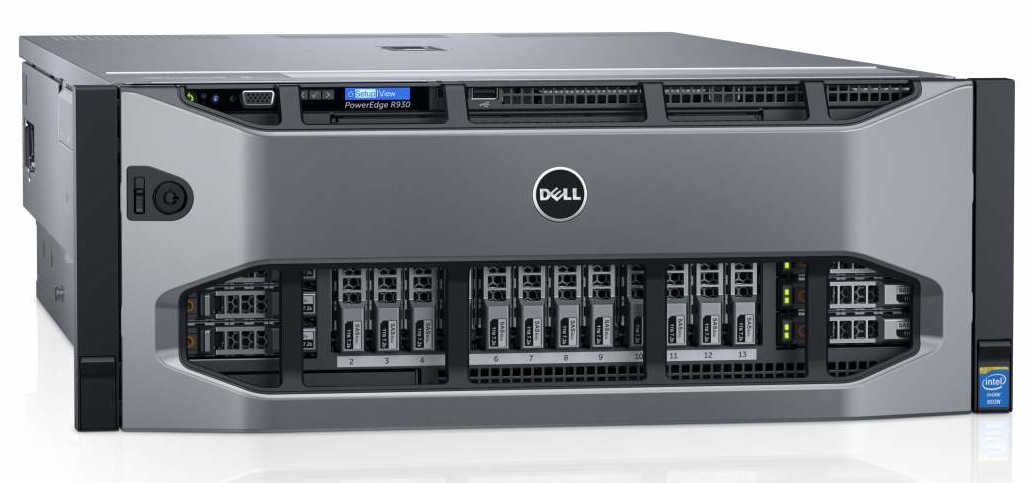

Dell PowerEdge R930 server
300 GB Rack (4U) Intel® Xeon® E7 v3 E7-4820V3 1.9 GHz 32 GB DDR4-SDRAM 1100 W
Model R930Part no. R930-5720EAN 5397063769414
125 specifications
- ProcessorIntel® Xeon® E7 v3
- Memory32 GB
- Storage300 GB
- OSNo
- Weight23.8 kg
- Processor manufacturerIntel
Overview
- Processor
- Intel® Xeon® E7 v3
- Memory
- 32 GB
- Storage
- 300 GB
- OS
- No
- Weight
- 23.8 kg
- Processor manufacturer
- Intel
- Brand
- Dell
- Category
- Server
- Model
- R930
- Part numbers
- R930-5720, PER93001, PE_R930_1219_A, ASPER930, R930-9414
- EAN / UPC
- 5397063769414, 5397063835720
- Also known as
- DELL PowerEdge R930 server 300 GB Rack (4U) Intel® Xeon® E7 v3 E7-4820V3 1.9 GHz 32 GB DDR4-SDRAM 1100 W
Specifications
125 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E7 v3 |
| Processor model | E7-4820V3 |
| Processor frequency | 1.9 GHz |
| Processor cores | 10 |
| Processor cache | 25 MB |
| Motherboard chipset | Intel® C602J |
| Memory channels supported by processor | Quad |
| Number of processors installed | 2 |
| Thermal Design Power (TDP) | 115 W |
| Processor cache type | Last Level Cache |
| System bus rate | 6.4 GT/s |
| Bus type | QPI |
| Compatible processor series | Intel® Xeon® |
| ECC supported by processor | Yes |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Maximum internal memory supported by processor | 1.53 TB |
| Maximum number of PCI Express lanes | 32 |
| Maximum number of SMP processors | 4 |
| Memory bandwidth supported by processor (max) | 102 GB/s |
| Memory clock speeds supported by processor | 1333,1600,1866,1066 MHz |
| Memory types supported by processor | DDR4-SDRAM, DDR3-SDRAM |
| Number of QPI links | 3 |
| PCI Express configurations | x4, x8, x16 |
| Physical Address Extension (PAE) | 46 bit |
| Physical Address Extension (PAE) | Yes |
| Processor code | SR224 |
| Processor codename | Haswell |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor package size | 52 x 45 mm |
| Processor series | Intel Xeon E7-4800 v3 |
| Processor socket | LGA 2011 (Socket R) |
| Processor threads | 20 |
| Scalability | S4S |
| Stepping | E0 |
| Supported instruction sets | AVX 2.0 |
| Supported processor sockets | LGA 2011 (Socket R) |
| Tcase | 70 °C |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | Yes |
| Intelligent Platform Management Interface (IPMI) support | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Memory clock speed | 1866 MHz |
| Memory slots | 96 |
| Maximum internal memory | 3 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 300 GB |
| Number of HDDs installed | 1 |
| HDD size | 2.5" |
| Number of HDDs supported | 4 |
| Supported HDD sizes | 2.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Optical drive type | DVD±RW |
| Supported storage drive interfaces | Serial ATA III |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
| On-board graphics card model | Not available |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Broadcom 5720 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 5 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (4U) |
| Rack rails | Yes |
| Redundant fans support | Yes |
Performance
| Specification | Value |
|---|---|
| Performance management | iDRAC8 Enterprise |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Microsoft Windows Server 2008 R2 Microsoft Windows Server 2012 Microsoft Windows Server 2012 R2 Novell SUSE Linux Enterprise Server Red Hat Enterprise Linux VMware ESX |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 4 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Instruction Replay Technology | No |
| Intel Instruction Replay Technology version | 0.00 |
| Intel Rapid Storage Technology | No |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 84677 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 1100 W |
| Number of redundant power supplies installed | 1 |
| Number of main power supplies | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482.4 mm |
| Depth | 802.3 mm |
| Height | 172.6 mm |
| Weight | 23.8 kg |
Other features
| Specification | Value |
|---|---|
| Graphics card | G200 |
| Graphics card family | Matrox |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
