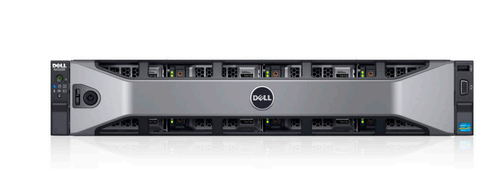

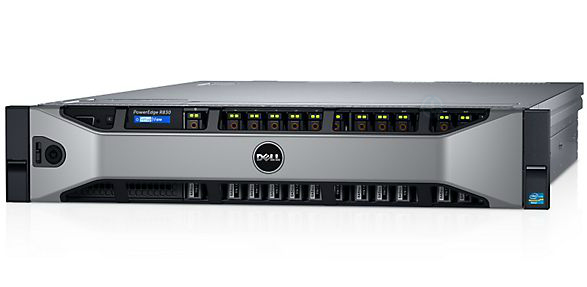

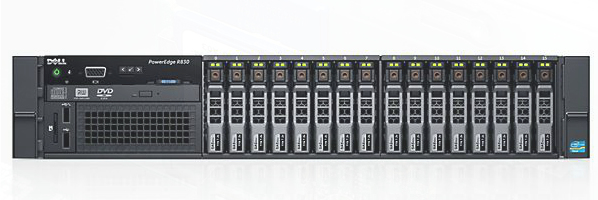

Dell PowerEdge R830 server
120 GB Rack (2U) Intel® Xeon® E5 v4 E5-4610V4 1.8 GHz 16 GB DDR4-SDRAM 750 W
Model R830Part no. PER830SAMPLE
94 specifications
- ProcessorIntel® Xeon® E5 v4
- Memory16 GB
- Storage120 GB
- OSNo
- Processor manufacturerIntel
- Ethernet LANYes
Overview
- Processor
- Intel® Xeon® E5 v4
- Memory
- 16 GB
- Storage
- 120 GB
- OS
- No
- Processor manufacturer
- Intel
- Ethernet LAN
- Yes
- Brand
- Dell
- Category
- Server
- Model
- R830
- Part numbers
- PER830SAMPLE, PE_R830_1190_B, ASPER830
- Also known as
- DELL PowerEdge R830 server 120 GB Rack (2U) Intel® Xeon® E5 v4 E5-4610V4 1.8 GHz 16 GB DDR4-SDRAM 750 W
Specifications
94 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E5 v4 |
| Processor model | E5-4610V4 |
| Processor frequency | 1.8 GHz |
| Processor boost frequency | 1.8 GHz |
| Processor cores | 10 |
| Processor cache | 25 MB |
| Motherboard chipset | Intel® C612 |
| Memory channels supported by processor | Quad |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 105 W |
| Processor cache type | Smart Cache |
| System bus rate | 6.4 GT/s |
| Bus type | QPI |
| Compatible processor series | Intel® Xeon® |
| ECC supported by processor | Yes |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Maximum internal memory supported by processor | 1.53 TB |
| Maximum number of PCI Express lanes | 40 |
| Memory bandwidth supported by processor (max) | 68 GB/s |
| Memory types supported by processor | DDR4-SDRAM |
| Number of QPI links | 2 |
| PCI Express configurations | 1x16, 1x4, 1x8 |
| Physical Address Extension (PAE) | 46 bit |
| Physical Address Extension (PAE) | Yes |
| Processor code | SR2SE |
| Processor codename | Broadwell |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 45 x 52.5 mm |
| Processor series | Intel® Xeon® E5-4600 v4 Family |
| Processor socket | LGA 2011-v3 |
| Processor threads | 20 |
| Scalability | 4S |
| Stepping | M0 |
| Supported instruction sets | AVX 2.0 |
| Tcase | 79 °C |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2400 MHz |
| Memory slots | 48 |
| Maximum internal memory | 3 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 120 GB |
| Number of SSDs installed | 1 |
| SSD interface | SATA |
| RAID support | Yes |
| Supported RAID controllers | PERC H330 |
| Hot-Plug support | Yes |
| Optical drive type | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Broadcom 5720 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB 2.0 ports quantity | 0 |
| Serial ports quantity | 0 |
| VGA (D-Sub) ports quantity | 0 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 5 |
| PCI Express x16 slots | 2 |
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Rack mounting | Yes |
Performance
| Specification | Value |
|---|---|
| Remote administration | iDRAC8 Express |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Microsoft Windows Server 2012 R2 Microsoft Windows Server 2012 Novell SUSE Linux Enterprise Server Red Hat Enterprise Linux VMware vSphere ESXi |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 4 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Flex Memory Access | No |
| Intel Instruction Replay Technology | No |
| Intel Instruction Replay Technology version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | No |
| Processor ARK ID | 93812 |
Power
| Specification | Value |
|---|---|
| Power supply | 750 W |
| Number of main power supplies | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 175 mm |
| Depth | 435 mm |
| Height | 360 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
