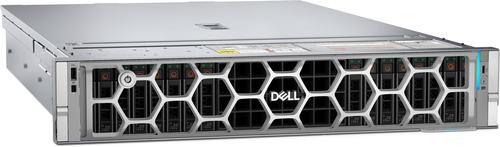

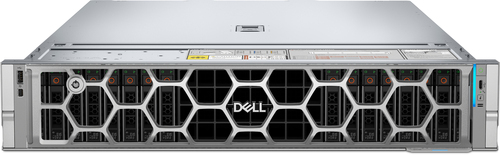

PowerEdge R7715 server
480 GB Rack (2U) AMD EPYC 9015 3.95 GHz 32 GB DDR5-SDRAM 800 W
Model R7715Part no. GL_PROMO_PER7715_1
62 specifications
- ProcessorAMD EPYC
- Memory32 GB
- Storage480 GB
- OSNo
- ColourGrey
- Processor manufacturerAMD
Overview
- Processor
- AMD EPYC
- Memory
- 32 GB
- Storage
- 480 GB
- OS
- No
- Colour
- Grey
- Processor manufacturer
- AMD
- Brand
- Dell
- Category
- Server
- Model
- R7715
- Part number
- GL_PROMO_PER7715_1
- Also known as
- DELL PowerEdge R7715 server 480 GB Rack (2U) AMD EPYC 9015 3.95 GHz 32 GB DDR5-SDRAM 800 W
Specifications
62 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD EPYC |
| Processor model | 9015 |
| Processor frequency | 3.95 GHz |
| Processor boost frequency | 4.1 GHz |
| Processor cores | 8 |
| Processor cache | 64 MB |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 125 W |
| Memory clock speeds supported by processor | 6400 MHz |
| Memory types supported by processor | DDR5-SDRAM |
| Processor threads | 16 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Buffered memory type | Registered (buffered) |
| Memory ranking | 1 |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 24x DIMM |
| Memory data transfer rate | 6400 MT/s |
| Maximum internal memory | 3 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 480 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 480 GB |
| SSD interface | SATA III |
| SSD size | 2.5" |
| Supported SSD sizes | 2.5" |
| Number of SSDs supported | 6 |
| RAID support | No |
| Supported RAID controllers | H365i |
| Hot-Plug support | Yes |
| Drive writes per day (DWPD) | 1 |
| Optical drive type | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 25 Gigabit Ethernet |
| LAN controller | Broadcom 57414 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Mini DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 5.x) slots | 3 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Grey |
Performance
| Specification | Value |
|---|---|
| Remote administration | iDRAC10, Enterprise 17G |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V RedHat Enterprise Linux VMware ESXi SUSE Linux Enterprise Server |
| Bundled software | Dell Connectivity Client |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | No |
| Power supply | 800 W |
| Number of main power supplies | 1 |
| Power supply input voltage | 100 - 240 V |
| Power cable length | 2 m |
| Power cable connector 1 | C13 coupler |
| Power cable connector 2 | C14 coupler |
| Power cable current | 10 A |
Certificates
| Specification | Value |
|---|---|
| 80 PLUS certification | 80 PLUS Titanium |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482 mm |
| Height | 86.8 mm |
Packaging content
| Specification | Value |
|---|---|
| Packaging content | ReadyRails Sliding Rails Without Cable Management Arm |
Other features
| Specification | Value |
|---|---|
| Bytes per sector | 512e |
| Data transfer rate | 6 Gbit/s |
| Target workload | Read Intensive (RI) |
