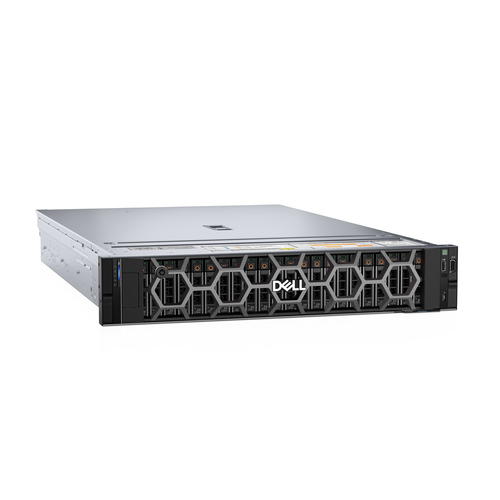

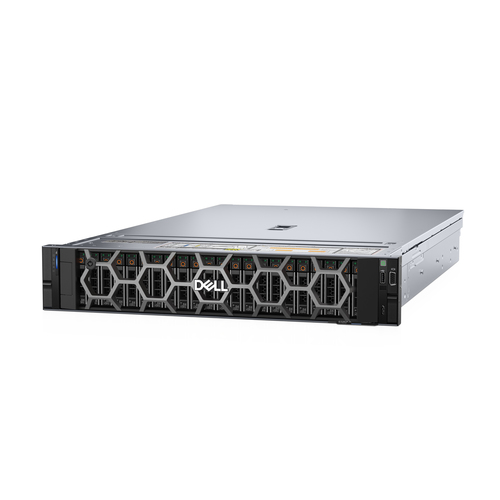

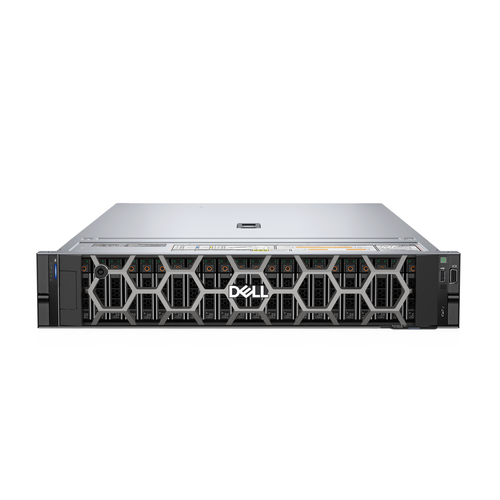

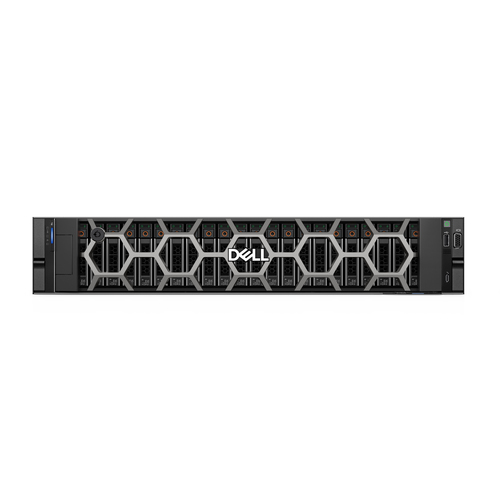

PowerEdge R7625 server
960 GB Rack (2U) AMD EPYC 9124 3 GHz 128 GB DDR5-SDRAM 1100 W
Model R7625Part no. PER762501A
59 specifications
- ProcessorAMD EPYC
- Memory128 GB
- Storage960 GB
- OSNo
- ColourBlack
- Processor manufacturerAMD
Overview
- Processor
- AMD EPYC
- Memory
- 128 GB
- Storage
- 960 GB
- OS
- No
- Colour
- Black
- Processor manufacturer
- AMD
- Brand
- Dell
- Category
- Server
- Model
- R7625
- Part numbers
- PER762501A, PER762504A, PER7625AI_ML_HPC
- Also known as
- DELL PowerEdge R7625 server 960 GB Rack (2U) AMD EPYC 9124 3 GHz 128 GB DDR5-SDRAM 1100 W
Specifications
59 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD EPYC |
| Processor model | 9124 |
| Processor frequency | 3 GHz |
| Processor boost frequency | 3.7 GHz |
| Processor cores | 16 |
| Processor cache | 64 MB |
| Number of processors installed | 2 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 128 GB |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 5600 MHz |
| Memory layout (slots x size) | 4 x 32 GB |
| Memory slots | 24x DIMM |
| Maximum internal memory | 3 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 960 GB |
| Number of SSDs installed | 2 |
| SSD capacity | 480 GB |
| SSD interface | SATA |
| SSD size | 2.5" |
| Supported SSD sizes | 3.5" |
| Number of SSDs supported | 12 |
| RAID support | Yes |
| Supported RAID controllers | PERC H355 |
| Hot-Plug support | Yes |
| Optical drive type | No |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Broadcom 5720 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Power cables quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black |
| Bezel | Yes |
| Rack rails | Yes |
Performance
| Specification | Value |
|---|---|
| Remote administration | iDRAC9 Enterprise 16G |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi |
| Bundled software | Dell Connectivity Client |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 1100 W |
| Number of redundant power supplies installed | 2 |
| Power supply input voltage | 100 - 240 V |
Certificates
| Specification | Value |
|---|---|
| 80 PLUS certification | 80 PLUS Titanium |
Carbon footprint
| Specification | Value |
|---|---|
| Carbon emissions, end-of-life (kg of CO2e) | 21 |
| Carbon emissions, energy usage (kg of CO2e) | 11385 |
| Carbon emissions, logistics (kg of CO2e) | 132 |
| Carbon emissions, manufacturing (kg of CO2e) | 3306 |
| PAIA version | 1.3.2 |
| Total carbon emissions, standard deviation (kg of CO2e) | 7312 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 3459 |
| Total carbon footprint (kg of CO2e) | 14844 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482 mm |
| Height | 86.8 mm |
Packaging content
| Specification | Value |
|---|---|
| Packaging content | ReadyRails Sliding Rails Without Cable Management Arm |
