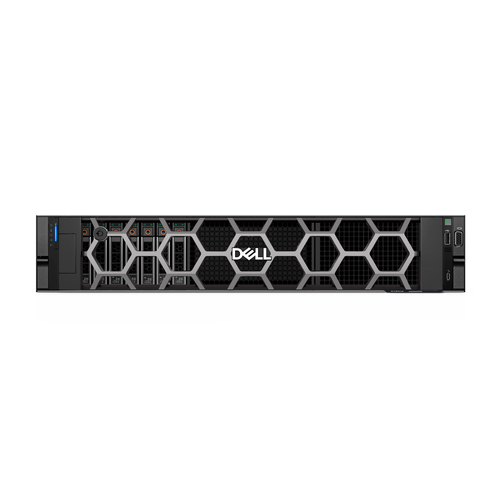

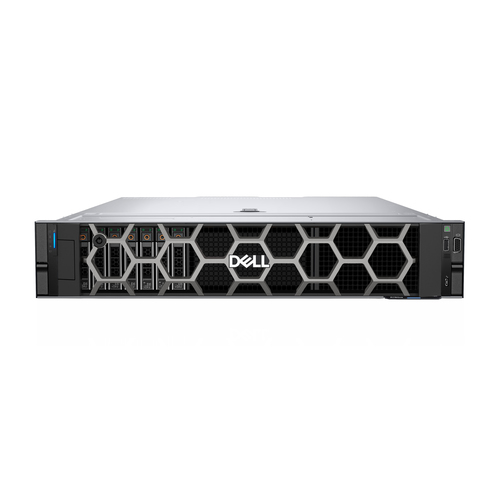

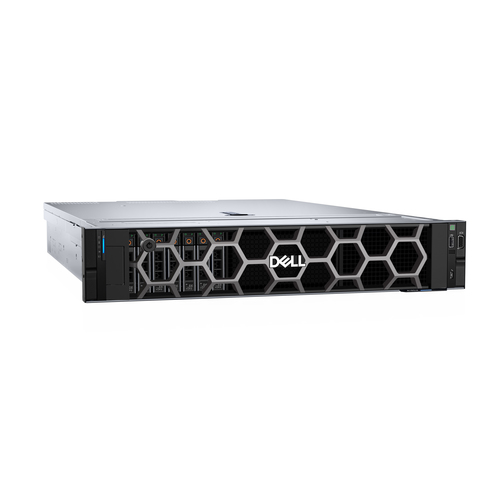

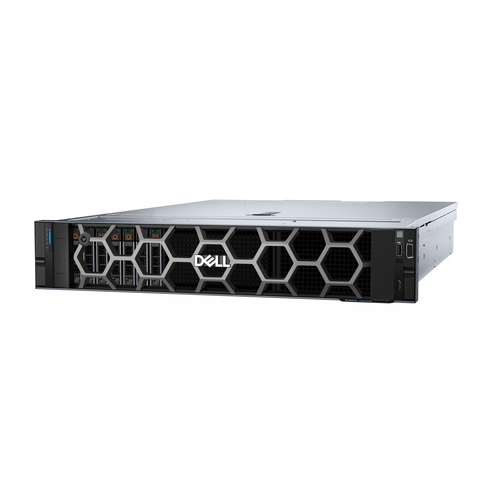

R760xs + WS 2022 Essentials
Model R760xs + WS 2022 EssentialsPart no. 0C17J+634-BYLI
70 specifications
- ProcessorIntel Xeon Silver
- Memory32 GB
- Storage480 GB
- OSWindows Server 2022 Essentials
- Weight28.6 kg
- ColourBlack
Overview
- Processor
- Intel Xeon Silver
- Memory
- 32 GB
- Storage
- 480 GB
- OS
- Windows Server 2022 Essentials
- Weight
- 28.6 kg
- Colour
- Black
- Brand
- Dell
- Category
- Server
- Model
- R760xs + WS 2022 Essentials
- Part number
- 0C17J+634-BYLI
- Also known as
- DELL PowerEdge R760xs + WS 2022 Essentials server 480 GB Rack (2U) Intel Xeon Silver 4410Y 2 GHz 32 GB DDR5-SDRAM 1100 W Windows Server 2022 Essentials
Specifications
70 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Silver |
| Processor model | 4410Y |
| Processor frequency | 2 GHz |
| Processor boost frequency | 3.9 GHz |
| Processor cores | 12 |
| Processor cache | 30 MB |
| Motherboard chipset | Intel C741 |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 150 W |
| Maximum internal memory supported by processor | 512 GB |
| Memory clock speeds supported by processor | 4000 MHz |
| Memory types supported by processor | DDR5-SDRAM |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Buffered memory type | Registered (buffered) |
| Memory ranking | 2 |
| Memory layout (slots x size) | 1 x 32 GB |
| Memory slots | 16x DIMM |
| Memory data transfer rate | 4800 MT/s |
| Maximum internal memory | 1 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 480 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 480 GB |
| SSD interface | SATA III |
| SSD size | 2.5" |
| Supported SSD sizes | 3.5" |
| Number of SSDs supported | 8 |
| RAID support | Yes |
| Supported RAID controllers | PERC H755 |
| Hot-Plug support | Yes |
| Drive writes per day (DWPD) | 1 |
| Internal drive bays | 8 |
| Supported storage drive interfaces | SAS, Serial ATA |
| Storage drive adapter included | Yes |
| Storage drive adapter type | 2.5" - 3.5" |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
| On-board graphics card model | Not available |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| VGA (D-Sub) ports quantity | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black |
| Bezel | Yes |
| Rack rails | Yes |
Performance
| Specification | Value |
|---|---|
| Remote administration | iDRAC9, Enterprise 16G |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Server 2022 Essentials |
| Compatible operating systems | Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware vSAN/ESXi |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 1100 W |
| Number of redundant power supplies supported | 2 |
| Number of redundant power supplies installed | 2 |
| Power supply input voltage | 100 - 240 V |
| Power cable length | 2 m |
| Power cable connector 1 | C13 coupler |
| Power cable connector 2 | C14 coupler |
| Power cable current | 12 A |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482 mm |
| Height | 86.8 mm |
| Weight | 28.6 kg |
Other features
| Specification | Value |
|---|---|
| Bytes per sector | 512 |
| Data transfer rate | 6 Gbit/s |
