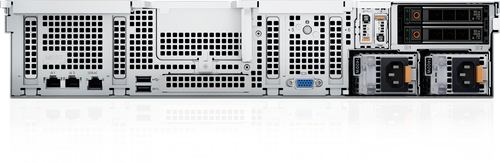

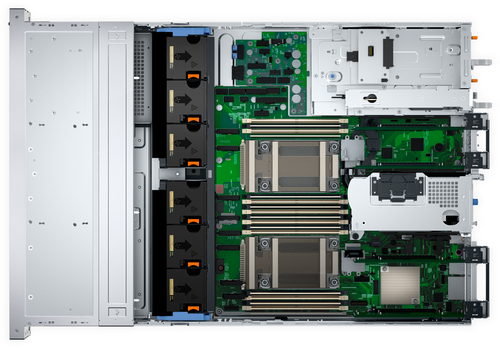

PowerEdge R760XS server
480 GB Rack (2U) Intel Xeon Silver 4514Y 2 GHz 32 GB DDR5-SDRAM 600 W
Model R760XSPart no. R760XS263_D6448Y480EAN 884116466321
72 specifications
- ProcessorIntel Xeon Silver
- Memory32 GB
- Storage480 GB
- OSNo
- Weight28.6 kg
- ColourBlack
Overview
- Processor
- Intel Xeon Silver
- Memory
- 32 GB
- Storage
- 480 GB
- OS
- No
- Weight
- 28.6 kg
- Colour
- Black
- Brand
- Dell
- Category
- Server
- Model
- R760XS
- Part numbers
- R760XS263_D6448Y480, R760XS263_D6448Y192, R760XS263_D6448Y1.92, R760XS263_D4514Y960, R760XS263_D4514Y480A, R760XS263_D4514Y2 +34 more
- EAN / UPC
- 884116466321, 884116486381, 884116486015, 884116466437 +16 more
- Also known as
- DELL PowerEdge R760XS server 480 GB Rack (2U) Intel Xeon Silver 4514Y 2 GHz 32 GB DDR5-SDRAM 600 W
Specifications
72 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Silver |
| Processor model | 4514Y |
| Processor frequency | 2 GHz |
| Processor boost frequency | 3.4 GHz |
| Processor cores | 16 |
| Processor cache | 30 MB |
| Motherboard chipset | Intel C741 |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 150 W |
| Maximum internal memory supported by processor | 512 GB |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Buffered memory type | Registered (buffered) |
| Memory ranking | 2 |
| Memory clock speed | 4400 MHz |
| Memory slots | 16x DIMM |
| Memory data transfer rate | 5600 MT/s |
| Maximum internal memory | 1 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 480 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 480 GB |
| SSD interface | SATA III |
| SSD size | 2.5" |
| Supported SSD sizes | 3.5" |
| RAID support | Yes |
| Supported RAID controllers | PERC H755 |
| Hot-Plug support | Yes |
| Drive writes per day (DWPD) | 1 |
| Internal drive bays | 12 |
| Optical drive type | No |
| Supported storage drive interfaces | SAS, Serial ATA |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Broadcom 5720 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Power cables quantity | 2 |
| VGA (D-Sub) ports quantity | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black |
| Bezel | Yes |
| Rack rails | Yes |
Performance
| Specification | Value |
|---|---|
| Remote administration | DRAC9, Data center 16G |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware vSAN/ESXi |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 600 W |
| Number of redundant power supplies supported | 2 |
| Number of redundant power supplies installed | 2 |
| Power cable length | 3 m |
| Power cable connector 1 | C13 coupler |
| Power cable current | 15 A |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12000 m |
Carbon footprint
| Specification | Value |
|---|---|
| Carbon emissions, end-of-life (kg of CO2e) | 0 |
| Carbon emissions, energy usage (kg of CO2e) | 6055.14 |
| Carbon emissions, logistics (kg of CO2e) | 133.08 |
| Carbon emissions, manufacturing (kg of CO2e) | 465.78 |
| PAIA version | 1.3.2, 2022 |
| Total carbon emissions, standard deviation (kg of CO2e) | 3747 |
| Total carbon footprint (kg of CO2e) | 6654 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482 mm |
| Height | 86.8 mm |
| Weight | 28.6 kg |
Packaging content
| Specification | Value |
|---|---|
| Packaging content | Riser Config 2, Butterfly Gen4 Riser (x8/x8) |
Other features
| Specification | Value |
|---|---|
| Bytes per sector | 512 |
| Data transfer rate | 6 Gbit/s |
