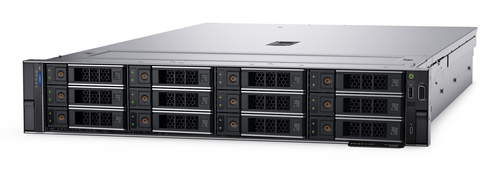

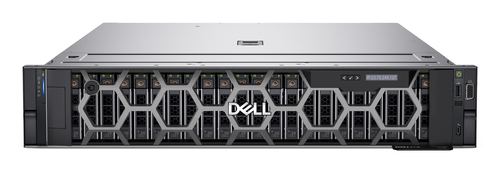

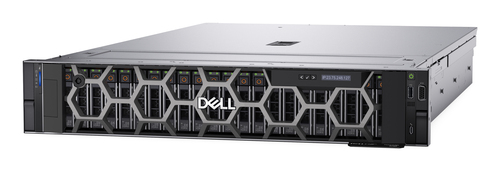

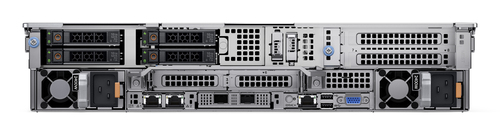

R750 + 770-BDRQ
Model R750 + 770-BDRQPart no. 770-BDRQ | 210-AYNB-M0LD
51 specifications
- ProcessorIntel® Xeon® Gold
- Memory32 GB
- Storage960 GB
- OSNo
- Weight27.7 kg
- ColourBlack
Overview
- Processor
- Intel® Xeon® Gold
- Memory
- 32 GB
- Storage
- 960 GB
- OS
- No
- Weight
- 27.7 kg
- Colour
- Black
- Brand
- Dell
- Category
- Server
- Model
- R750 + 770-BDRQ
- Part number
- 770-BDRQ | 210-AYNB-M0LD
- Also known as
- DELL PowerEdge R750 + 770-BDRQ server 960 GB Rack (2U) Intel® Xeon® Gold 6330 2 GHz 32 GB DDR4-SDRAM 800 W
Specifications
51 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® Gold |
| Processor model | 6330 |
| Processor frequency | 2 GHz |
| Processor boost frequency | 3.1 GHz |
| Processor cache | 42 MB |
| Number of processors installed | 1 |
| Maximum internal memory supported by processor | 4 TB |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 32x DIMM |
| Memory data transfer rate | 3200 MT/s |
| Maximum internal memory | 8 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 960 GB |
| Number of SSDs installed | 2 |
| SSD capacity | 460 GB |
| SSD interface | SATA III |
| SSD size | 3.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| Supported RAID controllers | PERC H755 |
| Hot-Plug support | Yes |
| Optical drive type | No |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Broadcom 5720 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black |
| Bezel | Yes |
Performance
| Specification | Value |
|---|---|
| Remote administration | iDRAC9 Enterprise |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 800 W |
| Number of redundant power supplies supported | 2 |
| Number of redundant power supplies installed | 2 |
Operational conditions
| Specification | Value |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482 mm |
| Depth | 736.3 mm |
| Height | 86.8 mm |
| Weight | 27.7 kg |
Other features
| Specification | Value |
|---|---|
| Drive bays | 24 |
