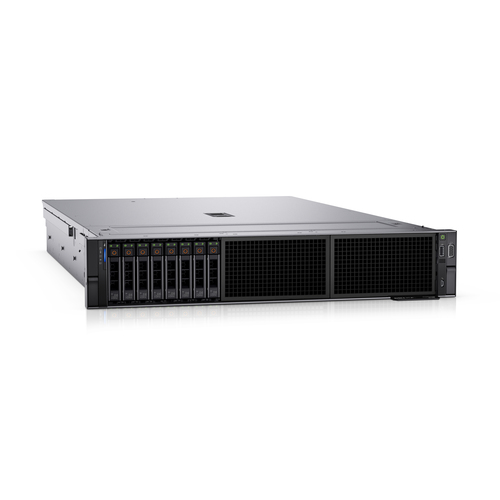

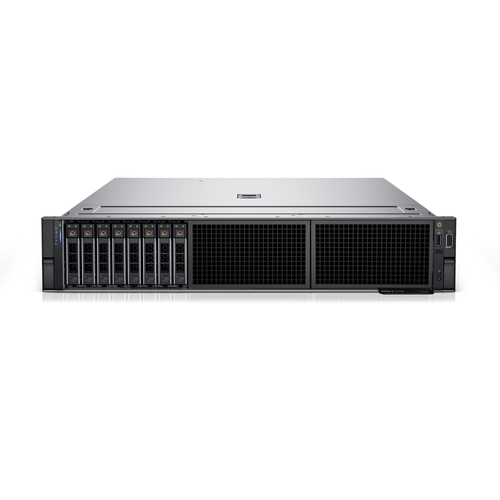

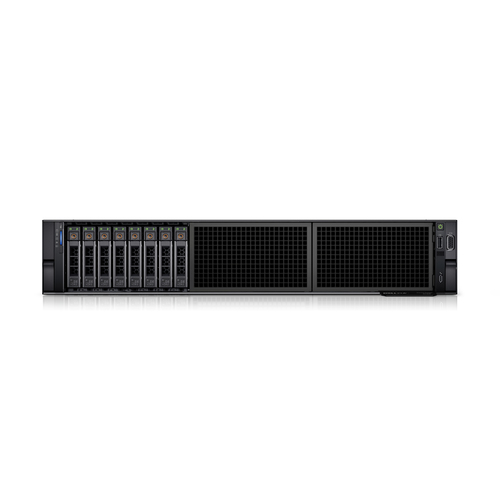

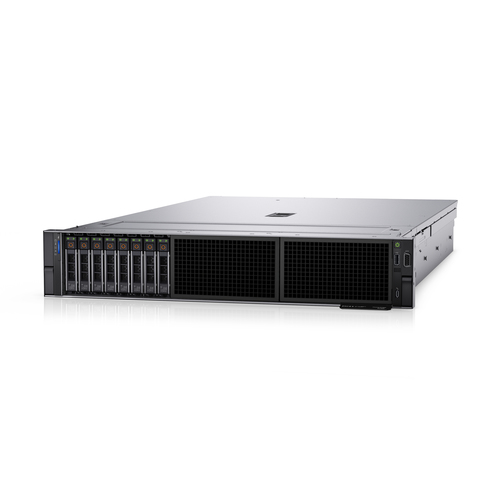

PowerEdge R750 server
800 GB Rack (2U) Intel® Xeon® Gold 6330 2 GHz 16 GB DDR4-SDRAM 1400 W
Model R750Part no. EMEA_PER750SPL1
52 specifications
- ProcessorIntel® Xeon® Gold
- Memory16 GB
- Storage800 GB
- OSNo
- Weight27.7 kg
- ColourBlack
Overview
- Processor
- Intel® Xeon® Gold
- Memory
- 16 GB
- Storage
- 800 GB
- OS
- No
- Weight
- 27.7 kg
- Colour
- Black
- Brand
- Dell
- Category
- Server
- Model
- R750
- Part numbers
- EMEA_PER750SPL1, PER7502G6330643Y, 210-AYNB-J905, 210-AYNB-J9R1, R750XSSNSFY23Q3MX, 210-AYNB-LK8J +5 more
- Also known as
- DELL PowerEdge R750 server 800 GB Rack (2U) Intel® Xeon® Gold 6330 2 GHz 16 GB DDR4-SDRAM 1400 W
Specifications
52 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® Gold |
| Processor generation | 3rd Generation Intel® Xeon® Scalable |
| Processor model | 6330 |
| Processor frequency | 2 GHz |
| Processor boost frequency | 3.1 GHz |
| Processor cache | 42 MB |
| Number of processors installed | 1 |
| Maximum internal memory supported by processor | 1 TB |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory ranking | 2 |
| Memory clock speed | 3200 MHz |
| Memory slots | 32x DIMM |
| Maximum internal memory | 2 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 800 GB |
| SSD capacity | 800 GB |
| SSD interface | Serial Attached SCSI (SAS) |
| SSD size | 2.5" |
| Number of SSDs supported | 1 |
| RAID support | Yes |
| Supported RAID controllers | PERC H745 |
| Hot-Plug support | Yes |
| Optical drive type | No |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel® I350 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black |
| Rack mounting | Yes |
| Rack rails | Yes |
Performance
| Specification | Value |
|---|---|
| Remote administration | iDRAC9, Enterprise 15G |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Power
| Specification | Value |
|---|---|
| Power supply | 1400 W |
| Power supply input voltage | 240 V |
| Power cable length | 2 m |
| Power cable connector 1 | C13 coupler |
| Power cable connector 2 | C14 coupler |
| Power cable current | 10 A |
Operational conditions
| Specification | Value |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482 mm |
| Depth | 736.3 mm |
| Height | 86.8 mm |
| Weight | 27.7 kg |
