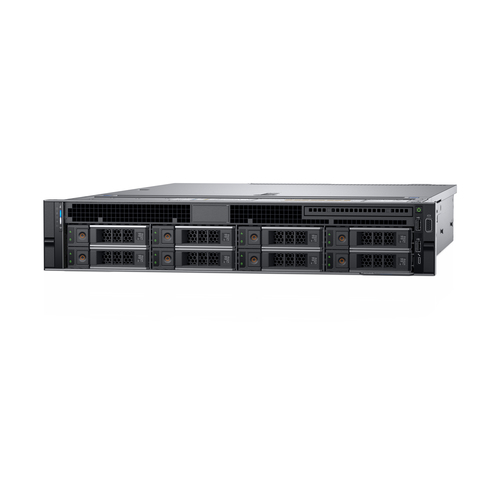

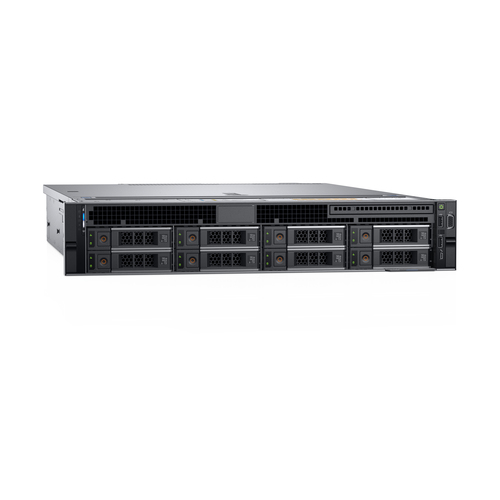

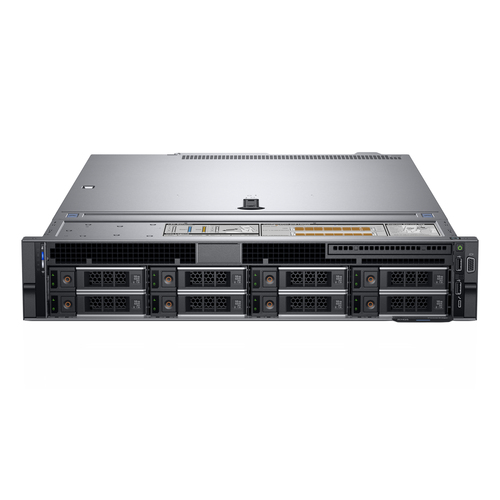

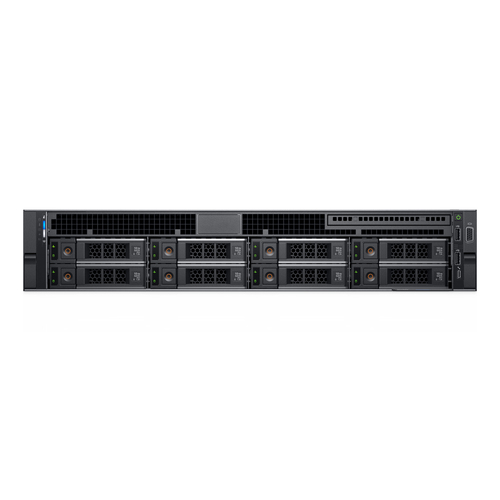

PowerEdge R7425 server
1 TB Rack (2U) AMD EPYC 7251 2.1 GHz 16 GB DDR4-SDRAM 750 W
Model R7425Part no. 2XWWJ
56 specifications
- ProcessorAMD EPYC
- Memory16 GB
- Storage1 TB
- OSNo
- ColourBlack
- Cabling technology10/100/1000Base-T(X)
Overview
- Processor
- AMD EPYC
- Memory
- 16 GB
- Storage
- 1 TB
- OS
- No
- Colour
- Black
- Cabling technology
- 10/100/1000Base-T(X)
- Brand
- Dell
- Category
- Server
- Model
- R7425
- Part number
- 2XWWJ
- Also known as
- DELL PowerEdge R7425 server 1 TB Rack (2U) AMD EPYC 7251 2.1 GHz 16 GB DDR4-SDRAM 750 W
Specifications
56 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor family | AMD EPYC |
| Processor model | 7251 |
| Processor frequency | 2.1 GHz |
| Processor boost frequency | 2.9 GHz |
| Processor cores | 8 |
| Processor cache | 32 MB |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 120 W |
| Processor cache type | L3 |
| Processor threads | 16 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Buffered memory type | Registered (buffered) |
| Memory ranking | 2 |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 32 |
| Memory data transfer rate | 2666 MT/s |
| Maximum internal memory | 256 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| HDD interface | Serial ATA III |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Number of HDDs supported | 8 |
| Supported HDD sizes | 3.5" |
| Supported RAID controllers | PERC H740P |
| Optical drive type | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
| On-board graphics card model | Not available |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
| LAN controller | Intel® X520, Intel® I350 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black |
| Rack mounting | Yes |
| Rack rails | Yes |
Performance
| Specification | Value |
|---|---|
| Remote administration | iDRAC9 Enterprise |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | - Microsoft Windows Server 2012 R2 - Microsoft Windows Server 2016 - Red Hat Enterprise Linux 7.4 - SUSE Linux SLES 15 - Ubuntu Server 18.04.1 - VMware vSphere 2016 U1 (ESXi 6.5 U1) |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 750 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 434 mm |
| Depth | 677.3 mm |
| Height | 86.8 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
