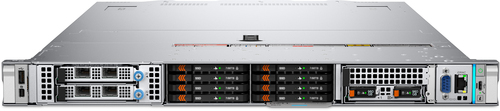

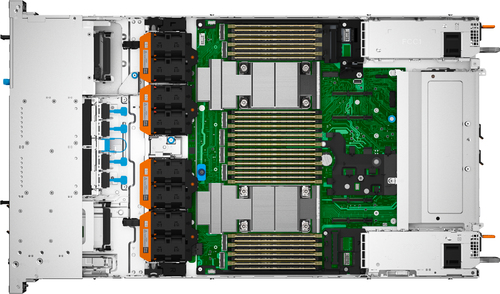

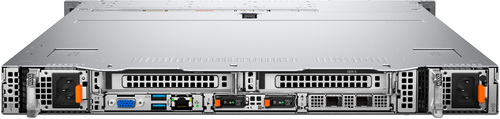

PowerEdge R670 server
1.92 TB Rack (1U) Intel Xeon 6 6520P 2.4 GHz 256 GB DDR5-SDRAM 1100 W
Model R670Part no. EMEA_PROMO_R670_SPL1
59 specifications
- ProcessorIntel Xeon 6
- Memory256 GB
- Storage1.92 TB
- OSNo
- ColourGrey
- Processor manufacturerIntel
Overview
- Processor
- Intel Xeon 6
- Memory
- 256 GB
- Storage
- 1.92 TB
- OS
- No
- Colour
- Grey
- Processor manufacturer
- Intel
- Brand
- Dell
- Category
- Server
- Model
- R670
- Part numbers
- EMEA_PROMO_R670_SPL1, PROMO_R670_1, PROMO_R670_2, R670264_D6517P2.4, R670264_D6517P3.84, R670264_D6517P3.84A +3 more
- Also known as
- DELL PowerEdge R670 server 1.92 TB Rack (1U) Intel Xeon 6 6520P 2.4 GHz 256 GB DDR5-SDRAM 1100 W
Specifications
59 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon 6 |
| Processor model | 6520P |
| Processor frequency | 2.4 GHz |
| Processor boost frequency | 4 GHz |
| Processor cores | 24 |
| Processor cache | 144 MB |
| Number of processors installed | 2 |
| Thermal Design Power (TDP) | 210 W |
| System bus rate | 24 GT/s |
| Memory clock speeds supported by processor | 6400 MHz |
| Memory types supported by processor | DDR5-SDRAM |
| Processor threads | 48 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 256 GB |
| Internal memory type | DDR5-SDRAM |
| Memory ranking | 2 |
| Memory layout (slots x size) | 8 x 32 GB |
| Memory slots | 32x DIMM |
| Maximum internal memory | 8 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1.92 TB |
| Number of SSDs installed | 2 |
| SSD capacity | 960 GB |
| SSD interface | SATA III |
| SSD size | 2.5" |
| Supported SSD sizes | 2.5" |
| Number of SSDs supported | 6 |
| Supported RAID controllers | H965i |
| Hot-Plug support | Yes |
| Drive writes per day (DWPD) | 1 |
| Optical drive type | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| LAN controller | Broadcom 57504 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Power cables quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Grey |
Performance
| Specification | Value |
|---|---|
| Remote administration | iDRAC9, Enterprise 16G |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Canonical Ubuntu Server LTS RedHat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi Windows Server Windows Server Datacenter |
| Bundled software | Dell Connectivity Client - Enabled 17G |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 1100 W |
| Number of redundant power supplies installed | 2 |
| Power supply input voltage | 100 - 240 V |
| Power cable length | 2 m |
| Power cable connector 1 | C13 coupler |
| Power cable connector 2 | C14 coupler |
| Power cable current | 10 A |
Certificates
| Specification | Value |
|---|---|
| 80 PLUS certification | 80 PLUS Titanium |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482 mm |
| Height | 42.8 mm |
Packaging content
| Specification | Value |
|---|---|
| Packaging content | ReadyRails Sliding Rails Without Cable Management Arm or Strain Relief Bar |
Other features
| Specification | Value |
|---|---|
| Bytes per sector | 512e |
| Data transfer rate | 6 Gbit/s |
| Target workload | Read Intensive (RI) |
| Open Compute Project (OCP) | 1 OCP - 1 Rear Blank |
