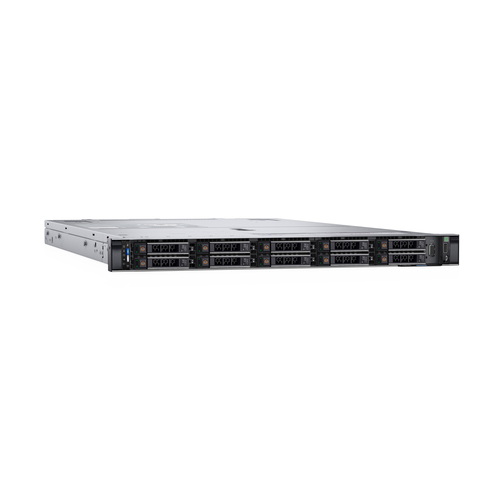

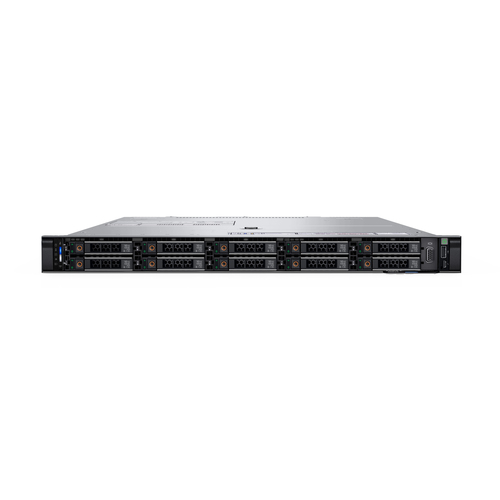

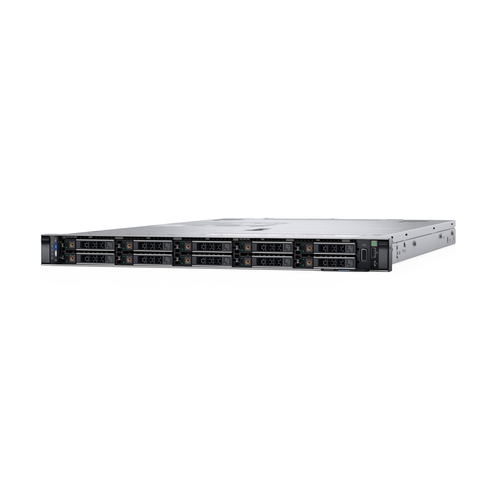

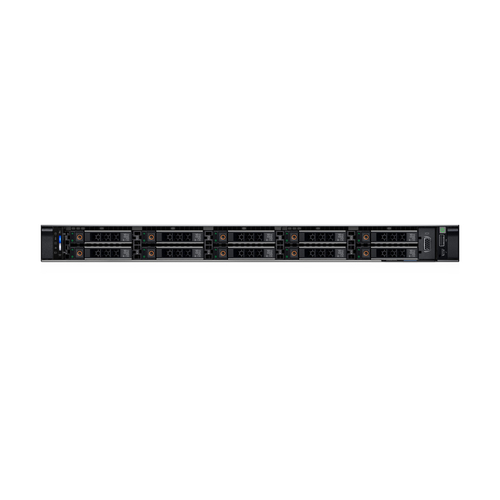

PowerEdge R6625 server
960 GB Rack (1U) AMD EPYC 9124 3 GHz 128 GB DDR4-SDRAM 1100 W
Model R6625Part no. 210-BGXX-WZD1
63 specifications
- ProcessorAMD EPYC
- Memory128 GB
- Storage960 GB
- OSNo
- Weight20.4 kg
- ColourBlack
Overview
- Processor
- AMD EPYC
- Memory
- 128 GB
- Storage
- 960 GB
- OS
- No
- Weight
- 20.4 kg
- Colour
- Black
- Brand
- Dell
- Category
- Server
- Model
- R6625
- Part numbers
- 210-BGXX-WZD1, PER662501A, PER662504A, PER6625HPC, 210-BGXX-QNVH, 210-BGXX-TW66 +1 more
- Also known as
- DELL PowerEdge R6625 server 960 GB Rack (1U) AMD EPYC 9124 3 GHz 128 GB DDR4-SDRAM 1100 W
Specifications
63 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD EPYC |
| Processor model | 9124 |
| Processor frequency | 3 GHz |
| Processor boost frequency | 3.7 GHz |
| Processor cores | 16 |
| Processor cache | 64 MB |
| Motherboard chipset | AMD SoC |
| Number of processors installed | 2 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 128 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 5600 MHz |
| Memory layout (slots x size) | 4 x 32 GB |
| Memory slots | 24x DIMM |
| Maximum internal memory | 3 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 960 GB |
| Number of SSDs installed | 2 |
| SSD capacity | 480 GB |
| SSD interface | SATA |
| SSD size | 2.5" |
| Supported SSD sizes | 2.5" |
| Number of SSDs supported | 10 |
| RAID support | Yes |
| Supported RAID controllers | PERC H355 |
| Hot-Plug support | Yes |
| Optical drive type | No |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Broadcom 5720 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black |
| Bezel | Yes |
| Rack rails | Yes |
Performance
| Specification | Value |
|---|---|
| Remote administration | iDRAC9 Enterprise 16G |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Canonical Ubuntu Server LTS ● Microsoft Windows Server with Hyper-V ● Red Hat Enterprise Linux ● SUSE Linux Enterprise Server ● VMware ESXi |
| Bundled software | Dell Connectivity Client |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 1100 W |
| Number of redundant power supplies installed | 2 |
| Power supply input voltage | 100 - 240 V |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12000 m |
Certificates
| Specification | Value |
|---|---|
| 80 PLUS certification | 80 PLUS Titanium |
Carbon footprint
| Specification | Value |
|---|---|
| Carbon emissions, end-of-life (kg of CO2e) | 19 |
| Carbon emissions, energy usage (kg of CO2e) | 12173 |
| Carbon emissions, logistics (kg of CO2e) | 121 |
| Carbon emissions, manufacturing (kg of CO2e) | 1899 |
| PAIA version | 1.3.2 |
| Total carbon emissions, standard deviation (kg of CO2e) | 7429 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 2039 |
| Total carbon footprint (kg of CO2e) | 14212 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482 mm |
| Height | 42.8 mm |
| Weight | 20.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Packaging content | ReadyRails Sliding Rails Without Cable Management Arm or Strain Relief Bar |
