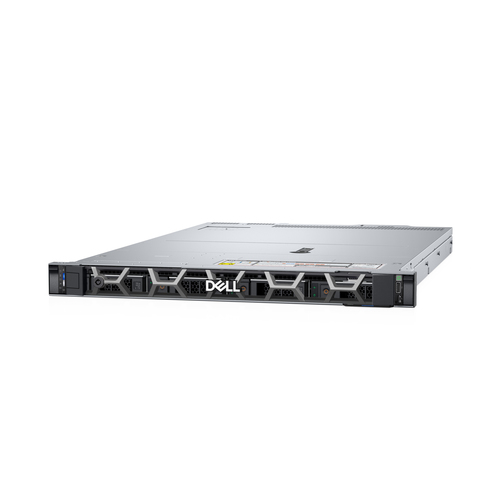

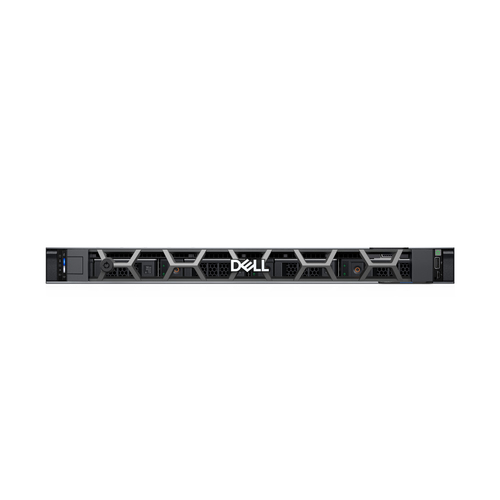

R660xs + WS 2022 Std + 5 RDS
Model R660xs + WS 2022 Std + 5 RDSPart no. 9VV4D+634-BYKR+634-BYLB
63 specifications
- ProcessorIntel Xeon Silver
- Memory32 GB
- Storage480 GB
- OSWindows Server 2022 Standard
- ColourBlack
- Processor manufacturerIntel
Overview
- Processor
- Intel Xeon Silver
- Memory
- 32 GB
- Storage
- 480 GB
- OS
- Windows Server 2022 Standard
- Colour
- Black
- Processor manufacturer
- Intel
- Brand
- Dell
- Category
- Server
- Model
- R660xs + WS 2022 Std + 5 RDS
- Part numbers
- 9VV4D+634-BYKR+634-BYLB, VJ454+634-BYKR+634-BYLB
- Also known as
- DELL PowerEdge R660xs + WS 2022 Std + 5 RDS server 480 GB Rack (1U) Intel Xeon Silver 4410T 2.7 GHz 32 GB DDR5-SDRAM 700 W Windows Server 2022 Standard
Specifications
63 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Silver |
| Processor model | 4410T |
| Processor frequency | 2.7 GHz |
| Processor boost frequency | 4 GHz |
| Processor cores | 10 |
| Processor cache | 26.25 MB |
| Number of processors installed | 1 |
| Maximum internal memory supported by processor | 512 GB |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Buffered memory type | Registered (buffered) |
| Memory ranking | 2 |
| Memory layout (slots x size) | 1 x 32 GB |
| Memory slots | 16x DIMM |
| Memory data transfer rate | 4800 MT/s |
| Maximum internal memory | 1 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 480 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 480 GB |
| SSD interface | SATA III |
| SSD size | 2.5" |
| RAID support | Yes |
| Supported RAID controllers | PERC H755 |
| Hot-Plug support | Yes |
| Internal drive bays | 8 |
| Supported storage drive interfaces | SAS, Serial ATA |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Broadcom 5720 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black |
| Bezel | Yes |
| Rack rails | Yes |
Performance
| Specification | Value |
|---|---|
| Remote administration | iDRAC9, Enterprise 16G |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Server 2022 Standard |
| Compatible operating systems | Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware vSAN/ESXi |
| Bundled software | 5 RDS |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 700 W |
| Number of redundant power supplies supported | 2 |
| Number of redundant power supplies installed | 2 |
| Power supply input voltage | 200 - 240 V |
| Power cable length | 2 m |
| Power cable connector 1 | C13 coupler |
| Power cable connector 2 | C14 coupler |
| Power cable current | 12 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 434 mm |
| Height | 42.8 mm |
Other features
| Specification | Value |
|---|---|
| Bytes per sector | 512 |
| Data transfer rate | 6 Gbit/s |
