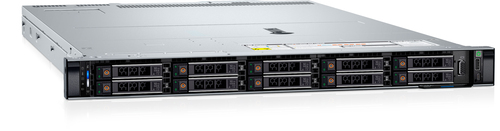

PowerEdge R660XS server
2 TB Rack (1U) Intel Xeon Silver 4514Y 2 GHz 16 GB DDR5-SDRAM 1400 W
Model R660XSPart no. R660XS263_D4514Y2EAN 5397184980606
71 specifications
- ProcessorIntel Xeon Silver
- Memory16 GB
- Storage2 TB
- OSNo
- ColourBlack
- Processor manufacturerIntel
Overview
- Processor
- Intel Xeon Silver
- Memory
- 16 GB
- Storage
- 2 TB
- OS
- No
- Colour
- Black
- Processor manufacturer
- Intel
- Brand
- Dell
- Category
- Server
- Model
- R660XS
- Part numbers
- R660XS263_D4514Y2, R660XS263_D4514Y1.92, R660XS263_D4510480A, R660XS263_4514Y480, R660XS263_4514Y2, R660XS263_5418Y480 +34 more
- EAN / UPC
- 5397184980606, 5397184843451, 5397184843475, 5397184843468 +12 more
- Also known as
- DELL PowerEdge R660XS server 2 TB Rack (1U) Intel Xeon Silver 4514Y 2 GHz 16 GB DDR5-SDRAM 1400 W
Specifications
71 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Silver |
| Processor model | 4514Y |
| Processor frequency | 2 GHz |
| Processor boost frequency | 3.4 GHz |
| Processor cores | 16 |
| Processor cache | 30 MB |
| Motherboard chipset | Intel C741 |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 150 W |
| System bus rate | 16 GT/s |
| Memory clock speeds supported by processor | 4400 MHz |
| Memory types supported by processor | DDR5-SDRAM |
| Processor threads | 32 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR5-SDRAM |
| Buffered memory type | Registered (buffered) |
| Memory ranking | 1 |
| Memory slots | 16x DIMM |
| Memory data transfer rate | 5600 MT/s |
| Maximum internal memory | 1 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 2 TB |
| Number of HDDs installed | 1 |
| HDD capacity | 2 TB |
| HDD interface | SATA III |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Number of HDDs supported | 4 |
| Supported HDD sizes | 3.5" |
| RAID support | Yes |
| Supported RAID controllers | PERC H755 SAS Front |
| Hot-Plug support | Yes |
| Optical drive type | No |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Broadcom 57416 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| VGA (D-Sub) ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black |
| Rack rails | Yes |
Performance
| Specification | Value |
|---|---|
| Remote administration | iDRAC9, Enterprise 16G |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware vSAN/ESXi |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 1400 W |
| Number of redundant power supplies supported | 2 |
| Number of redundant power supplies installed | 2 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12000 m |
Carbon footprint
| Specification | Value |
|---|---|
| Carbon emissions, end-of-life (kg of CO2e) | 0 |
| Carbon emissions, energy usage (kg of CO2e) | 5970.51 |
| Carbon emissions, logistics (kg of CO2e) | 131.22 |
| Carbon emissions, manufacturing (kg of CO2e) | 459.27 |
| PAIA version | 1.3.2, 2022 |
| Total carbon emissions, standard deviation (kg of CO2e) | 3677 |
| Total carbon footprint (kg of CO2e) | 6561 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 434 mm |
| Height | 42.8 mm |
Packaging content
| Specification | Value |
|---|---|
| Packaging content | Power Cord - C13, 3M, 125V, 15A |
Other features
| Specification | Value |
|---|---|
| Bytes per sector | 512n |
| Data transfer rate | 6 Gbit/s |
| Open Compute Project (OCP) | NIC 3.0 |
