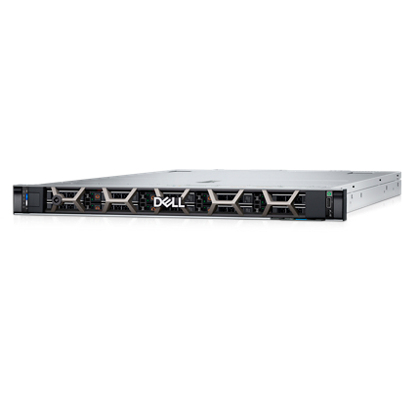

PowerEdge R660 server
2.4 TB Rack (1U) Intel® Xeon® Gold 6526Y 2.8 GHz 32 GB DDR5-SDRAM 1400 W
Model R660Part no. R660264_D6526Y2.4EAN 884116485803
68 specifications
- ProcessorIntel® Xeon® Gold
- Memory32 GB
- Storage2.4 TB
- OSNo
- ColourBlack
- Processor manufacturerIntel
Overview
- Processor
- Intel® Xeon® Gold
- Memory
- 32 GB
- Storage
- 2.4 TB
- OS
- No
- Colour
- Black
- Processor manufacturer
- Intel
- Brand
- Dell
- Category
- Server
- Model
- R660
- Part numbers
- R660264_D6526Y2.4, R660264_D6548Y3.84, R660264_D6548Y2.4, R660264_D6548Y3.84A, PER6604A, EMEA_PER6601A +2 more
- EAN / UPC
- 884116485803
- Also known as
- DELL PowerEdge R660 server 2.4 TB Rack (1U) Intel® Xeon® Gold 6526Y 2.8 GHz 32 GB DDR5-SDRAM 1400 W
Specifications
68 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® Gold |
| Processor generation | Intel Xeon Scalable 5th Gen |
| Processor model | 6526Y |
| Processor frequency | 2.8 GHz |
| Processor boost frequency | 3.9 GHz |
| Processor cores | 16 |
| Processor cache | 37.5 MB |
| Number of processors installed | 2 |
| Thermal Design Power (TDP) | 195 W |
| System bus rate | 20 GT/s |
| Memory clock speeds supported by processor | 5200 MHz |
| Memory types supported by processor | DDR5-SDRAM |
| Processor threads | 32 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Buffered memory type | Registered (buffered) |
| Memory slots | 32x DIMM |
| Memory data transfer rate | 5600 MT/s |
| Maximum internal memory | 8 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 2.4 TB |
| Number of HDDs installed | 1 |
| HDD capacity | 2.4 TB |
| HDD interface | Serial Attached SCSI (SAS) |
| HDD speed | 10000 RPM |
| HDD size | 2.5" |
| Number of HDDs supported | 8 |
| Supported HDD sizes | 2.5" |
| Supported RAID controllers | PERC H755 |
| Hot-Plug support | Yes |
| Optical drive type | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| LAN controller | Broadcom 5720, Broadcom 57416 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black |
| Bezel | Yes |
Performance
| Specification | Value |
|---|---|
| Remote administration | iDRAC9 Datacenter 16G |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 1400 W |
| Number of redundant power supplies installed | 2 |
| Power supply input voltage | 100 - 240 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3050 m |
| Non-operating altitude | 0 - 12000 m |
Carbon footprint
| Specification | Value |
|---|---|
| Carbon emissions, end-of-life (kg of CO2e) | 0 |
| Carbon emissions, energy usage (kg of CO2e) | 8201.23 |
| Carbon emissions, logistics (kg of CO2e) | 197.62 |
| Carbon emissions, manufacturing (kg of CO2e) | 1482.15 |
| PAIA version | PAIA 1.3.2, 2022 |
| Total carbon emissions, standard deviation (kg of CO2e) | 5211 |
| Total carbon footprint (kg of CO2e) | 9881 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482 mm |
| Height | 42.8 mm |
Packaging content
| Specification | Value |
|---|---|
| Packaging content | Riser Config 2 Power Cord - C13, 3M, 125V, 15A |
Other features
| Specification | Value |
|---|---|
| Bytes per sector | 512e |
| Data transfer rate | 12 Gbit/s |
| Open Compute Project (OCP) | NIC 3.0 |
