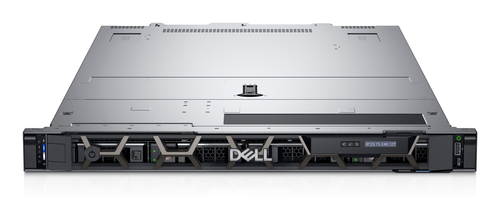

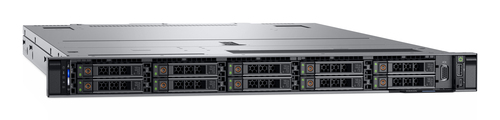

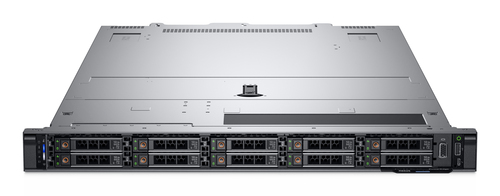

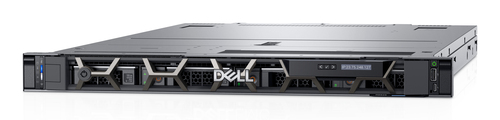

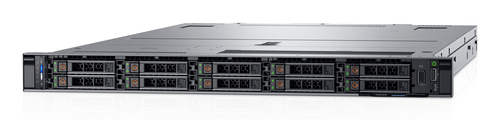

PowerEdge R6525 server
480 GB Rack (1U) AMD EPYC 7302 3 GHz 16 GB DDR4-SDRAM 800 W
Model R6525Part no. PER652501PSEAN 884116466253
54 specifications
- ProcessorAMD EPYC
- Memory16 GB
- Storage480 GB
- OSNo
- ColourBlack
- Processor manufacturerAMD
Overview
- Processor
- AMD EPYC
- Memory
- 16 GB
- Storage
- 480 GB
- OS
- No
- Colour
- Black
- Processor manufacturer
- AMD
- Brand
- Dell
- Category
- Server
- Model
- R6525
- Part numbers
- PER652501PS, PER652502C, PER652502PS, PER652503C, PER652503PS, R6525ERQ4V1 +34 more
- EAN / UPC
- 884116466253, 5397184363133, 5397184363140, 5397184619315 +4 more
- Also known as
- DELL PowerEdge R6525 server 480 GB Rack (1U) AMD EPYC 7302 3 GHz 16 GB DDR4-SDRAM 800 W
Specifications
54 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD EPYC |
| Processor model | 7302 |
| Processor frequency | 3 GHz |
| Processor boost frequency | 3.3 GHz |
| Processor cores | 16 |
| Processor cache | 128 MB |
| Number of processors installed | 1 |
| Processor cache type | L3 |
| Processor threads | 32 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Buffered memory type | Registered (buffered) |
| Memory ranking | 2 |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 32 |
| Memory data transfer rate | 3200 MT/s |
| Maximum internal memory | 256 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 480 GB |
| Number of HDDs installed | 0 |
| Number of HDDs supported | 4 |
| Supported HDD sizes | 3.5" |
| Number of SSDs installed | 1 |
| SSD capacity | 480 GB |
| SSD interface | SATA |
| RAID support | No |
| Supported RAID controllers | PERC H345 |
| Hot-Plug support | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
| On-board graphics card model | Not available |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| LAN controller | Broadcom 57412 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Remote administration | iDRAC9 Enterprise X5 |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | - Canonical Ubuntu Server LTS - Microsoft Windows Server with Hyper-V - Red Hat Enterprise Linux - SUSE Linux Enterprise Server - VMware |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 800 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482 mm |
| Height | 42.8 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
