R650XS + Windows Server 2022 Essentials
Model R650XS + Windows Server 2022 EssentialsPart no. RTTR5-KIT-2022ESS
53 specifications
- ProcessorIntel® Xeon® Gold
- Memory32 GB
- Storage480 GB
- OSWindows Server 2022 Essentials
- ColourBlack
- Processor manufacturerIntel
Overview
- Processor
- Intel® Xeon® Gold
- Memory
- 32 GB
- Storage
- 480 GB
- OS
- Windows Server 2022 Essentials
- Colour
- Black
- Processor manufacturer
- Intel
- Brand
- Dell
- Category
- Server
- Model
- R650XS + Windows Server 2022 Essentials
- Part numbers
- RTTR5-KIT-2022ESS, 8P09W-KIT-2022ESS, DG21Y-KIT-2022ESS
- Also known as
- DELL PowerEdge R650XS + Windows 2022 Essentials server 480 GB Rack (1U) Intel® Xeon® Gold 5318Y 2.1 GHz 32 GB DDR4-SDRAM 600 W Windows Server 2022 Essentials
Specifications
53 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® Gold |
| Processor generation | 3rd Generation Intel® Xeon® Scalable |
| Processor model | 5318Y |
| Processor frequency | 2.1 GHz |
| Processor boost frequency | 3.4 GHz |
| Processor cache | 36 MB |
| Number of processors installed | 1 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Buffered memory type | Registered (buffered) |
| Memory ranking | 2 |
| Memory layout (slots x size) | 1 x 32 GB |
| Memory slots | 16x DIMM |
| Memory data transfer rate | 3200 MT/s |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 480 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 480 GB |
| SSD interface | SATA |
| SSD size | 2.5" |
| Supported SSD sizes | 2.5" |
| Number of SSDs supported | 8 |
| Supported RAID controllers | PERC H755 |
| Hot-Plug support | Yes |
| Optical drive type | No |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Broadcom 5720 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| VGA (D-Sub) ports quantity | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black |
| Bezel | Yes |
| Rack rails | Yes |
Performance
| Specification | Value |
|---|---|
| Remote administration | iDRAC9 Enterprise 15G |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Server 2022 Essentials |
| Compatible operating systems | Canonical® Ubuntu® Server LTS Citrix® Hypervisor® Microsoft® Windows Server® with Hyper-V RedHat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi® |
Power
| Specification | Value |
|---|---|
| Power supply | 600 W |
| Power cable length | 2 m |
| Power cable connector 1 | C13 coupler |
| Power cable connector 2 | C14 coupler |
| Power cable current | 10 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482 mm |
| Height | 42.8 mm |
Similar products
All servers
Ernitec
BUILD-EASY-VIEW-6 server
Model BUILD-EASY-VIEW-6
- Processor
- Intel® Xeon® E3 v6
- Memory
- 16 GB
- Storage
- 54.5 TB
Ernitec

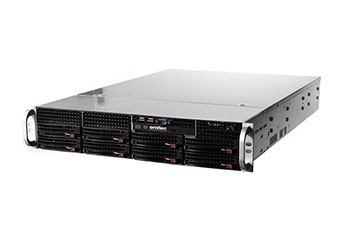

BUILD-EASY-VIEW-7 server
