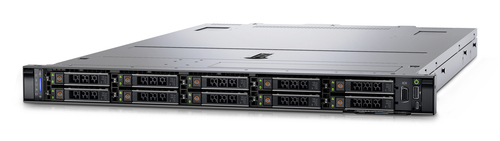

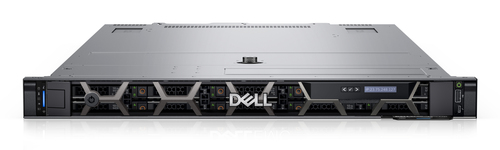

PowerEdge R650 server
480 GB Rack (2U) Intel Xeon Silver 4310 2.1 GHz 32 GB DDR4-SDRAM 800 W
Model R650Part no. R650XSARQ4V1EAN 884116419679
46 specifications
- ProcessorIntel Xeon Silver
- Memory32 GB
- Storage480 GB
- OSNo
- ColourBlack
- Processor manufacturerIntel
Overview
- Processor
- Intel Xeon Silver
- Memory
- 32 GB
- Storage
- 480 GB
- OS
- No
- Colour
- Black
- Processor manufacturer
- Intel
- Brand
- Dell
- Category
- Server
- Model
- R650
- Part numbers
- R650XSARQ4V1, R650XSERQ4V1, R650XSCLQ4V1, PER6502S431664384T3Y, R650XSCOLQ4V1
- EAN / UPC
- 884116419679, 884116419778
- Also known as
- DELL PowerEdge R650 server 480 GB Rack (2U) Intel Xeon Silver 4310 2.1 GHz 32 GB DDR4-SDRAM 800 W
Specifications
46 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Silver |
| Processor generation | 3rd Generation Intel® Xeon® Scalable |
| Processor model | 4310 |
| Processor frequency | 2.1 GHz |
| Processor boost frequency | 3.3 GHz |
| Processor cache | 18 MB |
| Number of processors installed | 1 |
| Maximum internal memory supported by processor | 1 TB |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory ranking | 2 |
| Memory clock speed | 2666 MHz |
| Memory slots | 32x DIMM |
| Memory data transfer rate | 3200 MT/s |
| Maximum internal memory | 2 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 480 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 480 GB |
| SSD interface | SATA III |
| SSD size | 2.5" |
| Supported RAID controllers | PERC H755 |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Remote administration | iDRAC9, Express 15G |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 800 W |
| Number of redundant power supplies supported | 2 |
| Number of main power supplies | 2 |
| Power cable length | 3 m |
| Power cable connector 1 | NEMA 5-15P |
| Power cable connector 2 | C13 coupler |
| Power cable current | 15 A |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 42.8 mm |
