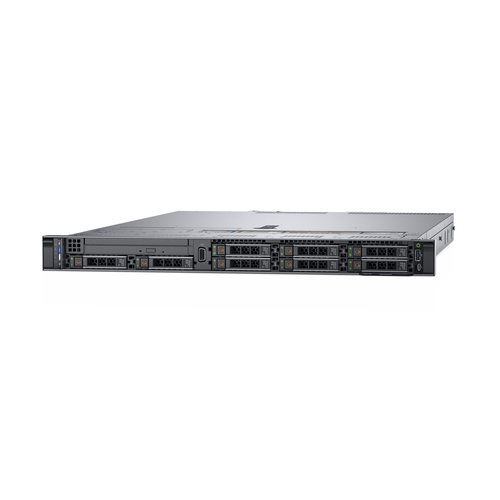

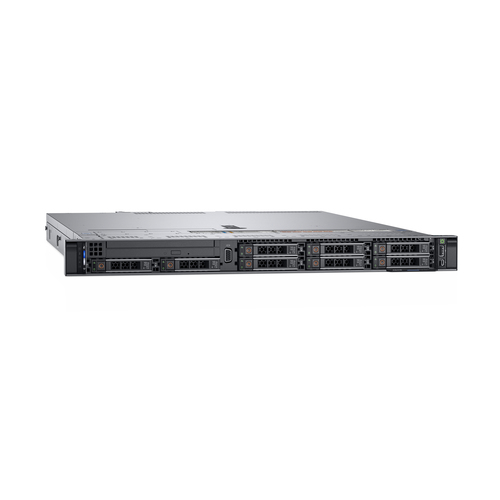

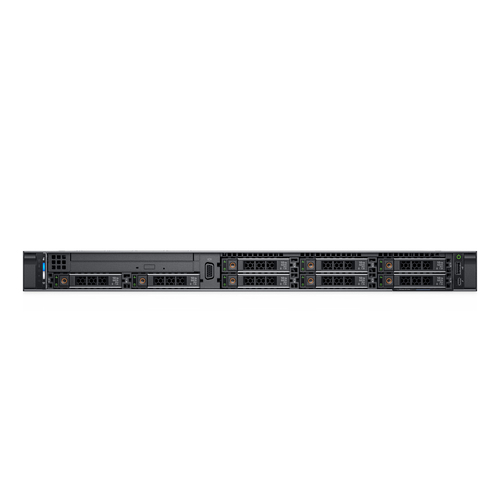

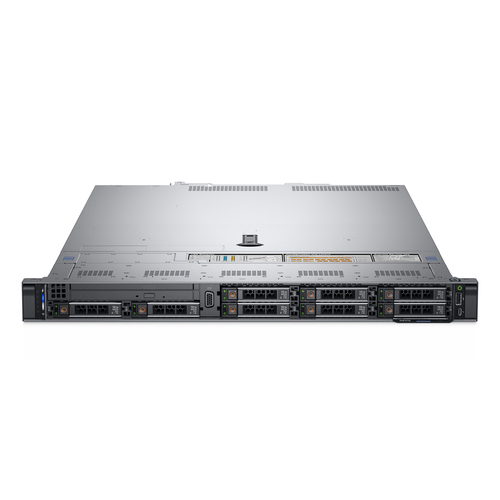

PowerEdge R6415 server
1 TB Rack (1U) AMD EPYC 7281 2.1 GHz 16 GB DDR4-SDRAM 550 W
Model R6415Part no. R641516C1TB
52 specifications
- ProcessorAMD EPYC
- Memory16 GB
- Storage1 TB
- OSNo
- ColourBlack
- Cabling technology10/100/1000Base-T(X)
Overview
- Processor
- AMD EPYC
- Memory
- 16 GB
- Storage
- 1 TB
- OS
- No
- Colour
- Black
- Cabling technology
- 10/100/1000Base-T(X)
- Brand
- Dell
- Category
- Server
- Model
- R6415
- Part numbers
- R641516C1TB, PER6415PLA01
- Also known as
- DELL PowerEdge R6415 server 1 TB Rack (1U) AMD EPYC 7281 2.1 GHz 16 GB DDR4-SDRAM 550 W
Specifications
52 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor family | AMD EPYC |
| Processor model | 7281 |
| Processor frequency | 2.1 GHz |
| Processor boost frequency | 2.7 GHz |
| Processor cores | 16 |
| Processor cache | 32 MB |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 170 W |
| Processor cache type | L3 |
| Processor threads | 32 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 16x DIMM |
| Memory data transfer rate | 2666 MT/s |
| Maximum internal memory | 1 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| HDD interface | Serial ATA III |
| HDD speed | 7200 RPM |
| HDD size | 2.5" |
| Number of HDDs supported | 8 |
| Supported HDD sizes | 2.5" |
| RAID support | Yes |
| Supported RAID controllers | PERC H730P+ |
| Hot-Plug support | Yes |
| Optical drive type | DVD-ROM |
| Supported storage drive interfaces | SAS, Serial ATA |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
| On-board graphics card model | Not available |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black |
| Rack mounting | Yes |
Performance
| Specification | Value |
|---|---|
| Remote administration | iDRAC8 Express |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | - Microsoft Windows Server 2016 - Red Hat Enterprise Linux 7.4 - VMware vSphere 2016 U1 (ESXi 6.5 U1) - Microsoft Windows Server 2012 R2 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 550 W |
| Number of redundant power supplies installed | 2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 434 mm |
| Depth | 606.5 mm |
| Height | 42.8 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
