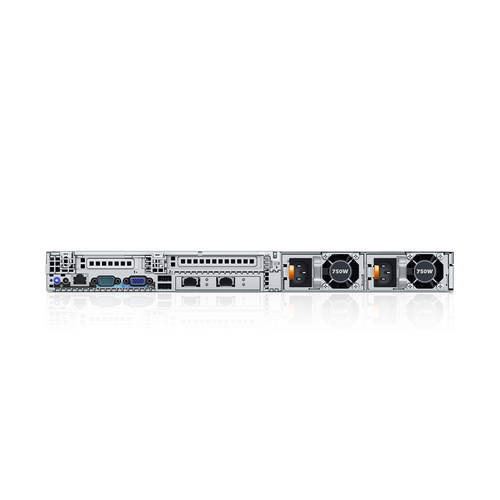

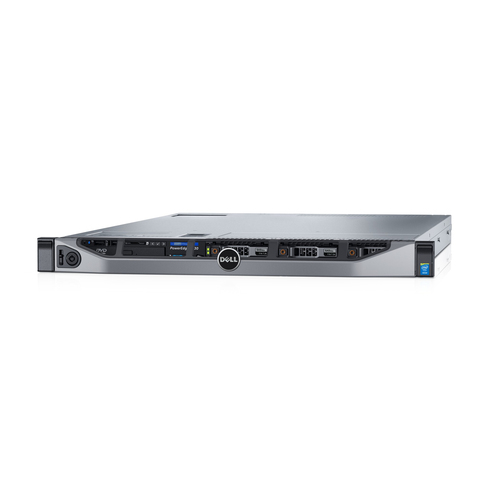

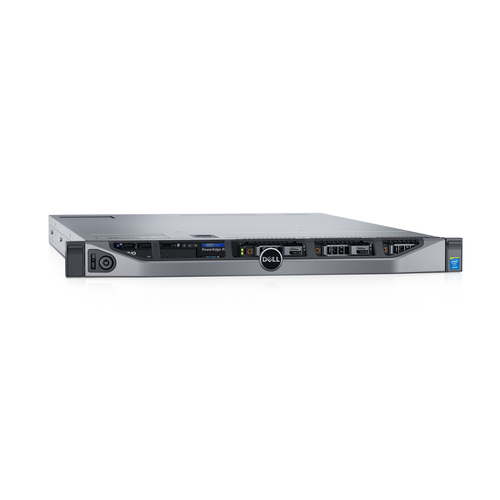

Dell PowerEdge R630+770-BBJR server
120 GB Rack (1U) Intel® Xeon® E5 v4 E5-2620V4 2.1 GHz 16 GB DDR4-SDRAM
Model R630+770-BBJRPart no. 210-ACXS?17642691.3?KIT
115 specifications
- ProcessorIntel® Xeon® E5 v4
- Memory16 GB
- Storage120 GB
- Weight16.9 kg
- Processor manufacturerIntel
- Maximum storage capacity14 TB
Overview
- Processor
- Intel® Xeon® E5 v4
- Memory
- 16 GB
- Storage
- 120 GB
- Weight
- 16.9 kg
- Processor manufacturer
- Intel
- Maximum storage capacity
- 14 TB
- Brand
- Dell
- Category
- Server
- Model
- R630+770-BBJR
- Part number
- 210-ACXS?17642691.3?KIT
- Also known as
- DELL PowerEdge R630+770-BBJR server 120 GB Rack (1U) Intel® Xeon® E5 v4 E5-2620V4 2.1 GHz 16 GB DDR4-SDRAM
Specifications
115 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E5 v4 |
| Processor model | E5-2620V4 |
| Processor frequency | 2.1 GHz |
| Processor boost frequency | 3 GHz |
| Processor cores | 8 |
| Processor cache | 20 MB |
| Motherboard chipset | Intel C610 |
| Memory channels supported by processor | Quad |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 85 W |
| Processor cache type | Smart Cache |
| System bus rate | 8 GT/s |
| Bus type | QPI |
| Compatible processor series | Intel® Xeon® |
| ECC supported by processor | Yes |
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Maximum internal memory supported by processor | 1.53 TB |
| Maximum number of PCI Express lanes | 40 |
| Maximum number of SMP processors | 2 |
| Memory bandwidth supported by processor (max) | 68.3 GB/s |
| Memory clock speeds supported by processor | 1600,1866,2133 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Number of QPI links | 2 |
| Physical Address Extension (PAE) | 46 bit |
| Physical Address Extension (PAE) | Yes |
| Processor code | SR2R6 |
| Processor codename | Broadwell |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 45 x 52.5 mm |
| Processor series | Intel Xeon E5-2600 v4 |
| Processor socket | LGA 2011-v3 |
| Processor threads | 16 |
| Scalability | 2S |
| Stepping | R0 |
| Supported instruction sets | AVX 2.0 |
| Supported processor sockets | LGA 2011-v3 (Socket R) |
| Tcase | 74 °C |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Memory clock speed | 2400 MHz |
| Memory slots | 24x DIMM |
| Maximum internal memory | 768 GB |
Storage
| Specification | Value |
|---|---|
| Maximum storage capacity | 14 TB |
| Total storage capacity | 120 GB |
| Number of HDDs installed | 0 |
| Number of SSDs installed | 1 |
| SSD capacity | 120 GB |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Supported storage drive interfaces | SAS, Serial ATA III |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Broadcom 5720 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Rack mounting | Yes |

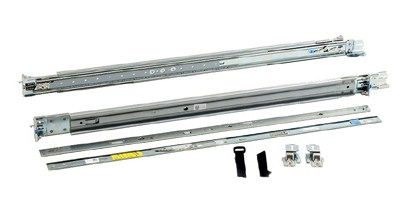

| Rack rails | Yes |
Performance
| Specification | Value |
|---|---|
| Remote administration | iDRAC8 Enterprise |
| Performance management | IPMI 2.0, Dell OpenManage |
| Trusted Platform Module (TPM) | Yes |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Microsoft Windows Server 2008 R2 Microsoft Windows Server 2012 Microsoft Windows Server 2012 R2 Novell SUSE Linux Enterprise Server Red Hat Enterprise Linux VMware ESX Microsoft Windows Server 2012 with Hyper-V VMware vSphere ESXi Citrix XenServer |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 2 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 92986 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Number of main power supplies | 1 |
| Power supply input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12000 m |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482.4 mm |
| Depth | 700.5 mm |
| Height | 42.8 mm |
| Weight | 16.9 kg |
Other features
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display | LCD |
