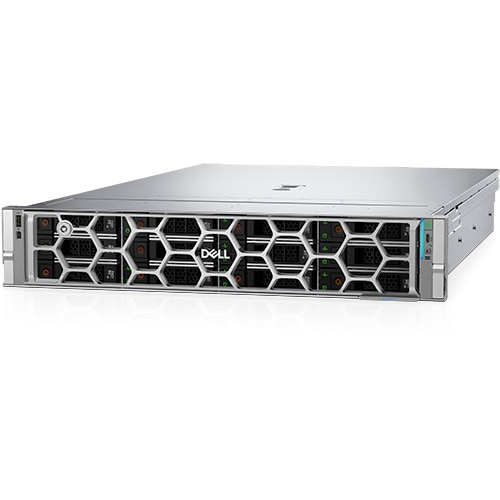

PowerEdge R5715 server
4 TB Rack (2U) AMD EPYC 9335 3 GHz 64 GB DDR5-SDRAM 800 W
Model R5715Part no. R5715272_9335232
59 specifications
- ProcessorAMD EPYC
- Memory64 GB
- Storage4 TB
- OSNo
- ColourGrey
- Processor manufacturerAMD
Overview
- Processor
- AMD EPYC
- Memory
- 64 GB
- Storage
- 4 TB
- OS
- No
- Colour
- Grey
- Processor manufacturer
- AMD
- Brand
- Dell
- Category
- Server
- Model
- R5715
- Part number
- R5715272_9335232
- Also known as
- DELL PowerEdge R5715 server 4 TB Rack (2U) AMD EPYC 9335 3 GHz 64 GB DDR5-SDRAM 800 W
Specifications
59 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD EPYC |
| Processor generation | AMD EPYC™ 9005 Series |
| Processor model | 9335 |
| Processor frequency | 3 GHz |
| Processor boost frequency | 4.4 GHz |
| Processor cache | 128 MB |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 210 W |
| Memory clock speeds supported by processor | 6400 MHz |
| Memory types supported by processor | DDR5-SDRAM |
| Processor threads | 64 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Buffered memory type | Registered (buffered) |
| Memory ranking | 2 |
| Memory layout (slots x size) | 2 x 32 GB |
| Memory slots | 4x DIMM |
| Memory data transfer rate | 6400 MT/s |
| Maximum internal memory | 1.5 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 4 TB |
| Number of HDDs installed | 2 |
| HDD capacity | 2 TB |
| HDD interface | SATA III |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Supported SSD sizes | 3.5" |
| Number of SSDs supported | 12 |
| RAID support | Yes |
| Supported RAID controllers | H965i Adapter Full Height |
| Hot-Plug support | Yes |
| Optical drive type | No |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel E610-XAT4 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Grey |
| Bezel | Yes |
Performance
| Specification | Value |
|---|---|
| Remote administration | iDRAC10 Enterprise 17G with OpenManage Enterprise Advance Plus |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux VMware ESXi SUSE Linux Enterprise Server |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 800 W |
| Number of redundant power supplies installed | 2 |
| Power supply input voltage | 100 - 240 V |
Certificates
| Specification | Value |
|---|---|
| 80 PLUS certification | 80 PLUS Titanium |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482 mm |
| Height | 86.8 mm |
Packaging content
| Specification | Value |
|---|---|
| Packaging content | Riser Config 3, 4 x16 FH Slots (Gen5), 2nd OCP |
Other features
| Specification | Value |
|---|---|
| Bytes per sector | 512n |
| Data transfer rate | 6 Gbit/s |
| Open Compute Project (OCP) | OCP 3.0 NIC |
