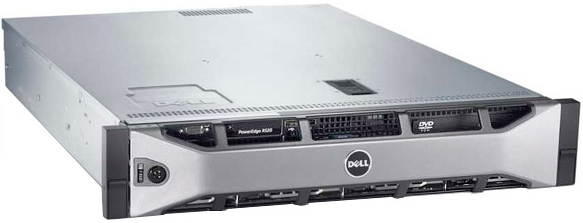

Dell PowerEdge R520 server
500 GB Rack (2U) Intel® Xeon® E5 Family E5-2403 1.8 GHz 2 GB DDR3-SDRAM 495 W
Model R520Part no. R520-1878EAN 5397063396863
94 specifications
- ProcessorIntel® Xeon® E5 Family
- Memory2 GB
- Storage500 GB
- Processor manufacturerIntel
- Maximum storage capacity24 TB
- Cabling technology10/100/1000Base-T(X)
Overview
- Processor
- Intel® Xeon® E5 Family
- Memory
- 2 GB
- Storage
- 500 GB
- Processor manufacturer
- Intel
- Maximum storage capacity
- 24 TB
- Cabling technology
- 10/100/1000Base-T(X)
- Brand
- Dell
- Category
- Server
- Model
- R520
- Part numbers
- R520-1878, R520-7079, R520-7451, R520-6997, 58260084, 58259366 +20 more
- EAN / UPC
- 5397063396863, 5397063431878, 5397063427079, 5397063427451 +8 more
- Also known as
- DELL PowerEdge R520 server 500 GB Rack (2U) Intel® Xeon® E5 Family E5-2403 1.8 GHz 2 GB DDR3-SDRAM 495 W
Specifications
94 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E5 Family |
| Processor model | E5-2403 |
| Processor frequency | 1.8 GHz |
| Processor cores | 4 |
| Processor cache | 10 MB |
| Motherboard chipset | Intel C600 |
| Memory channels supported by processor | Triple |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 80 W |
| Processor cache type | Smart Cache |
| System bus rate | 6.4 GT/s |
| Bus type | QPI |
| ECC supported by processor | Yes |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Maximum internal memory supported by processor | 375 GB |
| Maximum number of PCI Express lanes | 24 |
| Memory bandwidth supported by processor (max) | 25 GB/s |
| Memory clock speeds supported by processor | 800,1066 MHz |
| Memory types supported by processor | DDR3-SDRAM |
| Number of QPI links | 1 |
| Processor code | SR0LS |
| Processor codename | Sandy Bridge EN |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor package size | 45 x 42.5 mm |
| Processor series | Intel Xeon E5-2400 |
| Processor socket | LGA 1356 (Socket B2) |
| Processor threads | 4 |
| Scalability | 2S |
| Stepping | M1 |
| Supported instruction sets | AVX |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR3-SDRAM |
| Memory clock speed | 1333 MHz |
| Memory layout (slots x size) | 1 x 2 GB |
| Memory slots | 12x DIMM |
| Maximum internal memory | 192 GB |
Storage
| Specification | Value |
|---|---|
| Maximum storage capacity | 24 TB |
| Total storage capacity | 500 GB |
| Number of HDDs installed | 1 |
| HDD capacity | 500 GB |
| HDD interface | Serial ATA |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Optical drive type | No |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Rack mounting | Yes |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 2 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 0.00 |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 64615 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | No |
| Number of power supply units | 1 |
| Power supply | 495 W |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
