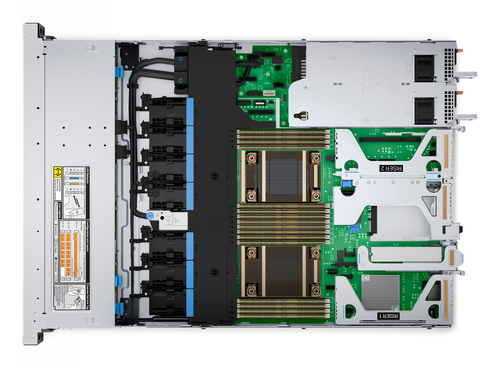

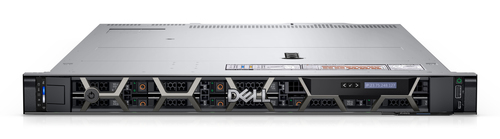

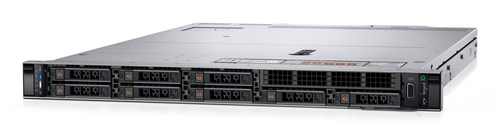

PowerEdge R450 server
2 TB Rack (2U) Intel Xeon Silver 4314 2.4 GHz 16 GB DDR4-SDRAM 600 W
Model R450Part no. X95FF+634-BYLIEAN 884116432463
58 specifications
- ProcessorIntel Xeon Silver
- Memory16 GB
- Storage2 TB
- OSNo
- Weight18.6 kg
- ColourBlack
Overview
- Processor
- Intel Xeon Silver
- Memory
- 16 GB
- Storage
- 2 TB
- OS
- No
- Weight
- 18.6 kg
- Colour
- Black
- Brand
- Dell
- Category
- Server
- Model
- R450
- Part numbers
- X95FF+634-BYLI, W45F9, K1WNX, DXKX0, R450Q3FY22, PER450BIL +34 more
- EAN / UPC
- 884116432463, 884116419532, 5397184774458, 5397184774465 +15 more
- Also known as
- DELL PowerEdge R450 server 2 TB Rack (2U) Intel Xeon Silver 4314 2.4 GHz 16 GB DDR4-SDRAM 600 W
Specifications
58 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Silver |
| Processor generation | 3rd Generation Intel® Xeon® Scalable |
| Processor model | 4314 |
| Processor frequency | 2.4 GHz |
| Processor boost frequency | 3.4 GHz |
| Processor cache | 24 MB |
| Number of processors installed | 1 |
| Memory clock speeds supported by processor | 2666 MHz |
| Memory types supported by processor | DDR4-SDRAM |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Buffered memory type | Registered (buffered) |
| Memory ranking | 2 |
| Memory clock speed | 2666 MHz |
| Memory slots | 16x DIMM |
| Memory data transfer rate | 3200 MT/s |
| Maximum internal memory | 128 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 2 TB |
| Number of HDDs installed | 1 |
| HDD capacity | 2 TB |
| HDD interface | SATA III |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Number of HDDs supported | 4 |
| Supported HDD sizes | 3.5" |
| Supported RAID controllers | PERC H345 |
| Hot-Plug support | Yes |
| Optical drive type | No |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| VGA (D-Sub) ports quantity | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Remote administration | iDRAC9 Enterprise 15G |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 600 W |
| Number of redundant power supplies installed | 2 |
| Power supply input voltage | 125 V |
| Power cable length | 3 m |
| Power cable connector 1 | C13 coupler |
| Power cable current | 15 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 42.8 mm |
| Weight | 18.6 kg |
Other features
| Specification | Value |
|---|---|
| Bytes per sector | 512n |
| Data transfer rate | 6 Gbit/s |
