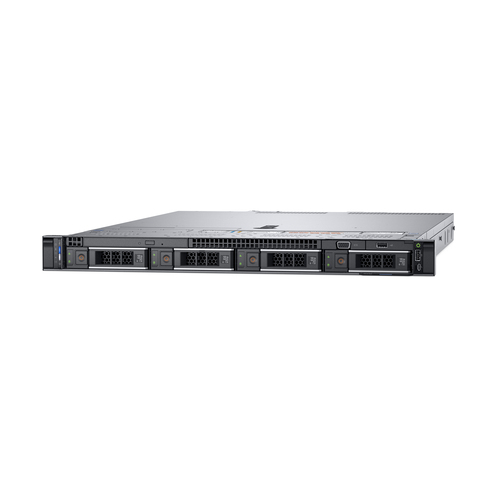

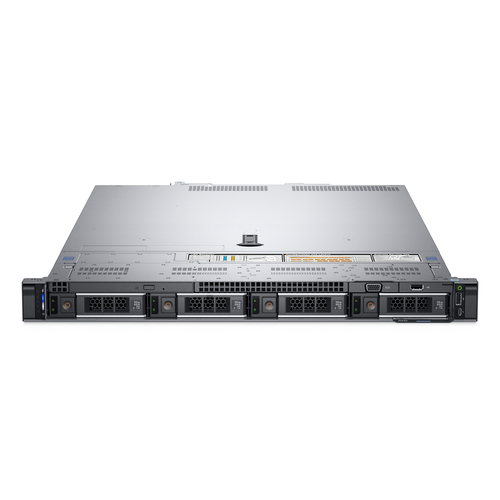

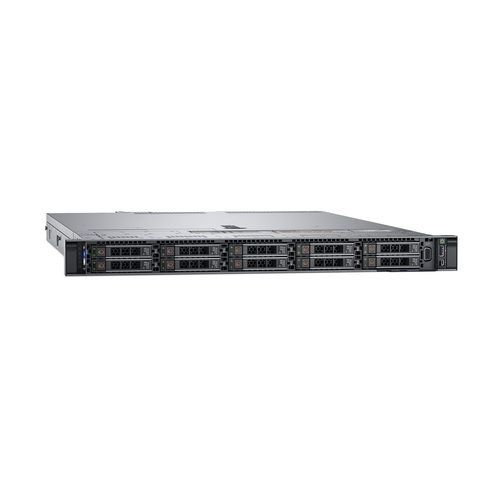

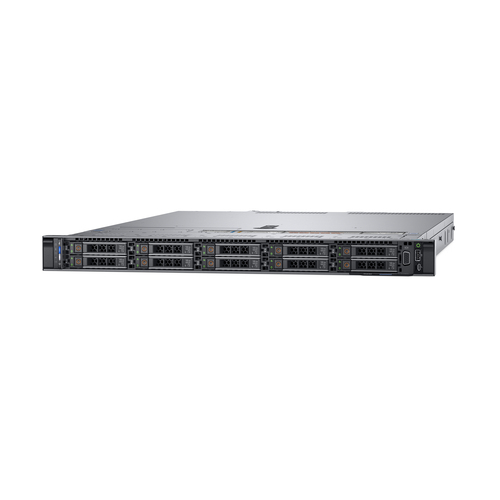

Dell PowerEdge R440 server
300 GB Rack (1U) Intel® Xeon® 3106 1.7 GHz 8 GB DDR4-SDRAM 550 W
Model R440Part no. K01YM + WIN SERV 2016 STANDARDEAN 5397184224021
77 specifications
- ProcessorIntel® Xeon®
- Memory8 GB
- Storage300 GB
- OSNo
- Processor manufacturerIntel
- Ethernet LANYes
Overview
- Processor
- Intel® Xeon®
- Memory
- 8 GB
- Storage
- 300 GB
- OS
- No
- Processor manufacturer
- Intel
- Ethernet LAN
- Yes
- Brand
- Dell
- Category
- Server
- Model
- R440
- Part numbers
- K01YM + WIN SERV 2016 STANDARD, R440-1190, R440-1213, R440-1206, R440-1183, R440-1190/634-BIPU +34 more
- EAN / UPC
- 5397184224021, 5397184061190, 5397184061213, 5397184061206 +37 more
- Also known as
- DELL PowerEdge R440 server 300 GB Rack (1U) Intel® Xeon® 3106 1.7 GHz 8 GB DDR4-SDRAM 550 W
Specifications
77 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Processor generation | 1st Generation Intel® Xeon® Scalable |
| Processor model | 3106 |
| Processor frequency | 1.7 GHz |
| Processor cores | 8 |
| Processor cache | 11 MB |
| Memory channels supported by processor | Hexa |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 85 W |
| Processor cache type | L3 |
| ECC supported by processor | Yes |
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| Maximum internal memory supported by processor | 768 GB |
| Maximum number of PCI Express lanes | 48 |
| Memory clock speeds supported by processor | 2133 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Processor code | SR3GL |
| Processor codename | Skylake |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 76.0 x 56.5 mm |
| Processor socket | LGA 3647 (Socket P) |
| Processor threads | 8 |
| Scalability | 2S |
| Stepping | U0 |
| Tcase | 77 °C |
| Conflict-Free processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Memory clock speed | 2666 MHz |
| Maximum internal memory | 512 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 300 GB |
| Number of HDDs installed | 1 |
| HDD capacity | 300 GB |
| HDD interface | Serial ATA |
| HDD size | 2.5" |
| Number of HDDs supported | 8 |
| Supported HDD sizes | 2.5" |
| Number of SSDs installed | 8 |
| RAID support | Yes |
| Supported RAID controllers | PERC H330+ |
| Hot-Plug support | Yes |
| Optical drive type | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 2 |
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Rack rails | No |
Performance
| Specification | Value |
|---|---|
| Remote administration | iDRAC9 Express |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 1.2 |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Canonical Ubuntu LTS Citrix XenServer Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Secure Boot | Yes |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | No |
| Processor ARK ID | 123540 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 550 W |
Other features
| Specification | Value |
|---|---|
| Display | LCD |
What people say
Reviews & ratings
Dell PowerEdge R440 server
No reviews yet
Be the first to tell others how Dell PowerEdge R440 server works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Dell PowerEdge R440 server
All server comparisons- Dell PowerEdge R440 server vsDell PowerEdge T440 serverCompare specs
- Dell PowerEdge R440 server vsDell PowerEdge M640 serverCompare specs
- Dell PowerEdge R440 server vsDell PowerEdge R540 serverCompare specs
- Dell PowerEdge R440 server vsDell PowerEdge R740xd serverCompare specs

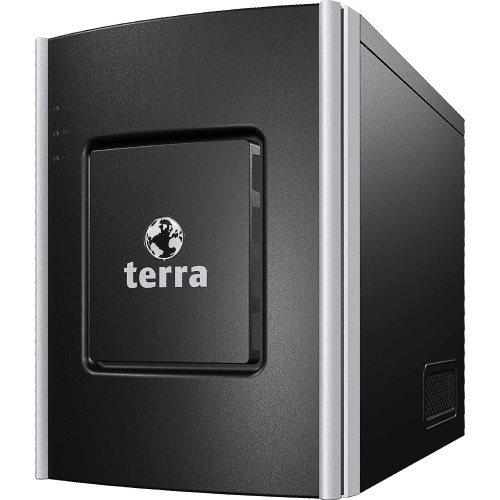

- Dell PowerEdge R440 server vsTERRA MINISERVER G3Compare specs
