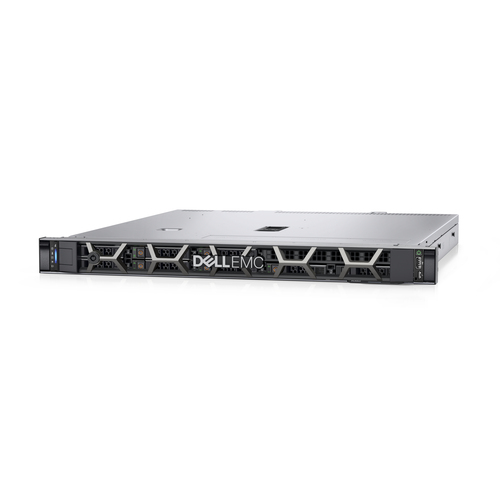

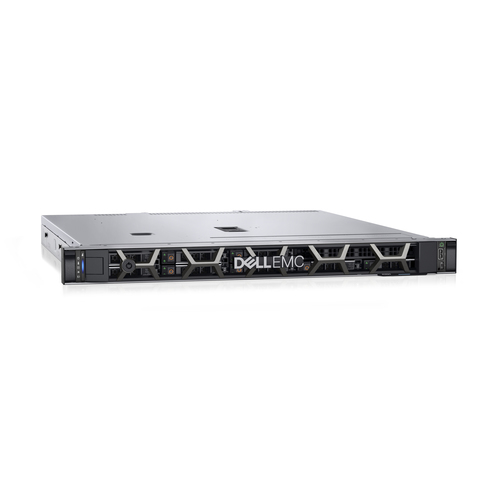

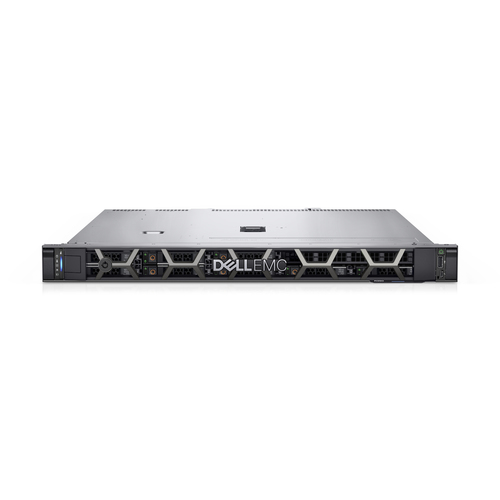

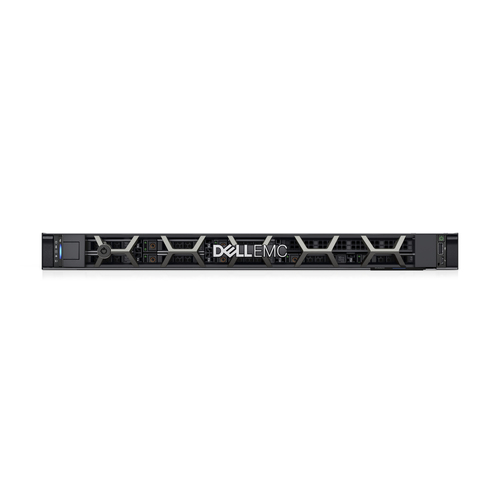

PowerEdge R350+634-BSFZ server
1.2 TB Rack (1U) Intel Xeon E E-2336 2.9 GHz 16 GB DDR4-SDRAM 600 W Windows Server 2019 Essentials
Model R350+634-BSFZPart no. V67J5+634-BSFZ
71 specifications
- ProcessorIntel Xeon E
- Memory16 GB
- Storage1.2 TB
- OSWindows Server 2019 Essentials
- ColourBlack
- Processor manufacturerIntel
Overview
- Processor
- Intel Xeon E
- Memory
- 16 GB
- Storage
- 1.2 TB
- OS
- Windows Server 2019 Essentials
- Colour
- Black
- Processor manufacturer
- Intel
- Brand
- Dell
- Category
- Server
- Model
- R350+634-BSFZ
- Part number
- V67J5+634-BSFZ
- Also known as
- DELL PowerEdge R350+634-BSFZ server 1.2 TB Rack (1U) Intel Xeon E E-2336 2.9 GHz 16 GB DDR4-SDRAM 600 W Windows Server 2019 Essentials
Specifications
71 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon E |
| Processor model | E-2336 |
| Processor frequency | 2.9 GHz |
| Processor boost frequency | 4.8 GHz |
| Processor cache | 12 MB |
| Number of processors installed | 1 |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Idle States | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Buffered memory type | Unregistered (unbuffered) |
| ECC | Yes |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 4x DIMM |
| Memory data transfer rate | 3200 MT/s |
| Maximum internal memory | 128 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1.2 TB |
| Number of HDDs installed | 2 |
| HDD capacity | 600 GB |
| HDD interface | Serial Attached SCSI (SAS) |
| HDD speed | 10000 RPM |
| HDD size | 2.5" |
| Number of HDDs supported | 4 |
| Supported HDD sizes | 3.5" |
| RAID support | No |
| Supported RAID controllers | PERC H755 |
| Hot-Plug support | Yes |
| Optical drive type | No |
| Storage drive adapter included | Yes |
| Storage drive adapter type | 2.5" - 3.5" |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Broadcom 5720 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black |
| Bezel | Yes |
| Rack mounting | Yes |
Performance
| Specification | Value |
|---|---|
| Remote administration | iDRAC9, Enterprise 15G |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Server 2019 Essentials |
| Compatible operating systems | Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 600 W |
| Number of redundant power supplies supported | 2 |
| Number of redundant power supplies installed | 2 |
| Power cable length | 2 m |
| Power cable connector 1 | C13 coupler |
| Power cable connector 2 | C14 coupler |
| Power cable current | 12 A |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 434 mm |
| Height | 428 mm |
Other features
| Specification | Value |
|---|---|
| Bytes per sector | 512n |
| Data transfer rate | 12 Gbit/s |
