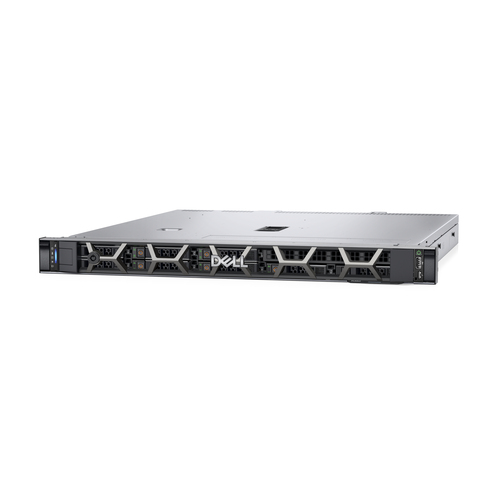

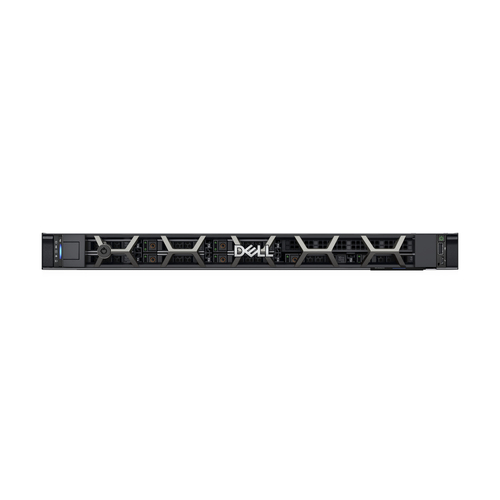

PowerEdge R350 server
4 TB Rack (1U) Intel Xeon E E-2334 3.4 GHz 8 GB DDR4-SDRAM 600 W
Model R350Part no. 34PR7+634-BYKR+634-BYLBEAN 5902002146050
59 specifications
- ProcessorIntel Xeon E
- Memory8 GB
- Storage4 TB
- OSNo
- ColourBlack
- Processor manufacturerIntel
Overview
- Processor
- Intel Xeon E
- Memory
- 8 GB
- Storage
- 4 TB
- OS
- No
- Colour
- Black
- Processor manufacturer
- Intel
- Brand
- Dell
- Category
- Server
- Model
- R350
- Part numbers
- 34PR7+634-BYKR+634-BYLB, 34PR7 + WIN SERVER 2022 ESSENTIALS, 34PR7 + WIN SERVER 2022 STANDARD, 34PR7 WIN SERVER 2022 DATACENTER, R350COLQ4V1, R350ERQ4V1 +34 more
- EAN / UPC
- 5902002146050, 884116419648, 5901165750500, 884116419433 +8 more
- Also known as
- DELL PowerEdge R350 server 4 TB Rack (1U) Intel Xeon E E-2334 3.4 GHz 8 GB DDR4-SDRAM 600 W
Specifications
59 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon E |
| Processor model | E-2334 |
| Processor frequency | 3.4 GHz |
| Processor boost frequency | 4.8 GHz |
| Processor cache | 8 MB |
| Number of processors installed | 1 |
| Execute Disable Bit | Yes |
| Idle States | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Buffered memory type | Unregistered (unbuffered) |
| Memory ranking | 1 |
| ECC | Yes |
| Memory clock speed | 3200 MHz |
| Memory slots | 4x DIMM |
| Maximum internal memory | 64 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 4 TB |
| Number of HDDs installed | 1 |
| HDD capacity | 4 TB |
| HDD interface | SATA III |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| RAID support | No |
| Supported RAID controllers | PERC H345 |
| Hot-Plug support | Yes |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black |
| Rack mounting | Yes |
Performance
| Specification | Value |
|---|---|
| Remote administration | iDRAC9, Basic 15G |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Canonical Ubuntu Server LTS Citrix Hypervisor Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 600 W |
| Number of main power supplies | 2 |
| Power supply input voltage | 125 V |
| Power cable length | 3 m |
| Power cable connector 1 | C13 coupler |
| Power cable current | 15 A |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 42.8 mm |
