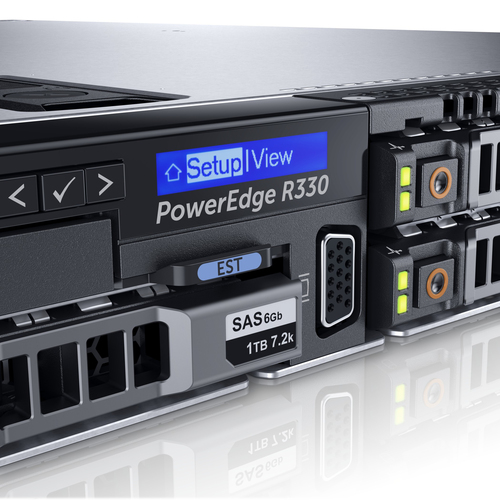

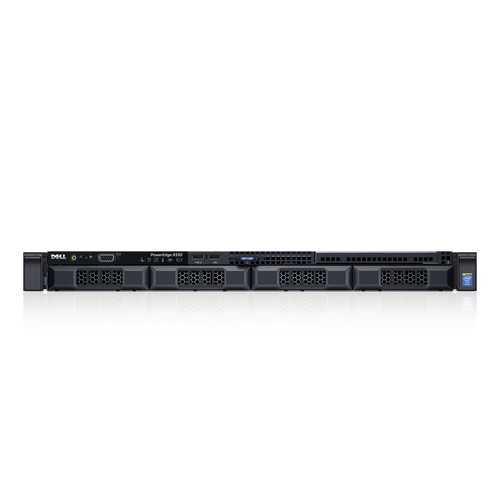

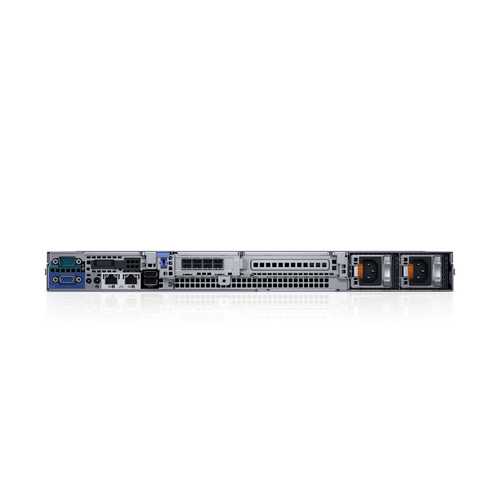

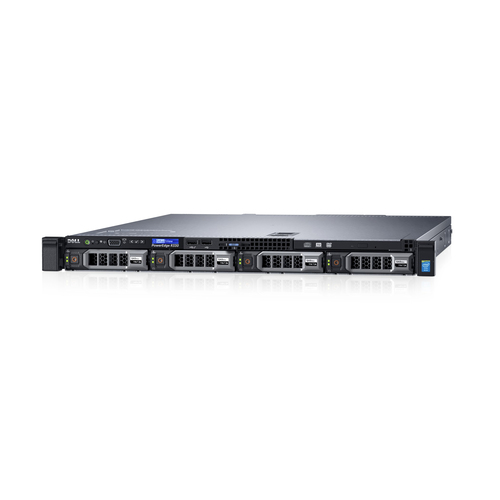

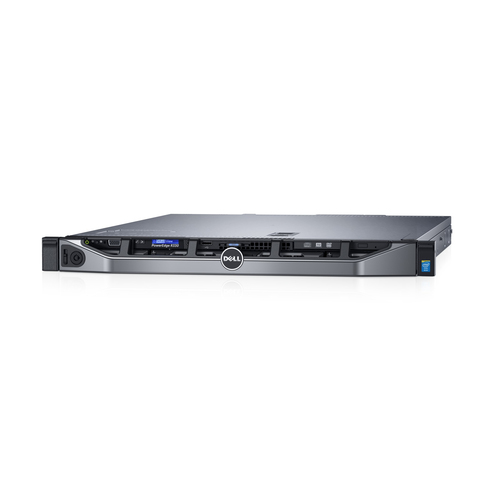

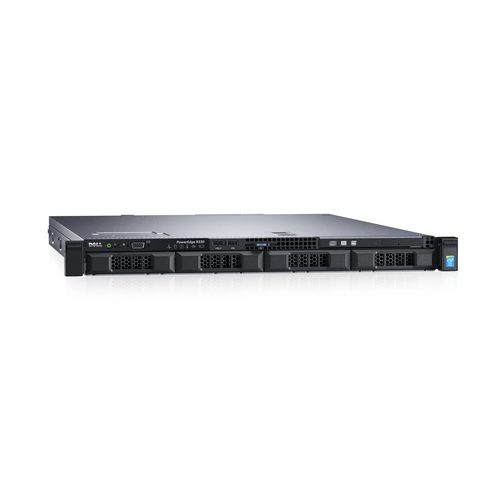

Dell PowerEdge R330 server
2 TB Rack (1U) Intel® Xeon® E3 v5 E3-1220V5 3 GHz 8 GB DDR4-SDRAM
Model R330Part no. THCW7EAN 5397063982899
116 specifications
- ProcessorIntel® Xeon® E3 v5
- Memory8 GB
- Storage2 TB
- OSNo
- Weight13.8 kg
- Processor manufacturerIntel
Overview
- Processor
- Intel® Xeon® E3 v5
- Memory
- 8 GB
- Storage
- 2 TB
- OS
- No
- Weight
- 13.8 kg
- Processor manufacturer
- Intel
- Brand
- Dell
- Category
- Server
- Model
- R330
- Part numbers
- THCW7, THCW7/634-BIPT, THCW7/634-BIPU, DXHF9, PER330PL2A, PER330IL01 +34 more
- EAN / UPC
- 5397063982899, 5397184015704, 5397184015711, 884116282129 +23 more
- Also known as
- DELL PowerEdge R330 server 2 TB Rack (1U) Intel® Xeon® E3 v5 E3-1220V5 3 GHz 8 GB DDR4-SDRAM
Specifications
116 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E3 v5 |
| Processor model | E3-1220V5 |
| Processor frequency | 3 GHz |
| Processor boost frequency | 3.5 GHz |
| Processor cores | 4 |
| Processor cache | 8 MB |
| Memory channels supported by processor | Dual |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 80 W |
| Processor cache type | Smart Cache |
| System bus rate | 8 GT/s |
| Bus type | QPI |
| Compatible processor series | Intel® Xeon® |
| ECC supported by processor | Yes |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 14 nm |
| Idle States | Yes |
| Maximum internal memory supported by processor | 64 GB |
| Maximum number of PCI Express lanes | 16 |
| Memory bandwidth supported by processor (max) | 34.1 GB/s |
| Memory clock speeds supported by processor | 1333,1600,1866,2133 MHz |
| Memory types supported by processor | DDR3L-SDRAM, DDR4-SDRAM |
| Memory voltage supported by processor | 1.35 V |
| PCI Express configurations | 1x16, 1x8+2x4, 2x8 |
| Processor code | SR2LG |
| Processor codename | Skylake |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Xeon E3-1200 v5 |
| Processor socket | LGA 1151 (Socket H4) |
| Processor threads | 4 |
| Scalability | 1S |
| Stepping | R0 |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Supported processor sockets | LGA 1151 (Socket H4) |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Maximum internal memory | 65536 MB |
| Memory slots | 4x DIMM |
| Maximum internal memory | 64 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 2 TB |
| Number of HDDs installed | 2 |
| HDD capacity | 1 TB |
| HDD size | 3.5" |
| Number of HDDs supported | 4 |
| Supported HDD sizes | 3.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10, 50 |
| Internal drive bays | 4 |
| Optical drive type | DVD±RW |
| Supported storage drive interfaces | SAS, Serial ATA II |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Matrox G200 |
| Number of displays supported (on-board graphics) | 0 |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 (Gen 3.x) slots | 1 |
| PCI Express x8 (Gen 3.x) slots | 1 |
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Rack rails | Yes |
| Redundant fans support | Yes |
Performance
| Specification | Value |
|---|---|
| Remote administration | iDRAC8 Express |
| Performance management | IPMI 2.0, Dell OpenManage |
| Trusted Platform Module (TPM) | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Microsoft Windows Server 2012 R2 Microsoft Windows Server 2012 Red Hat Enterpise Linux SUSE Linux Enterprise Server 12 SP1 SUSE Linux Enterprise Server 11 SP4 VMware vSphere ESXi |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 88172 |
Power
| Specification | Value |
|---|---|
| Power supply input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 434 mm |
| Depth | 625 mm |
| Height | 42.8 mm |
| Weight | 13.8 kg |
Other features
| Specification | Value |
|---|---|
| Dell E-Value Code | PER3301 |
