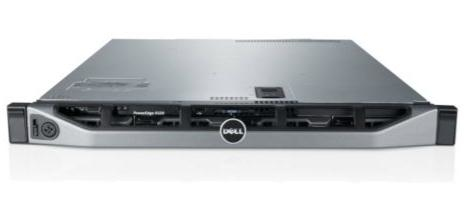

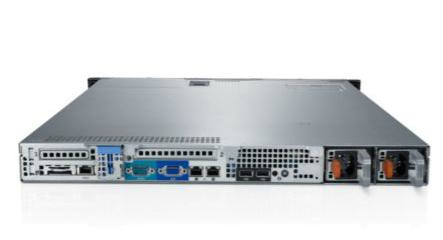

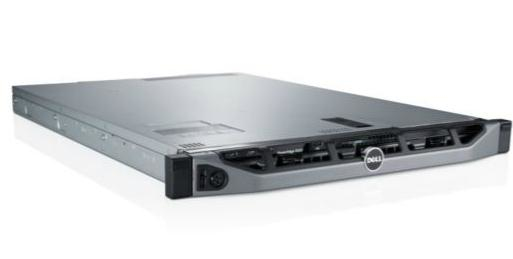

Dell PowerEdge R320 server
2 TB Rack (1U) Intel® Xeon® E5 Family E5-2403 1.8 GHz 8 GB DDR3-SDRAM 350 W
Model R320Part no. 59404211EAN 5397063428229
92 specifications
- ProcessorIntel® Xeon® E5 Family
- Memory8 GB
- Storage2 TB
- Processor manufacturerIntel
- Maximum storage capacity12 TB
- Ethernet LANYes
Overview
- Processor
- Intel® Xeon® E5 Family
- Memory
- 8 GB
- Storage
- 2 TB
- Processor manufacturer
- Intel
- Maximum storage capacity
- 12 TB
- Ethernet LAN
- Yes
- Brand
- Dell
- Category
- Server
- Model
- R320
- Part numbers
- 59404211, CHSVR320F, R320-2134, R320-2141, R320-2783, R320-2790 +34 more
- EAN / UPC
- 5397063428229, 5397063421909, 5397063421251, 5397063435104 +25 more
- Also known as
- DELL PowerEdge R320 server 2 TB Rack (1U) Intel® Xeon® E5 Family E5-2403 1.8 GHz 8 GB DDR3-SDRAM 350 W
Specifications
92 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E5 Family |
| Processor model | E5-2403 |
| Processor frequency | 1.8 GHz |
| Processor cores | 4 |
| Processor cache | 10 MB |
| Motherboard chipset | Intel C600 |
| Memory channels supported by processor | Triple |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 80 W |
| Processor cache type | Smart Cache |
| System bus rate | 6.4 GT/s |
| Bus type | QPI |
| ECC supported by processor | Yes |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Maximum internal memory supported by processor | 375 GB |
| Maximum number of PCI Express lanes | 24 |
| Memory bandwidth supported by processor (max) | 25 GB/s |
| Memory clock speeds supported by processor | 800,1066 MHz |
| Memory types supported by processor | DDR3-SDRAM |
| Number of QPI links | 1 |
| Processor code | SR0LS |
| Processor codename | Sandy Bridge EN |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor package size | 45 x 42.5 mm |
| Processor series | Intel Xeon E5-2400 |
| Processor socket | LGA 1356 (Socket B2) |
| Processor threads | 4 |
| Scalability | 2S |
| Stepping | M1 |
| Supported instruction sets | AVX |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR3-SDRAM |
| Maximum internal memory | 98304 MB |
| Memory clock speed | 1333 MHz |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 6 |
| Maximum internal memory | 96 GB |
Storage
| Specification | Value |
|---|---|
| Maximum storage capacity | 12 TB |
| Total storage capacity | 2 TB |
| Number of HDDs installed | 2 |
| HDD capacity | 1 TB |
| HDD interface | Serial ATA |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| RAID support | Yes |
| Optical drive type | DVD-RW |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Microsoft Windows Server 2008 R2 SP1, x64 (includes Hyper-V v2) Microsoft Windows Small Business Server 2011 SUSE Linux Enterprise Server Red Hat Enterprise Linux |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 2 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 0.00 |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 64615 |
Power
| Specification | Value |
|---|---|
| Number of power supply units | 1 |
| Power supply | 350 W |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
