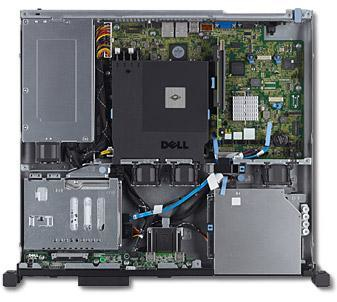

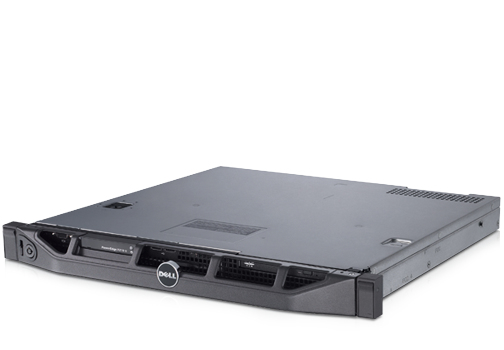

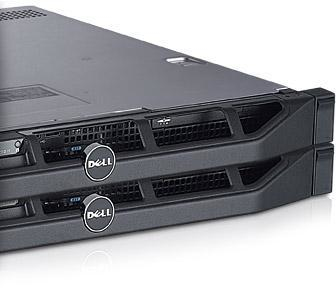

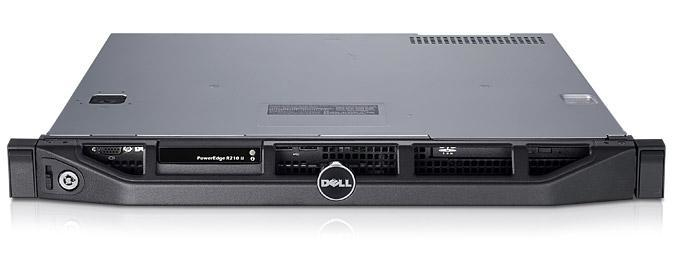

Dell PowerEdge R210II server
1 TB Rack (1U) Intel® Core™ i3 i3-3220 3.3 GHz 8 GB DDR3-SDRAM 250 W
Model R210IIPart no. 16921683.2-1
104 specifications
- ProcessorIntel® Core™ i3
- Memory8 GB
- Storage1 TB
- OSNo
- Processor manufacturerIntel
- Maximum storage capacity6 TB
Overview
- Processor
- Intel® Core™ i3
- Memory
- 8 GB
- Storage
- 1 TB
- OS
- No
- Processor manufacturer
- Intel
- Maximum storage capacity
- 6 TB
- Brand
- Dell
- Category
- Server
- Model
- R210II
- Part number
- 16921683.2-1
- Also known as
- DELL PowerEdge R210II server 1 TB Rack (1U) Intel® Core™ i3 i3-3220 3.3 GHz 8 GB DDR3-SDRAM 250 W
Specifications
104 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | 3rd gen Intel® Core™ i3 |
| Processor model | i3-3220 |
| Processor frequency | 3.3 GHz |
| Processor cores | 2 |
| Processor cache | 3 MB |
| Motherboard chipset | Intel® C202 |
| Memory channels supported by processor | Dual |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 55 W |
| Processor cache type | Smart Cache |
| System bus rate | 5 GT/s |
| Bus type | DMI |
| CPU multiplier (bus/core ratio) | 33 |
| ECC supported by processor | Yes |
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Maximum internal memory supported by processor | 32 GB |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| Memory clock speeds supported by processor | 1333,1600 MHz |
| Memory types supported by processor | DDR3-SDRAM |
| PCI Express configurations | 1x16, 2x8 |
| Processor codename | Ivy Bridge |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Core i3-3200 Desktop Series |
| Processor socket | LGA 1155 (Socket H2) |
| Processor threads | 4 |
| Supported instruction sets | AVX, SSE4.1, SSE4.2 |
| Tcase | 65.3 °C |
| Thermal Monitoring Technologies | Yes |
| Thermal solution specification | PCG 2011C |
| Conflict-Free processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR3-SDRAM |
| Memory clock speed | 1333 MHz |
| Memory slots | 4 |
| Maximum internal memory | 32 GB |
Storage
| Specification | Value |
|---|---|
| Maximum storage capacity | 6 TB |
| Total storage capacity | 1 TB |
| Number of HDDs installed | 2 |
| HDD capacity | 500 GB |
| HDD interface | Serial Attached SCSI (SAS) |
| HDD speed | 7200 RPM |
| Optical drive type | DVD-RW |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics 2500 |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card ID | 0x152 |
| On-board graphics card base frequency | 650 MHz |
| On-board graphics card dynamic frequency (max) | 1050 MHz |
| Maximum graphics card memory | 8 MB |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| LAN controller | Broadcom BCM5716 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 1 |
| PCI Express slots version | 2.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Windows Server 2012 Windows Server 2012 Essentials Windows Small Business Server 2011 Windows Small Business Server 2008 Windows Server 2008 R2 Foundation SP1 Windows Server 2008 SP2, x86/x64 Windows Server 2008 R2 SP1, x64 Windows HPC Server 2008 Novell SUSE Linux Enterprise Server Red Hat Enterpri |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Rapid Storage Technology | No |
| Intel Secure Key Technology version | 0.00 |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | No |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Processor ARK ID | 65693 |
Power
| Specification | Value |
|---|---|
| Power supply | 250 W |
| Number of main power supplies | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 434 mm |
| Depth | 394.3 mm |
| Height | 42.4 mm |
Other features
| Specification | Value |
|---|---|
| Graphics card | G200eW |
| RAID controller type | H200 |
